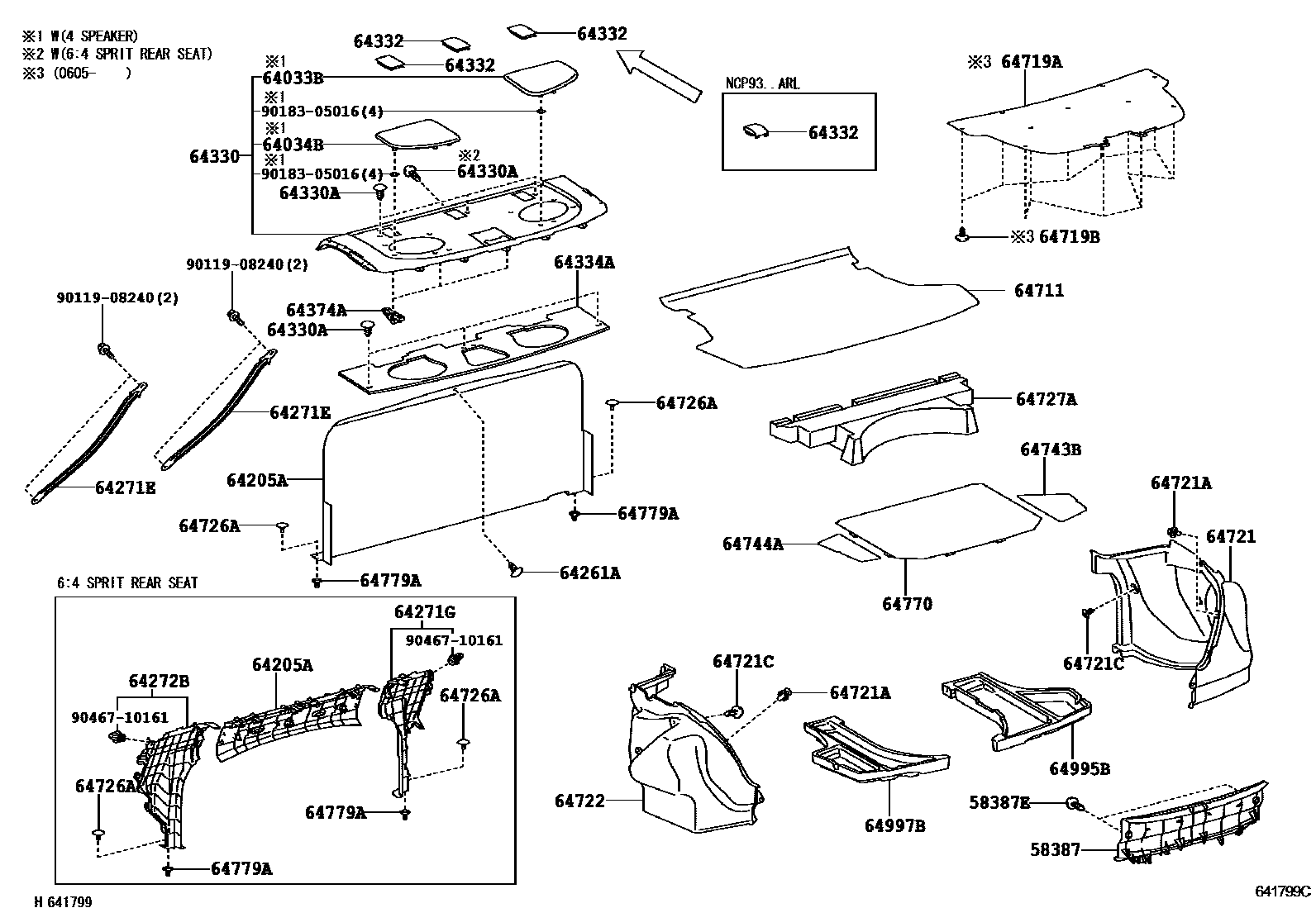

PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT
58387PLATE, REAR FLOOR FINISH
DK.GRAY,TRIM1#,4#
58387ECLIP(FOR REAR FLOOR FINISH PLATE)
64033BGRILLE SUB-ASSY, REAR SPEAKER, RH
SOUTH AFRICA SPEC&HIGH MOUNT STOP LAMP-WITH(VALVE TYPE)&AUDIO (OVERSEAS MARKET)-LMU AM/FM CD 4SPEAKER WITH(RDS),DK.GRAY,TRIM1#
SOUTH AFRICA SPEC&HIGH MOUNT STOP LAMP-WITH(VALVE TYPE)&AUDIO (OVERSEAS MARKET)-RADIO LESS 4SPEAKER,DK.GRAY,TRIM1#
SOUTH AFRICA SPEC&AUDIO (OVERSEAS MARKET)-LMU AM/FM CD 4SPEAKER WITH(RDS),DK.GRAY,TRIM1#
SOUTH AFRICA SPEC&AUDIO (OVERSEAS MARKET)-RADIO LESS 4SPEAKER,DK.GRAY,TRIM1#
HIGH MOUNT STOP LAMP-WITH(VALVE TYPE)&AUDIO (OVERSEAS MARKET)-AM/FM CD 4SPEAKER NEW MULTI,DK.GRAY,TRIM1#
HIGH MOUNT STOP LAMP-WITH(VALVE TYPE)&AUDIO (OVERSEAS MARKET)-RADIO LESS 4SPEAKER,DK.GRAY,TRIM1#
AUDIO (OVERSEAS MARKET)-AM/FM CD 4SPEAKER NEW MULTI,DK.GRAY,TRIM1#
AUDIO (OVERSEAS MARKET)-RADIO LESS 4SPEAKER,DK.GRAY,TRIM1#
SOUTH AFRICA SPEC&HIGH MOUNT STOP LAMP-WITH(VALVE TYPE)&AUDIO (OVERSEAS MARKET)-LMU AM/FM CD 4SPEAKER WITH(RDS),GREGE,TRIM4#
SOUTH AFRICA SPEC&HIGH MOUNT STOP LAMP-WITH(VALVE TYPE)&AUDIO (OVERSEAS MARKET)-RADIO LESS 4SPEAKER,GREGE,TRIM4#
SOUTH AFRICA SPEC&AUDIO (OVERSEAS MARKET)-LMU AM/FM CD 4SPEAKER WITH(RDS),GREGE,TRIM4#
SOUTH AFRICA SPEC&AUDIO (OVERSEAS MARKET)-RADIO LESS 4SPEAKER,GREGE,TRIM4#
HIGH MOUNT STOP LAMP-WITH(VALVE TYPE)&AUDIO (OVERSEAS MARKET)-AM/FM CD 4SPEAKER NEW MULTI,GREGE,TRIM4#
HIGH MOUNT STOP LAMP-WITH(VALVE TYPE)&AUDIO (OVERSEAS MARKET)-RADIO LESS 4SPEAKER,GREGE,TRIM4#
AUDIO (OVERSEAS MARKET)-AM/FM CD 4SPEAKER NEW MULTI,GREGE,TRIM4#
AUDIO (OVERSEAS MARKET)-RADIO LESS 4SPEAKER,GREGE,TRIM4#
64034BGRILLE SUB-ASSY, REAR SPEAKER, LH
SOUTH AFRICA SPEC&HIGH MOUNT STOP LAMP-WITH(VALVE TYPE)&AUDIO (OVERSEAS MARKET)-LMU AM/FM CD 4SPEAKER WITH(RDS),DK.GRAY,TRIM1#
SOUTH AFRICA SPEC&HIGH MOUNT STOP LAMP-WITH(VALVE TYPE)&AUDIO (OVERSEAS MARKET)-RADIO LESS 4SPEAKER,DK.GRAY,TRIM1#
SOUTH AFRICA SPEC&AUDIO (OVERSEAS MARKET)-LMU AM/FM CD 4SPEAKER WITH(RDS),DK.GRAY,TRIM1#
SOUTH AFRICA SPEC&AUDIO (OVERSEAS MARKET)-RADIO LESS 4SPEAKER,DK.GRAY,TRIM1#
HIGH MOUNT STOP LAMP-WITH(VALVE TYPE)&AUDIO (OVERSEAS MARKET)-AM/FM CD 4SPEAKER NEW MULTI,DK.GRAY,TRIM1#
HIGH MOUNT STOP LAMP-WITH(VALVE TYPE)&AUDIO (OVERSEAS MARKET)-RADIO LESS 4SPEAKER,DK.GRAY,TRIM1#
AUDIO (OVERSEAS MARKET)-AM/FM CD 4SPEAKER NEW MULTI,DK.GRAY,TRIM1#
AUDIO (OVERSEAS MARKET)-RADIO LESS 4SPEAKER,DK.GRAY,TRIM1#
SOUTH AFRICA SPEC&HIGH MOUNT STOP LAMP-WITH(VALVE TYPE)&AUDIO (OVERSEAS MARKET)-RADIO LESS 4SPEAKER,GREGE,TRIM4#
SOUTH AFRICA SPEC&HIGH MOUNT STOP LAMP-WITH(VALVE TYPE)&AUDIO (OVERSEAS MARKET)-LMU AM/FM CD 4SPEAKER WITH(RDS),GREGE,TRIM4#
SOUTH AFRICA SPEC&AUDIO (OVERSEAS MARKET)-LMU AM/FM CD 4SPEAKER WITH(RDS),GREGE,TRIM4#
SOUTH AFRICA SPEC&AUDIO (OVERSEAS MARKET)-RADIO LESS 4SPEAKER,GREGE,TRIM4#
HIGH MOUNT STOP LAMP-WITH(VALVE TYPE)&AUDIO (OVERSEAS MARKET)-AM/FM CD 4SPEAKER NEW MULTI,GREGE,TRIM4#
HIGH MOUNT STOP LAMP-WITH(VALVE TYPE)&AUDIO (OVERSEAS MARKET)-RADIO LESS 4SPEAKER,GREGE,TRIM4#
AUDIO (OVERSEAS MARKET)-AM/FM CD 4SPEAKER NEW MULTI,GREGE,TRIM4#
AUDIO (OVERSEAS MARKET)-RADIO LESS 4SPEAKER,GREGE,TRIM4#
64205ACOVER SUB-ASSY, ROOM PARTITION
BLACK
REAR SEAT-6:4 FOLD ARMREST, WITH(ANTITHEFT LOCK),DK.GRAY,TRIM1#,4#
REAR SEAT-6:4 FOLD ARMREST,DK.GRAY,TRIM1#,4#
DK.GRAY,TRIM1#,4#
DK.GRAY,TRIM1#
ASH BROWN,TRIM4#
64261ACLIP(FOR ROOM PARTITION GARNISH)
64271EPANEL, ROOM PARTITION
REAR SEAT-6:4 FOLD ARMREST
REAR SEAT-6:4 FOLD ARMREST, WITH(ANTITHEFT LOCK)
REAR SEAT-6:4 FOLD ARMREST, W(ANTITHEFT LOCK)
64271GBOARD, ROOM PARTITION, RH
DK.GRAY,TRIM1#,4#
REAR SEAT-6:4 FOLD ARMREST,DK.GRAY,TRIM1#,4#
REAR SEAT-6:4 FOLD ARMREST, WITH(ANTITHEFT LOCK),DK.GRAY,TRIM1#,4#
DK.GRAY,TRIM1#
ASH BROWN,TRIM4#
64272BBOARD, ROOM PARTITION, LH
DK.GRAY,TRIM1#,4#
REAR SEAT-6:4 FOLD ARMREST,DK.GRAY,TRIM1#,4#
REAR SEAT-6:4 FOLD ARMREST, WITH(ANTITHEFT LOCK),DK.GRAY,TRIM1#,4#
DK.GRAY,TRIM1#
ASH BROWN,TRIM4#
64330PANEL ASSY, PACKAGE TRAY TRIM
HIGH MOUNT STOP LAMP-WITH(VALVE TYPE)&AUDIO (OVERSEAS MARKET)-AM/FM CD 4SPEAKER NEW MULTI,BLACK,TRIM1#
BLACK,TRIM1#
SOUTH AFRICA SPEC&HIGH MOUNT STOP LAMP-WITH(VALVE TYPE)&AUDIO (OVERSEAS MARKET)-LMU AM/FM CD 4SPEAKER WITH(RDS),BLACK,TRIM1#
SOUTH AFRICA SPEC&HIGH MOUNT STOP LAMP-WITH(VALVE TYPE)&AUDIO (OVERSEAS MARKET)-RADIO LESS 4SPEAKER,BLACK,TRIM1#
HIGH MOUNT STOP LAMP-WITH(VALVE TYPE)&AUDIO (OVERSEAS MARKET)-RADIO LESS 4SPEAKER,BLACK,TRIM1#
SOUTH AFRICA SPEC&HIGH MOUNT STOP LAMP-WITH(VALVE TYPE)&AUDIO (OVERSEAS MARKET)-LMU AM/FM CD 4SPEAKER WITH(RDS),GREGE,TRIM4#
SOUTH AFRICA SPEC&HIGH MOUNT STOP LAMP-WITH(VALVE TYPE)&AUDIO (OVERSEAS MARKET)-RADIO LESS 4SPEAKER,GREGE,TRIM4#
HIGH MOUNT STOP LAMP-WITH(VALVE TYPE)&AUDIO (OVERSEAS MARKET)-AM/FM CD 4SPEAKER NEW MULTI,GREGE,TRIM4#
HIGH MOUNT STOP LAMP-WITH(VALVE TYPE)&AUDIO (OVERSEAS MARKET)-RADIO LESS 4SPEAKER,GREGE,TRIM4#
GREGE,TRIM4#
SOUTH AFRICA SPEC,BLACK,TRIM1#
BLACK,TRIM1#
SOUTH AFRICA SPEC,GREGE,TRIM4#
GREGE,TRIM4#
BLACK,TRIM1#
GREGE,TRIM4#
BLACK,TRIM1#
GREGE,TRIM4#
64330ACLIP(FOR PACKAGE TRAY TRIM PANEL)
REAR SEAT-6:4 FOLD ARMREST,DK.GRAY,TRIM1#
REAR SEAT-6:4 FOLD ARMREST, WITH(ANTITHEFT LOCK),DK.GRAY,TRIM1#
REAR SEAT-6:4 FOLD ARMREST, W(ANTITHEFT LOCK),DK.GRAY,TRIM1#
REAR SEAT-6:4 FOLD ARMREST, WITH(ANTITHEFT LOCK),GREGE,TRIM4#
REAR SEAT-6:4 FOLD ARMREST, W(ANTITHEFT LOCK),GREGE,TRIM4#
64332COVER, PACKAGE TRAY TRIM
HIGH MOUNT STOP LAMP-WITH(VALVE TYPE)&AUDIO (OVERSEAS MARKET)-RADIO LESS 4SPEAKER,DK.GRAY,TRIM1#
SOUTH AFRICA SPEC&HIGH MOUNT STOP LAMP-WITH(VALVE TYPE)&AUDIO (OVERSEAS MARKET)-LMU AM/FM CD 4SPEAKER WITH(RDS),DK.GRAY,TRIM1#
SOUTH AFRICA SPEC&HIGH MOUNT STOP LAMP-WITH(VALVE TYPE)&AUDIO (OVERSEAS MARKET)-RADIO LESS 4SPEAKER,DK.GRAY,TRIM1#
SOUTH AFRICA SPEC&AUDIO (OVERSEAS MARKET)-LMU AM/FM CD 4SPEAKER WITH(RDS),DK.GRAY,TRIM1#
SOUTH AFRICA SPEC&AUDIO (OVERSEAS MARKET)-RADIO LESS 4SPEAKER,DK.GRAY,TRIM1#
HIGH MOUNT STOP LAMP-WITH(VALVE TYPE)&AUDIO (OVERSEAS MARKET)-AM/FM CD 4SPEAKER NEW MULTI,DK.GRAY,TRIM1#
AUDIO (OVERSEAS MARKET)-AM/FM CD 4SPEAKER NEW MULTI,DK.GRAY,TRIM1#
AUDIO (OVERSEAS MARKET)-RADIO LESS 4SPEAKER,DK.GRAY,TRIM1#
GCC BUSINESS PACKAGE&HIGH MOUNT STOP LAMP-WITH(VALVE TYPE),DK.GRAY,TRIM1#
GCC BUSINESS PACKAGE&HIGH MOUNT STOP LAMP-WITH(VALVE TYPE)&AUDIO (OVERSEAS MARKET)-AM/FM CD 4SPEAKER NEW MULTI,DK.GRAY,TRIM1#
GCC BUSINESS PACKAGE&HIGH MOUNT STOP LAMP-WITH(VALVE TYPE)&AUDIO (OVERSEAS MARKET)-RADIO LESS 4SPEAKER,DK.GRAY,TRIM1#
REAR SEAT BELT-ELR X3&AUDIO (OVERSEAS MARKET)-RADIO LESS 4SPEAKER,BLACK,TRIM1#
REAR SEAT BELT-ELR X3&AUDIO (OVERSEAS MARKET)-AM/FM CD 4SPEAKER NEW MULTI,BLACK,TRIM1#
HIGH MOUNT STOP LAMP-WITH(VALVE TYPE)&REAR SEAT BELT-ELR X3&AUDIO (OVERSEAS MARKET)-AM/FM CD 4SPEAKER USA EXTRA,BLACK,TRIM1#
REAR SEAT BELT-ELR X3&AUDIO (OVERSEAS MARKET)-AM/FM CD 4SPEAKER USA EXTRA,BLACK,TRIM1#
GCC BUSINESS PACKAGE&HIGH MOUNT STOP LAMP-WITH(VALVE TYPE),BLACK,TRIM1#
HIGH MOUNT STOP LAMP-WITH(VALVE TYPE)&REAR SEAT BELT-ELR X3&AUDIO (OVERSEAS MARKET)-AM/FM CD 4SPEAKER NEW MULTI,BLACK,TRIM1#
HIGH MOUNT STOP LAMP-WITH(VALVE TYPE)&REAR SEAT BELT-ELR X3&AUDIO (OVERSEAS MARKET)-RADIO LESS 4SPEAKER,BLACK,TRIM1#
HIGH MOUNT STOP LAMP-WITH(VALVE TYPE)&AUDIO (OVERSEAS MARKET)-AM/FM CD 4SPEAKER NEW MULTI,GREGE,TRIM4#
AUDIO (OVERSEAS MARKET)-AM/FM CD 4SPEAKER NEW MULTI,GREGE,TRIM4#
AUDIO (OVERSEAS MARKET)-RADIO LESS 4SPEAKER,GREGE,TRIM4#
SOUTH AFRICA SPEC&HIGH MOUNT STOP LAMP-WITH(VALVE TYPE)&AUDIO (OVERSEAS MARKET)-LMU AM/FM CD 4SPEAKER WITH(RDS),GREGE,TRIM4#
SOUTH AFRICA SPEC&HIGH MOUNT STOP LAMP-WITH(VALVE TYPE)&AUDIO (OVERSEAS MARKET)-RADIO LESS 4SPEAKER,GREGE,TRIM4#
SOUTH AFRICA SPEC&AUDIO (OVERSEAS MARKET)-LMU AM/FM CD 4SPEAKER WITH(RDS),GREGE,TRIM4#
SOUTH AFRICA SPEC&AUDIO (OVERSEAS MARKET)-RADIO LESS 4SPEAKER,GREGE,TRIM4#
HIGH MOUNT STOP LAMP-WITH(VALVE TYPE)&AUDIO (OVERSEAS MARKET)-RADIO LESS 4SPEAKER,GREGE,TRIM4#
GCC BUSINESS PACKAGE&HIGH MOUNT STOP LAMP-WITH(VALVE TYPE),GREGE,TRIM4#
64334APAD, PACKAGE TRAY TRIM
AUDIO (OVERSEAS MARKET)-AM/FM CD 4SPEAKER NEW MULTI
SOUTH AFRICA SPEC&HIGH MOUNT STOP LAMP-WITH(VALVE TYPE)&AUDIO (OVERSEAS MARKET)-LMU AM/FM CD 4SPEAKER WITH(RDS)
SOUTH AFRICA SPEC&HIGH MOUNT STOP LAMP-WITH(VALVE TYPE)&AUDIO (OVERSEAS MARKET)-RADIO LESS 4SPEAKER
SOUTH AFRICA SPEC&AUDIO (OVERSEAS MARKET)-LMU AM/FM CD 4SPEAKER WITH(RDS)
SOUTH AFRICA SPEC&AUDIO (OVERSEAS MARKET)-RADIO LESS 4SPEAKER
HIGH MOUNT STOP LAMP-WITH(VALVE TYPE)&AUDIO (OVERSEAS MARKET)-AM/FM CD 4SPEAKER NEW MULTI
HIGH MOUNT STOP LAMP-WITH(VALVE TYPE)&AUDIO (OVERSEAS MARKET)-RADIO LESS 4SPEAKER
AUDIO (OVERSEAS MARKET)-RADIO LESS 4SPEAKER
64374ASUPPORT, PACKAGE TRAY TRIM
64711MAT, LUGGAGE COMPARTMENT FLOOR
DARK GRAY,TRIM1#,4#
DARK GRAY,TRIM1#,4#
REAR SEAT-6:4 FOLD ARMREST, WITH(ANTITHEFT LOCK),DARK GRAY,TRIM1#,4#
REAR SEAT-6:4 FOLD ARMREST,DARK GRAY,TRIM1#,4#
REAR SEAT-6:4 FOLD ARMREST, W(ANTITHEFT LOCK),DARK GRAY,TRIM1#,4#
64719ACOVER, LUGGAGE COMPARTMENT DOOR
BLACK,TRIM1#,4#
GCC BUSINESS PACKAGE,BLACK,TRIM1#,4#
64719BCLIP(FOR LUGGAGE COMPARTMENT DOOR)
64721COVER, LUGGAGE COMPARTMENT TRIM, INNER RH
BLACK,TRIM1#,4#
64721ACLIP(FOR LUGGAGE COMPARTMENT TRIM INNER COVER)
64721CCLIP(LUGGAGE COMPARTMENT)
64722COVER, LUGGAGE COMPARTMENT TRIM, INNER LH
BLACK,TRIM1#,4#
64726ACLIP, LUGGAGE TRIM, REAR
DK.GRAY,TRIM1#,4#
64727APAD, LUGGAGE COMPARTMENT TRIM, INNER
REAR SEAT-6:4 FOLD ARMREST, WITH(ANTITHEFT LOCK)
REAR SEAT-6:4 FOLD ARMREST
64743BDOOR, DECK SIDE BOX, RH
64744ADOOR, DECK SIDE BOX, LH
64779ASTOPPER, SPARE WHEEL COVER
64995BBOX, DECK FLOOR, RH
64997BBOX, DECK FLOOR, LH
9011908240
9018305016
9046710161
32 parts on this diagram · 1 diagram in section
