INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING

61719CBRACKET, ROOF SIDE RAIL, RH

main61719-52050iNCP92..GEN;NCP93..ARL200601-200808

SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN

61729BBRACKET, ROOF SIDE RAIL, LH

main61729-52060iNCP92..GEN;NCP93..ARL200601-200808

SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN

62111CBOARD, COWL SIDE TRIM, RH

main62111-52120-B0iNCP9#200601-200808

DK.GRAY,TRIM1#,4#

main62111-52120-B0iNCP9#200808-201607

DK.GRAY,TRIM1#

main62111-52120-E0iNCP9#200808-201607

ASH BROWN,TRIM4#

62112BOARD, COWL SIDE TRIM, LH

main62112-52160-B0iNCP9#..RHD200808-201607

DK.GRAY,TRIM1#

main62112-52160-B0iNCP9#..RHD200601-200808

DK.GRAY,TRIM1#,4#

main62112-52160-E0iNCP9#..RHD200808-201607

ASH BROWN,TRIM4#

main62112-52170-B0iNCP9#..LHD200808-201307

DK.GRAY,TRIM1#

main62112-52170-B0iNCP9#..LHD200601-200808

DK.GRAY,TRIM1#,4#

main62112-52170-E0iNCP9#..LHD200808-201307

ASH BROWN,TRIM4#

62155CBRACKET, CURTAIN SHIELD AIRBAG, RH

main62155-52050iNCP92..GEN;NCP93..ARL200601-200808

SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN

62156BBRACKET, CURTAIN SHIELD AIRBAG, LH

main62156-52030iNCP92..GEN;NCP93..ARL200808

SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN

62170AAIRBAG ASSY, CURTAIN SHIELD, RH

main62170-52040iNCP92..GEN;NCP93..ARL200601-200808

SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN

62180AAIRBAG ASSY, CURTAIN SHIELD, LH

main62180-52040iNCP92..GEN;NCP93..ARL200601-200808

SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN

62211GARNISH, FRONT PILLAR, RH

main62211-52180-B0iNCP9#200601-200610

GRAY,TRIM1#

sub62211-52181

sub62211-52180

main62211-52180-E0iNCP9#200601-200610

GREGE,TRIM4#

sub62211-52181

sub62211-52180

main62211-52181-B0iNCP9#200610-201607

GRAY,TRIM1#

main62211-52181-E0iNCP9#200610-201607

GREGE,TRIM4#

main62211-52190-B0iNCP92..GEN;NCP93..ARL200601-200610

SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN,GRAY,TRIM1#

sub62211-52192

sub62211-52190

main62211-52190-E0iNCP92..GEN;NCP93..ARL200601-200610

SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN,GREGE,TRIM4#

sub62211-52192

sub62211-52190

main62211-52191-B0iNCP92..GEN;NCP93..ARL200808-201202

SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN,GRAY,TRIM1#

sub62211-52192

main62211-52191-E0iNCP92..GEN;NCP93..ARL200808-201202

SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN,GREGE,TRIM4#

sub62211-52192

main62211-52192-B0iNCP92..GEN;NCP93..ARL201203-201607

SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN,GRAY,TRIM1#

main62211-52192-E0iNCP92..GEN;NCP93..ARL201203-201607

SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN,GREGE,TRIM4#

62211TCLIP(FOR FRONT PILLAR GARNISH)

main90467-10161iNCP9#200601-200810

main90467-10188iNCP9#200811

main62217-52070iNCP92..GEN;NCP93..ARL200601-200808

SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN

main62217-52130iNCP92..GEN;NCP93..ARL201203

SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN

62212GARNISH, FRONT PILLAR, LH

main62212-52180-B0iNCP9#200601-200610

GRAY,TRIM1#

sub62212-52181

sub62212-52180

main62212-52180-E0iNCP9#200601-200610

GREGE,TRIM4#

sub62212-52181

sub62212-52180

main62212-52181-B0iNCP9#200610-201607

GRAY,TRIM1#

main62212-52181-E0iNCP9#200610-201607

GREGE,TRIM4#

main62212-52190-B0iNCP92..GEN;NCP93..ARL200601-200610

SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN,GRAY,TRIM1#

sub62212-52192

sub62212-52190

main62212-52190-E0iNCP92..GEN;NCP93..ARL200601-200610

SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN,GREGE,TRIM4#

sub62212-52192

sub62212-52190

main62212-52191-B0iNCP92..GEN;NCP93..ARL200610-200808

SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN,GRAY,TRIM1#

sub62212-52192

main62212-52191-E0iNCP92..GEN;NCP93..ARL200808-201202

SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN,GREGE,TRIM4#

sub62212-52192

main62212-52192-B0iNCP92..GEN;NCP93..ARL201203-201607

SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN,GRAY,TRIM1#

main62212-52192-E0iNCP92..GEN;NCP93..ARL201203-201607

SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN,GREGE,TRIM4#

62311BWEATHERSTRIP, FRONT DOOR OPENING TRIM, RH

main62311-52170-B0iNCP9#200601-200808

DK.GRAY,TRIM1#,4#

main62311-52170-B0iNCP9#200808-201607

DK.GRAY,TRIM1#

main62311-52170-E0iNCP9#200808-201607

ASH BROWN,TRIM4#

62312BWEATHERSTRIP, FRONT DOOR OPENING TRIM, LH

main62312-52140-B0iNCP9#200601-200808

DK.GRAY,TRIM1#,4#

main62312-52140-B0iNCP9#200808-201607

DK.GRAY,TRIM1#

main62312-52140-E0iNCP9#200808-201607

ASH BROWN,TRIM4#

62331AWEATHERSTRIP, REAR DOOR OPENING TRIM, RH

main62331-52060-B0iNCP9#200601-200808

DK.GRAY,TRIM1#,4#

main62331-52060-B0iNCP9#200808-201607

DK.GRAY,TRIM1#

main62331-52060-E0iNCP9#200808-201607

ASH BROWN,TRIM4#

62332AWEATHERSTRIP, REAR DOOR OPENING TRIM, LH

main62332-52080-B0iNCP9#200808-201607

DK.GRAY,TRIM1#

main62332-52080-B0iNCP9#200601-200808

DK.GRAY,TRIM1#,4#

main62332-52080-E0iNCP9#200808-201607

ASH BROWN,TRIM4#

62401ACLIP (FOR CENTER PILLAR GARNISH PANEL, UPPER)

main90467-10161iNCP9#200601-200808

62411BGARNISH, CENTER PILLAR, UPPER RH

main62411-52150-B0iNCP9#200601-201607

GRAY,TRIM1#

main62411-52150-E0iNCP9#200601-201607

GREGE,TRIM4#

62412BGARNISH, CENTER PILLAR, UPPER LH

main62412-52150-B0iNCP9#200601-201607

GRAY,TRIM1#

main62412-52150-E0iNCP9#200601-201607

GREGE,TRIM4#

62413AGARNISH, CENTER PILLAR, LOWER RH

main62413-52110-B0iNCP9#200601-200808

DK.GRAY,TRIM1#,4#

main62413-52110-B0iNCP9#200808-201607

DK.GRAY,TRIM1#

main62413-52110-E0iNCP9#200808-201607

ASH BROWN,TRIM4#

62413CCLIP (FOR CENTER LOWER GARNISH)

main90467-10161iNCP9#200601-200808

62414AGARNISH, CENTER PILLAR, LOWER LH

main62414-52110-B0iNCP9#200601-200808

DK.GRAY,TRIM1#,4#

main62414-52110-B0iNCP9#200808-201607

DK.GRAY,TRIM1#

main62414-52110-E0iNCP9#200808-201607

ASH BROWN,TRIM4#

62461HCLIP (FOR ROOF SIDE INNER GARNISH)

main90467-10167iNCP9#200601-200808

62471AGARNISH, ROOF SIDE, INNER RH

main62471-52250-B0iNCP9#200601-201607

GRAY,TRIM1#

main62471-52250-E0iNCP9#200601-201607

GREGE,TRIM4#

main62471-52260-B0iNCP92..GEN;NCP93..ARL200601-200808

SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN,GRAY,TRIM1#

main62471-52260-E0iNCP92..GEN;NCP93..ARL200808-201607

SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN,GREGE,TRIM4#

62471JCLIP (FOR ROOF SIDE GARNISH)

main90467-10161iNCP92..GEN;NCP93..ARL200601-200808

SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN

62472AGARNISH, ROOF SIDE, INNER LH

main62472-52300-B0iNCP9#200601-201607

GRAY,TRIM1#

main62472-52300-E0iNCP9#200601-201607

GREGE,TRIM4#

main62472-52310-B0iNCP92..GEN;NCP93..ARL200808-201607

SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN,GRAY,TRIM1#

main62472-52310-E0iNCP92..GEN;NCP93..ARL200808-201607

SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN,GREGE,TRIM4#

62551ACOVER, REAR SEAT SIDE, RH

main62551-52170-B0iNCP9#200601-200808

DK.GRAY,TRIM1#,4#

main62551-52170-B0iNCP9#200808-201607

DK.GRAY,TRIM1#

main62551-52170-E0iNCP9#200808-201607

ASH BROWN,TRIM4#

62552ACOVER, REAR SEAT SIDE, LH

main62552-52070-B0iNCP9#200601-200808

DK.GRAY,TRIM1#,4#

main62552-52070-B0iNCP9#200808-201607

DK.GRAY,TRIM1#

main62552-52070-E0iNCP9#200808-201607

ASH BROWN,TRIM4#

67913PLATE, FRONT DOOR SCUFF, RH

main67913-52150-B0iNCP9#200601-200808

DK.GRAY,TRIM1#,4#

main67913-52150-B0iNCP9#200808-201607

DK.GRAY,TRIM1#

main67913-52150-E0iNCP9#200808-201607

ASH BROWN,TRIM4#

67914PLATE, FRONT DOOR SCUFF, LH

main67914-52160-B0iNCP9#200601-200808

DK.GRAY,TRIM1#,4#

main67914-52160-B0iNCP9#200808-201607

DK.GRAY,TRIM1#

main67914-52160-E0iNCP9#200808-201607

ASH BROWN,TRIM4#

67917APLATE, REAR DOOR SCUFF, RH

main67917-52170-B0iNCP9#200601-200808

DK.GRAY,TRIM1#,4#

main67917-52170-B0iNCP9#200808-201607

DK.GRAY,TRIM1#

main67917-52170-E0iNCP9#200808-201607

ASH BROWN,TRIM4#

67918APLATE, REAR DOOR SCUFF, LH

main67918-52180-B0iNCP9#200601-200808

DK.GRAY,TRIM1#,4#

main67918-52180-B0iNCP9#200808-201607

DK.GRAY,TRIM1#

main67918-52180-E0iNCP9#200808-201607

ASH BROWN,TRIM4#

67924ACLAMP, DOOR SCUFF PLATE, NO.2

main67924-52140iNCP9#200601-200808

9011906869

main90119-06869

9046710161

main90467-10161

9046710167

main90467-10167

9095008006

main90950-08006

9095009001

main90950-09001

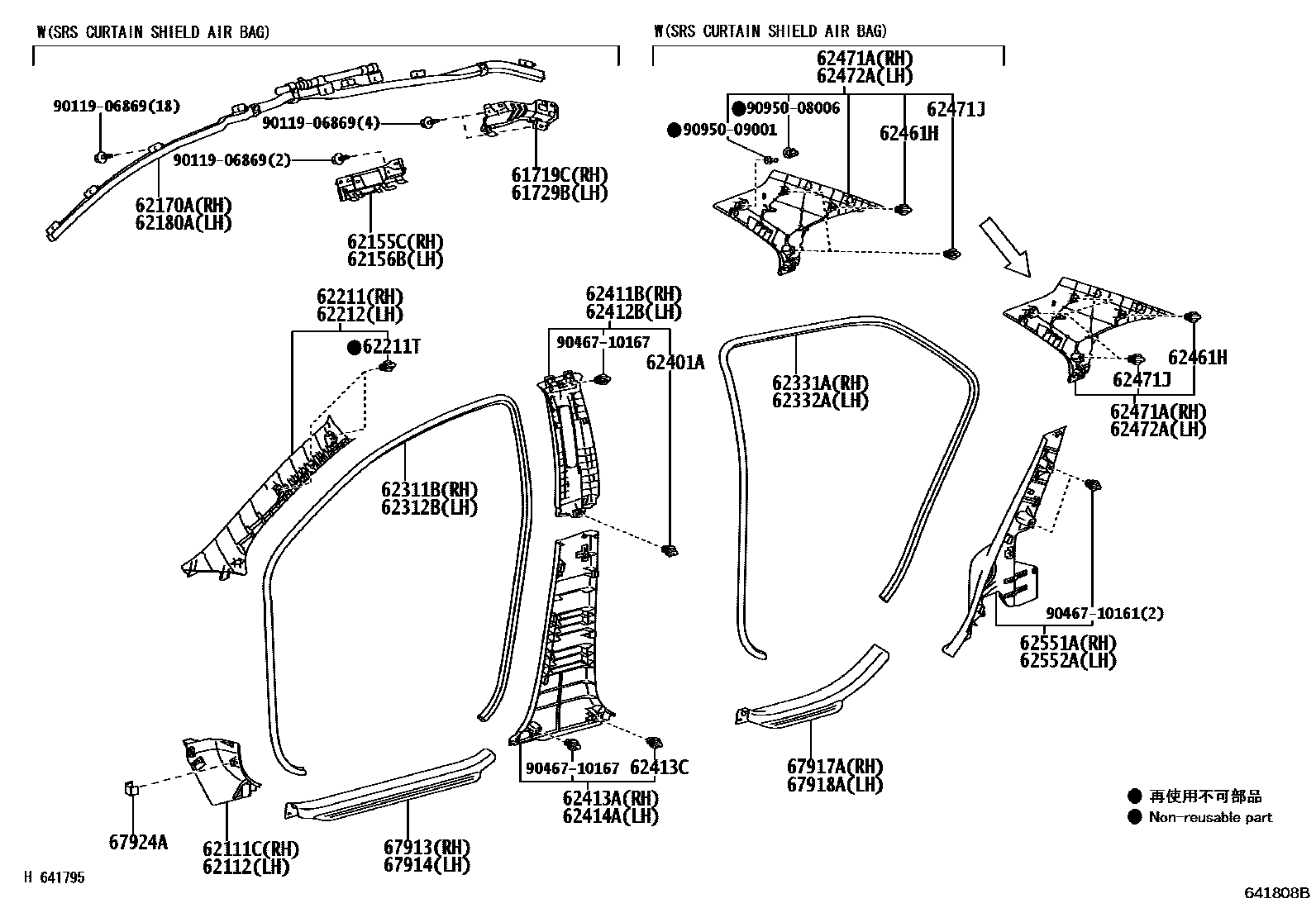

37 parts on this diagram · 1 diagram in section
