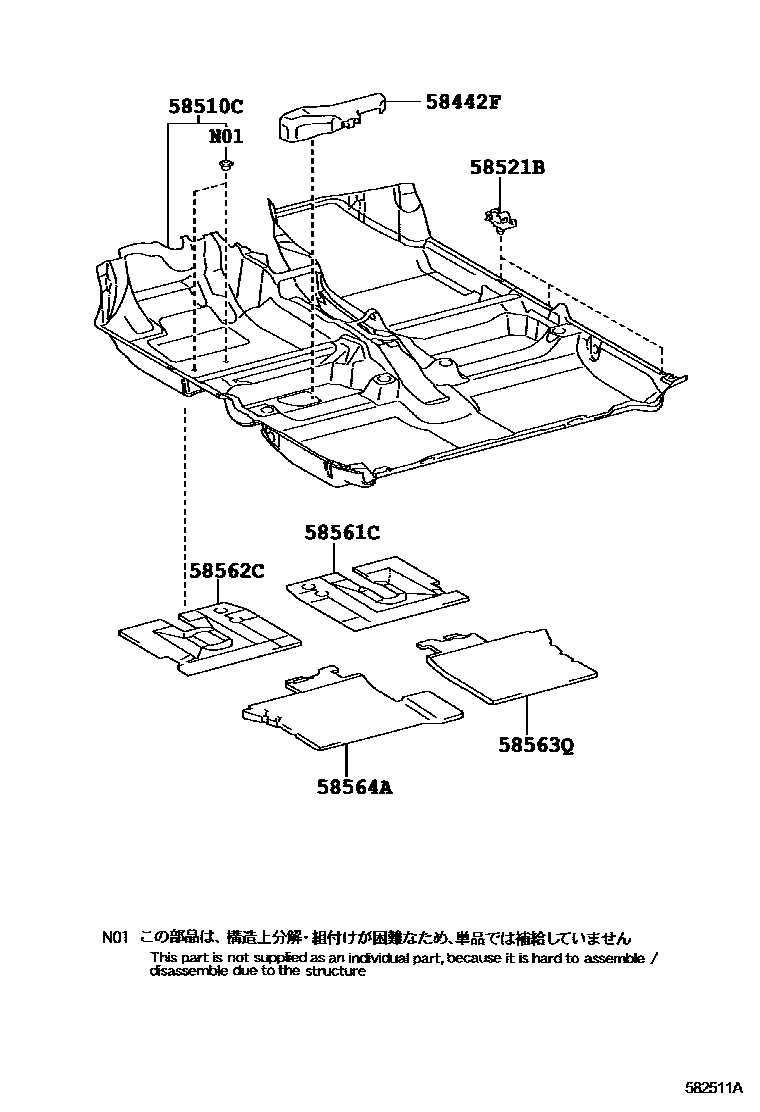

MAT & CARPET

0001 1 0002 1

58442FCOVER, JACK

main58442-52060iNCP9#¥2,030200601-200808

58510CCARPET ASSY, FRONT FLOOR, FRONT

main58510-52C50-B0iNCP9#..RHD200808-201107

DK. GREY,TRIM1#

sub58510-52C51

main58510-52C50-B0iNCP9#..RHD200601-200808

DK. GREY,TRIM1#,4#

sub58510-52C51

main58510-52C50-E0iNCP9#..RHD200808-201107

GREGE,TRIM4#

sub58510-52C51

main58510-52C51-B0iNCP9#..RHD201108-201607

DK. GREY,TRIM1#

main58510-52C51-E0iNCP9#..RHD201108-201607

GREGE,TRIM4#

main58510-52C60-B0iNCP9#..LHD200601-200608

DK. GREY,TRIM1#,4#

main58510-52C61-B0iNCP9#..LHD200608-200808

DK. GREY,TRIM1#,4#

sub58510-52C62

main58510-52C61-B0iNCP9#..LHD200808-201107

DK. GREY,TRIM1#

sub58510-52C62

main58510-52C61-E0iNCP9#..LHD200808-201107

GREGE,TRIM4#

sub58510-52C62

main58510-52C62-B0iNCP9#..LHD201108-201307

DK. GREY,TRIM1#

main58510-52C62-E0iNCP9#..LHD201108-201307

GREGE,TRIM4#

58521BHOOK, FLOOR CARPET

main58521-52040iNCP9#¥390200601-200808

58561CSILENCER, FRONT FLOOR, NO.1

main58561-52160iNCP9#¥2,870200601-200808

58562CSILENCER, FRONT FLOOR, NO.2

main58562-52130iNCP9#¥2,870200601-200808

58563QSILENCER, FRONT FLOOR, NO.3

main58563-52140iNCP9#¥4,160200601-200808

58564ASILENCER, FRONT FLOOR, NO.4

main58564-52140iNCP9#¥4,360200601-200808

7 parts on this diagram · 2 diagrams in section
