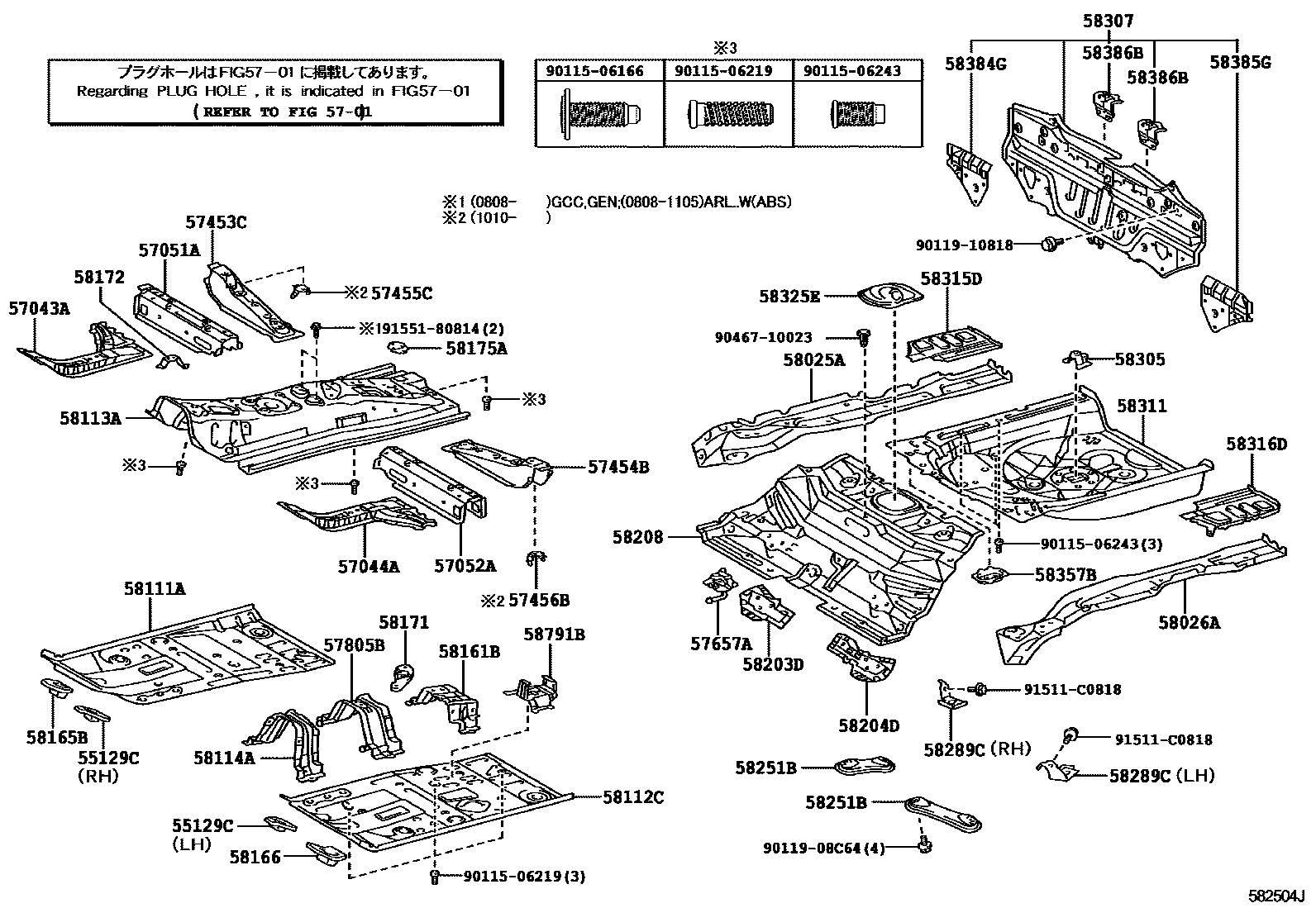

FLOOR PAN & LOWER BACK PANEL
55129CCOVER, DASH PANEL HOLE
RH
RH
LH
LH
5701
57043AREINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR RH
57044AREINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR LH
57051AMEMBER SUB-ASSY, FRONT FLOOR CROSS, RH
57052AMEMBER SUB-ASSY, FRONT FLOOR CROSS, LH
57453CMEMBER, FRONT FLOOR CROSS SIDE, RH
57454BMEMBER, FRONT FLOOR CROSS SIDE, LH
57455CBRACKET, FRONT SEAT MOUNTING, OUTSIDE RH
57456BBRACKET, FRONT SEAT MOUNTING, OUTSIDE LH
57657ABRACKET, EXHAUST PIPE MOUNTING, NO.2
57805BREINFORCEMENT SUB-ASSY, BELT ANCHOR, RH
58025APANEL SUB-ASSY, FLOOR SIDE RAIL, FR RH
58026APANEL SUB-ASSY, FLOOR SIDE RAIL, FR LH
58111APAN, FRONT FLOOR, RH
58112CPAN, FRONT FLOOR, LH
58113APANEL, FRONT FLOOR, CENTER
58161BREINFORCEMENT, BELT ANCHOR TO FLOOR PAN
58171REINFORCEMENT, PARKING BRAKE BASE
58172BRACKET, COMPUTER MOUNTING, NO.3
58175AREINFORCEMENT, PARKING BRAKE BASE, NO.1
58203DBRACKET SUB-ASSY, REAR SEAT HINGE, OUTER RH
58204DBRACKET SUB-ASSY, REAR SEAT HINGE, OUTER LH
58208PAN, CENTER FLOOR
58251BBRACE, FLOOR PANEL, FRONT
58289CBRACKET, FLOOR BRAKE HOSE, REAR
RH
RH
LH
LH
58305BRACKET SUB-ASSY, SPARE WHEEL CLAMP
58307PANEL SUB-ASSY, BODY LOWER BACK
58311PAN, REAR FLOOR
58315DEXTENSION, REAR FLOOR PAN, RH
58316DEXTENSION, REAR FLOOR PAN, LH
58325ECOVER, REAR FLOOR SERVICE HOLE
58384GGUSSET, LOWER BACK, UPPER RH
58385GGUSSET, LOWER BACK, UPPER LH
58386BBRACKET, REAR BUMPER COVER, NO.2
58791BCARRIER, JACK
9011506166
main90115-06166
9011506219
main90115-06219
9011506243
main90115-06243
9011908C64
main90119-08C64
9011910818
main90119-10818
9046710023
main90467-10023
91511C0818
main91511-C0818
9155180814
main91551-80814
48 parts on this diagram · 1 diagram in section
