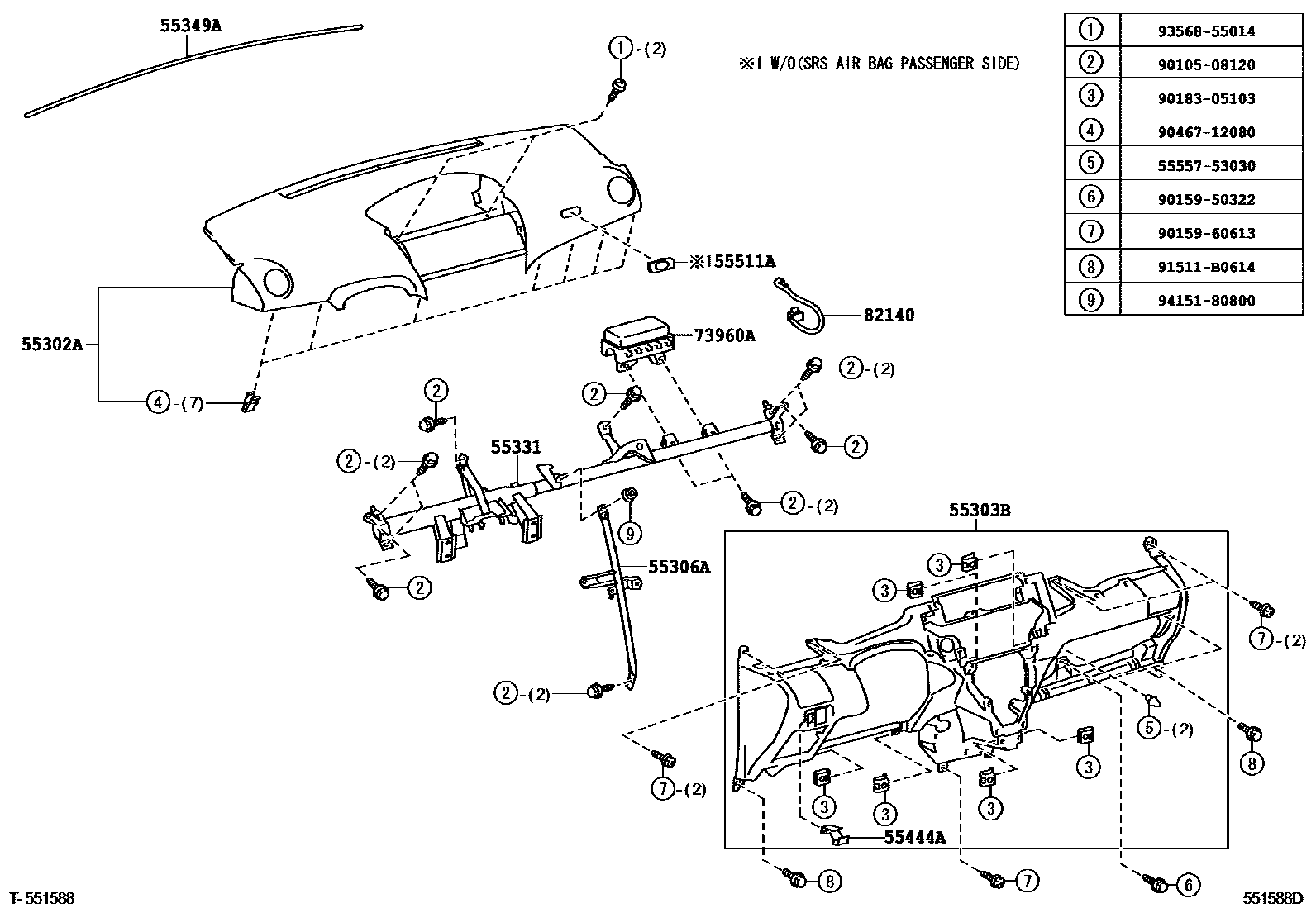

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1DRIVER SIDE 0003 1CENTER 0004 1PASSENGER SIDE 0005 1 0006 1DRIVER SIDE 0007 1CENTER 0008 1PASSENGER SIDE

55302APANEL SUB-ASSY, INSTRUMENT, UPPER

main55302-52050-B0supersedes 55302-52070-B0iNCP92..GCC200607-200608

DK.GRAY,TRIM1#,4#

main55302-52051-B0supersedes 55302-52071-B0iNCP92..LHD..GEN200608-200808

DK.GRAY,TRIM1#,4#

main55302-52051-E0iNCP92..LHD..GEN200808-201110

SRS AIR BAG-DRIVER & PASSENGER,ASH BROWN,TRIM4#

main55302-52052-B0supersedes 55302-52072-B0iNCP92..LHD..GEN201111-201307

SRS AIR BAG-DRIVER & PASSENGER,DK.GRAY,TRIM1#

main55302-52052-E0supersedes 55302-52072-E0iNCP92..LHD..GEN201111-201307

ASH BROWN,TRIM4#

main55302-52060-B0iNCP9#..RHD200601-200607

DK.GRAY,TRIM1#,4#

main55302-52061-B0iNCP9#..RHD200808-201110

DK.GRAY,TRIM1#

main55302-52061-E0iNCP9#..RHD200808-201110

ASH BROWN,TRIM4#

main55302-52062-B0iNCP9#..RHD201111-201607

DK.GRAY,TRIM1#

main55302-52062-E0iNCP9#..RHD201111-201607

ASH BROWN,TRIM4#

55303BPANEL SUB-ASSY, INSTRUMENT, LOWER

main55303-52160-B0iNCP9#..LHD200808-201110

DK.GRAY,TRIM1#

main55303-52160-E0iNCP9#..LHD200808-201110

GREGE,TRIM4#

main55303-52161-B0iNCP9#..LHD201111-201307

DK.GRAY,TRIM1#

main55303-52161-E0iNCP9#..LHD201111-201307

GREGE,TRIM4#

main55303-52170-B0iNCP9#..RHD200808-201110

DK.GRAY,TRIM1#

main55303-52170-E0iNCP9#..RHD200601-200808

GREGE,TRIM4#

main55303-52171-B0iNCP9#..RHD201111-201607

DK.GRAY,TRIM1#

main55303-52171-E0iNCP9#..RHD201111-201607

GREGE,TRIM4#

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-52160iNCP9#..LHD200601-200808

main55306-52180iNCP9#..RHD200601-200808

sub55306-52430

55331REINFORCEMENT, INSTRUMENT PANEL

main55330-52450iNCP9#..LHD200601-200808

main55330-52451iNCP9#..LHD200905-201307

main55330-52460iNCP9#..RHD200601-200808

main55330-52461iNCP9#..RHD200905

55349ACUSHION, INSTRUMENT PANEL

main55349-52060iNCP9#200601-200808

main55349-52290iNCP93201504

55444ASPRING, INSTRUMENT PANEL BOX

main55444-52260iNCP9#200601-200808

main55444-52261iNCP93201309

55511APLATE, INSTRUMENT PANEL, NAME

main55511-52050-B0iNCP9#..LHD..GEN200601-200808

DK.GRAY,TRIM1#,4#

main55511-52050-E0iNCP9#..LHD..GEN200808-201307

ASH BROWN,TRIM4#

73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR

main73960-52070iNCP92..LHD..GEN200601-200808

SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN

sub73960-52320

sub82140-52150

82140WIRE ASSY, INSTRUMENT PANEL

main82140-52020iNCP92..LHD..GEN200601-200808

SRS AIR BAG-DRIVER & PASSENGER & SIDE & CURTAIN

5555753030BRACKET, LUGGAGE DOOR OPENING VALVE

main55557-53030

9010508120

main90105-08120

9015950322

main90159-50322

9015960613

main90159-60613

9018305103

main90183-05103

9046712080

main90467-12080

91511B0614

main91511-B0614

9356855014

main93568-55014

9415180800

main94151-80800

18 parts on this diagram · 8 diagrams in section
