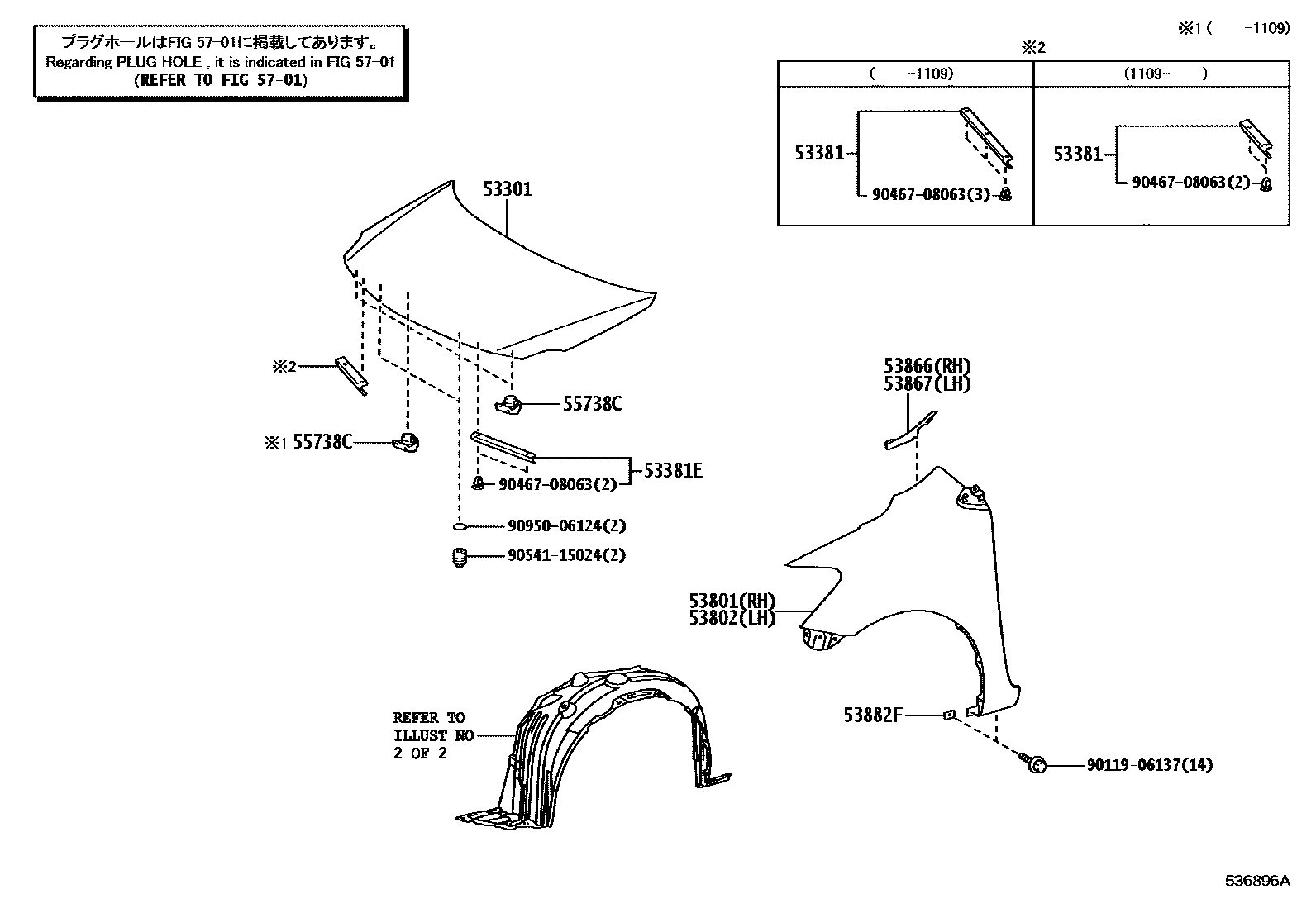

HOOD & FRONT FENDER

0001 1 0002 1FENDER LINER

53301HOOD SUB-ASSY

main53301-52260iNCP9#200601-200612

main53301-52261iNCP9#200701-200808

sub53301-52251

53381SEAL, HOOD TO RADIATOR SUPPORT

main53381-52040iNCP9#201109

main53381-52050iNCP9#200708-200808

53381ESEAL, HOOD TO RADIATOR SUPPORT

main53381-52040iNCP9#200601-200808

53801FENDER SUB-ASSY, FRONT RH

main53811-52230supersedes 53811-52240iNCP93..ARL201108-201607

main53811-52240iNCP9#200601-200808

53802FENDER SUB-ASSY, FRONT LH

main53812-52230supersedes 53812-52240iNCP93..ARL201108-201607

main53812-52240iNCP9#200601-200808

53866SEAL, FRONT FENDER TO COWL SIDE, RH

main53866-52120iNCP9#200601-200808

53867SEAL, FRONT FENDER TO COWL SIDE, LH

main53867-52110iNCP9#200601-200808

53882FSEAL, FRONT FENDER

main53882-16030×8iNCP9#200601-200807

55738CSTOPPER, HOOD, RH

main55738-52050×3iNCP9#200601-200808

5701

9011906137

main90119-06137

9046708063

main90467-08063

9054115024

main90541-15024

9095006124

main90950-06124

14 parts on this diagram · 2 diagrams in section
