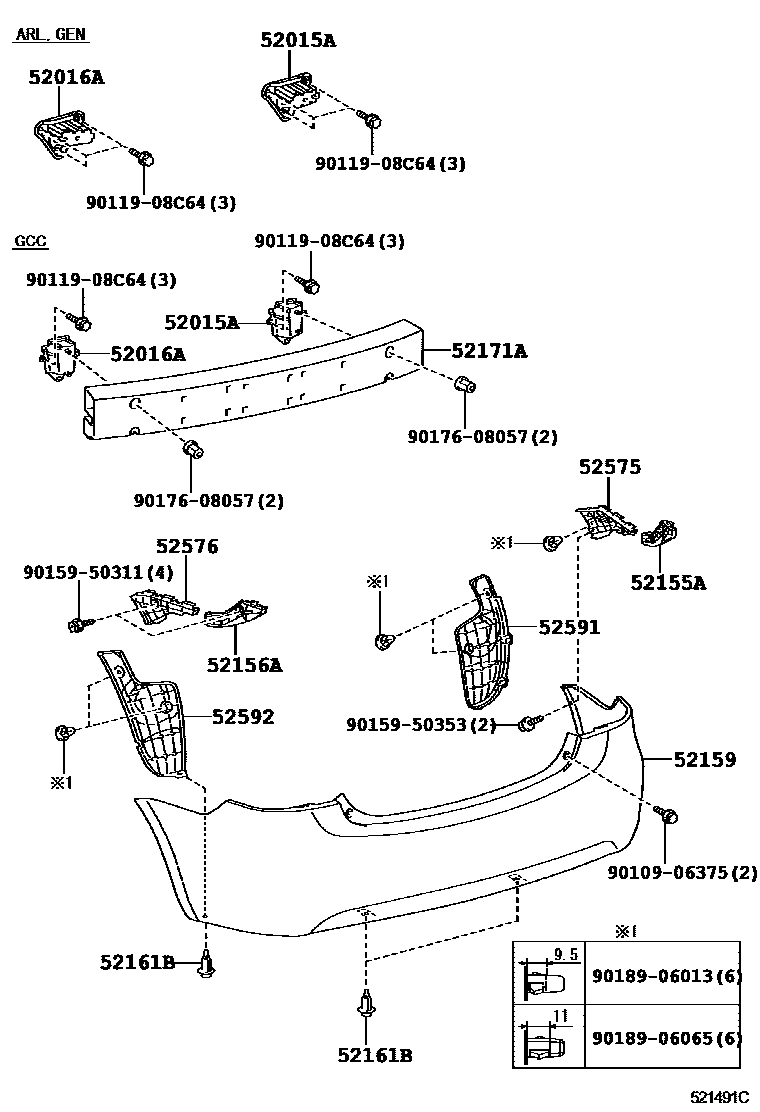

REAR BUMPER & BUMPER STAY

52015AARM SUB-ASSY, REAR BUMPER, RH

main52015-52050iNCP9#..ARL,GEN200601-200808

main52015-52070iNCP9#..GCC200601-200808

52016AARM SUB-ASSY, REAR BUMPER, LH

main52016-52060iNCP9#..ARL,GEN200808

main52016-52080iNCP9#..GCC200808-201307

52155ASUPPORT, REAR BUMPER SIDE, RH

main52155-52090iNCP9#200601-200808

main52155-52091iNCP9#201205

52156ASUPPORT, REAR BUMPER SIDE, LH

main52156-52090iNCP9#200601-200808

main52156-52091iNCP9#201205

52159COVER, REAR BUMPER

main52159-52929iNCP9#200601-200808

PAINT REQ.

52161BPIECE, REAR BUMPER

main52161-16010×4iNCP9#200601-200808

sub52161-0K040

52171AREINFORCEMENT, REAR BUMPER, NO.1

main52171-52090iNCP9#..GCC200601-200808

52575RETAINER, REAR BUMPER SIDE, RH

main52575-52140iNCP9#200601-200808

main52575-52141iNCP9#200908-201204

main52575-52142iNCP9#201205

52576RETAINER, REAR BUMPER SIDE, LH

main52576-52120iNCP9#200601-200808

main52576-52121iNCP9#200908-201204

main52576-52122iNCP9#201205

52591SEAL, REAR BUMPER SIDE, RH

main52591-52230iNCP9#200601-200808

52592SEAL, REAR BUMPER SIDE, LH

main52592-52220iNCP9#200601-200808

9010906375

main90109-06375

9011908C64

main90119-08C64

9015950311

main90159-50311

9015950353

main90159-50353

9017608057

main90176-08057

9018906013

main90189-06013

9018906065

main90189-06065

18 parts on this diagram · 1 diagram in section
