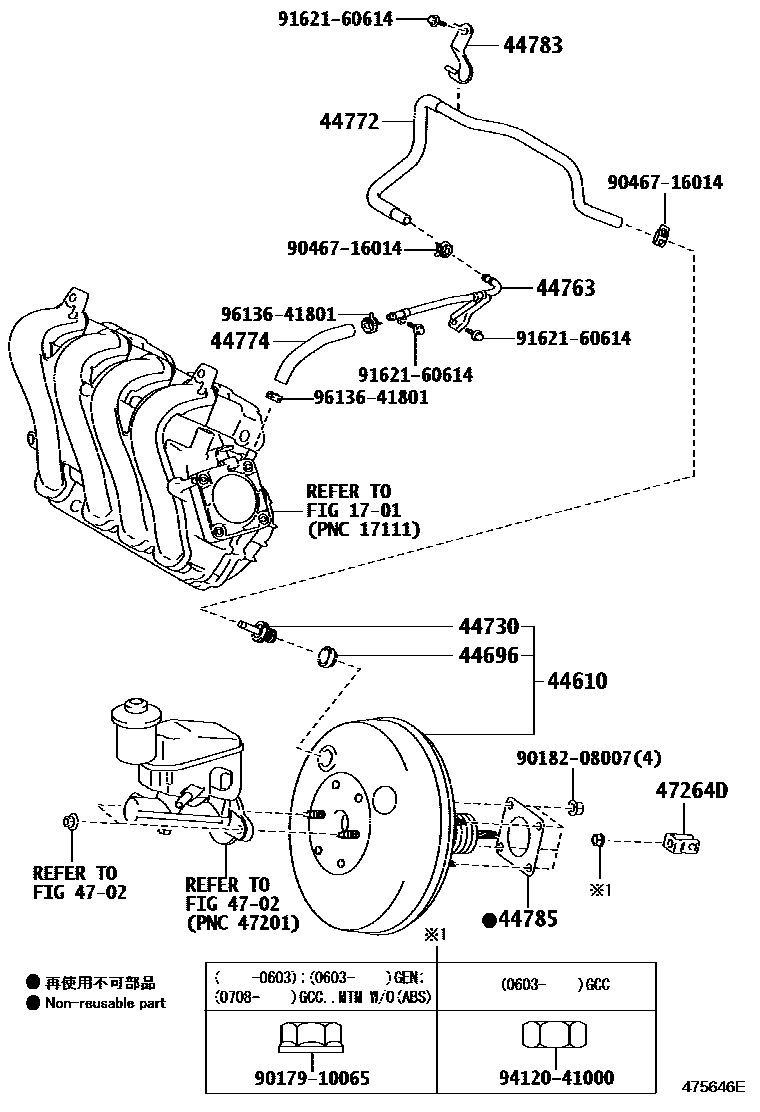

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1

1701

44610BOOSTER ASSY, BRAKE

main44610-52370iNCP92..RHD200808-201307

main44610-52410iNCP93..ARL201108

main44610-52430supersedes 44610-52460iNCP9#..LHD..ATM..GEN200601-200808

ABS-WITH(W/0 BRAKE ASSIST)

main44610-52440iNCP92..GCC200601-200602

main44610-52441iNCP9#..GCC200603-200808

main44610-52660iNCP92..GCC200808-201108

GCC BUSINESS PACKAGE&ABS-WITHOUT

44696GROMMET, CHECK VALVE

main90480-24015iNCP9#..RHD200808

main90480-24439iNCP93..LHD;NCP92..LHD..GEN200601-200808

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-20080iNCP9#..LHD200601-200808

main44730-28030iNCP9#..RHD200808

main44730-12070iNCP92..ATM..GCC200808-201108

GCC BUSINESS PACKAGE&ABS-WITHOUT

44763TUBE, BOOSTER VACUUM

main44763-52080iNCP9#200601-200808

44772HOSE, CHECK VALVE TO CONNECTOR TUBE

main44772-52050iNCP9#..RHD200808

main44772-52090iNCP9#..LHD200601-200808

44774HOSE, UNION TO CONNECTOR TUBE

main95446-09130iNCP9#200601-200808

44783CLAMP, VACUUM HOSE

main44783-52040iNCP9#..LHD200601-200808

44785GASKET, BRAKE BOOSTER

main44785-16020iNCP9#200808

4702

47264DCLEVIS, BRAKE MASTER CYLINDER PUSH ROD

main47264-12060iNCP9#..RHD200808

main47264-52040iNCP9#..LHD200808-201307

main47264-52050iNCP92..GCC200708-200808

GCC BUSINESS PACKAGE&ABS-WITHOUT

9017910065

main90179-10065

9018208007

main90182-08007

9046716014

main90467-16014

9162160614

main91621-60614

9412041000

main94120-41000

9613641801

main96136-41801

17 parts on this diagram · 2 diagrams in section
