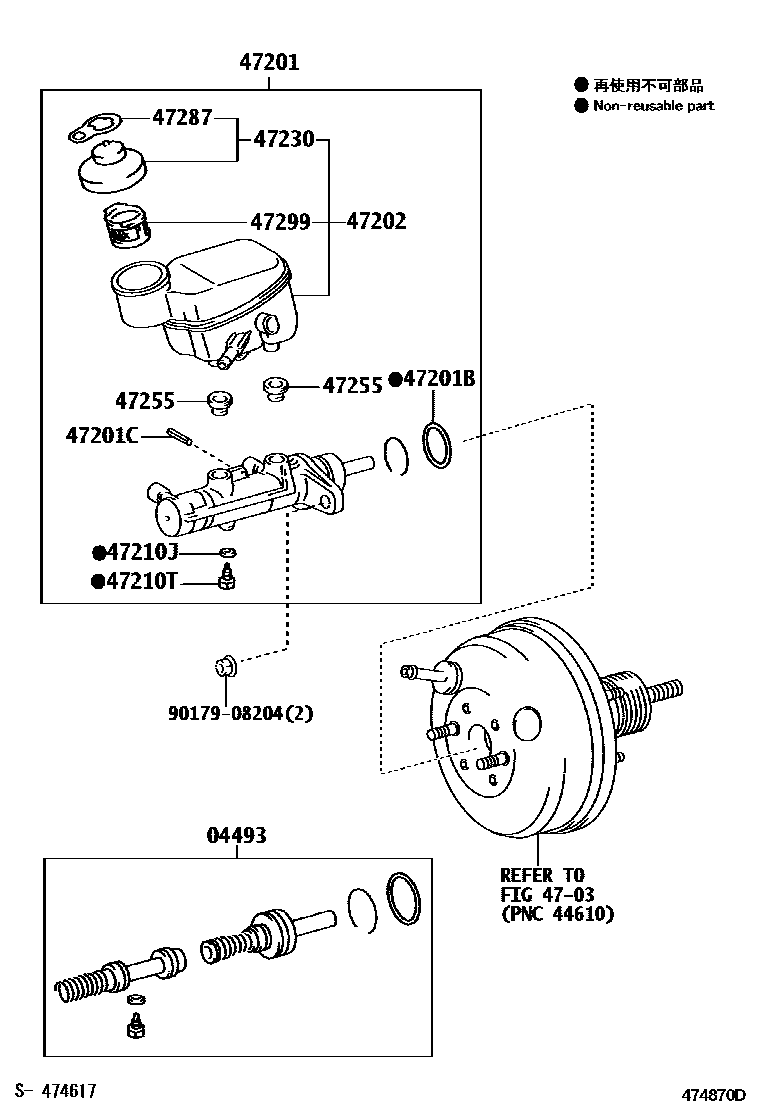

BRAKE MASTER CYLINDER

0001 1 0002 1

04493CYLINDER KIT, BRAKE MASTER

main04493-52070iNCP9#..LHD200601-201307

4703

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-52250iNCP9#..RHD..ATM200601-201210

sub47201-52251

main47201-52251iNCP9#..RHD..ATM201211

main47201-52310iNCP9#..RHD..MTM200601-201210

sub47201-52311

main47201-52311iNCP9#..RHD..MTM201211

main47201-52320iNCP9#..LHD..ATM200601-201307

main47201-52330iNCP9#..LHD..MTM200601-201307

47201BRING, O(FOR BRAKE MASTER CYLINDER)

main90015-AH001iNCP9#..RHD200601-200808

main90029-20059iNCP9#..LHD200601-201307

47201CRING PIN, BRAKE MASTER CYLINDER

main90029-15804iNCP9#..LHD200601-201307

47202RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER

main47220-52110iNCP9#..RHD..ATM200601-200808

main47220-52140iNCP9#..RHD..MTM200601-200808

main47220-52160iNCP9#..LHD..ATM200601-201307

main47220-52170iNCP9#..LHD..MTM200601-201307

47210JGASKET(FOR MASTER CYLINDER)

main90029-43001iNCP9#..LHD200601-201307

47210TBOLT(FOR BRAKE MASTER CYLINDER)

main90109-06077iNCP9#..LHD200601-201307

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-28240iNCP9#..LHD200601-201307

main47230-33071iNCP9#..RHD201005-201411

sub47230-33072

main47230-33072iNCP93201411

main47230-52030iNCP9#..RHD200601-201005

sub47230-33071

47255GROMMET, MASTER CYLINDER RESERVOIR

main31417-35010iNCP9#..LHD200601-201307

main90015-AT001iNCP9#..RHD200601-200808

47287LABEL, BRAKE FLUID INFORMATION

main47287-20010iNCP9#..LHD200601-201307

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-25010iNCP9#..LHD200601-201307

main47299-52110iNCP9#..RHD200601-200808

9017908204

main90179-08204

13 parts on this diagram · 2 diagrams in section
