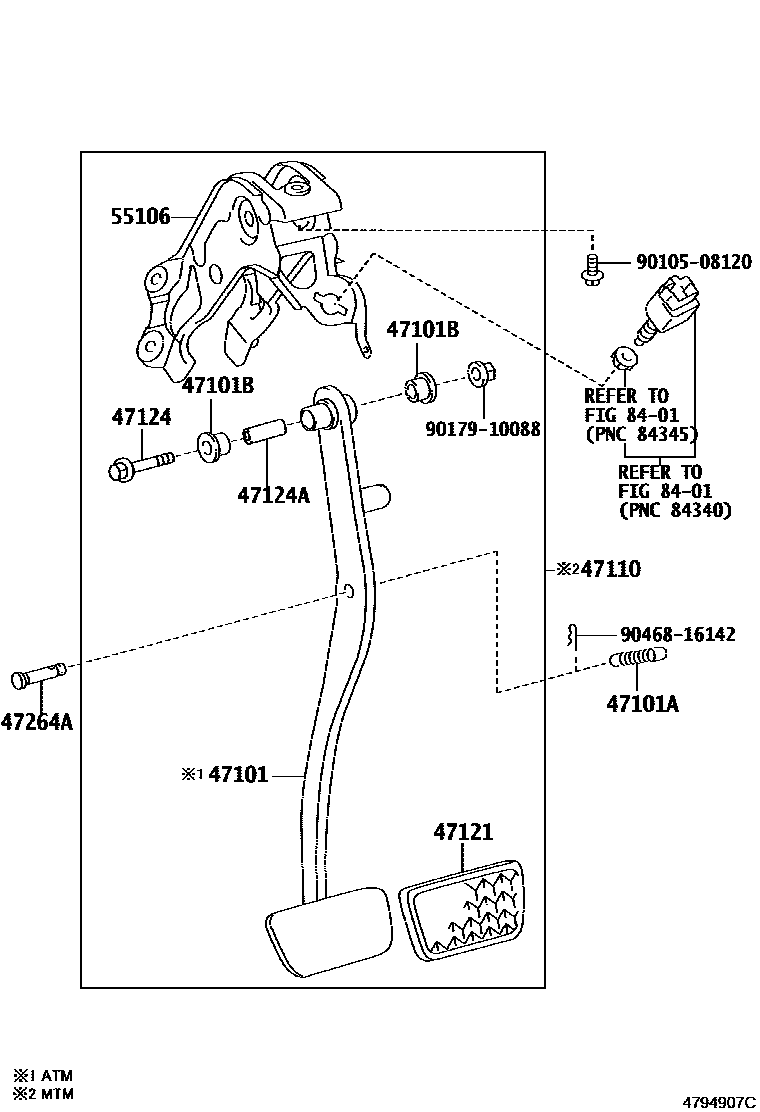

BRAKE PEDAL & BRACKET

0001 1 0002 1 0003 1 0004 1

47101PEDAL SUB-ASSY, BRAKE

main47101-52230iNCP9#..RHD..MTM200808-201112

main47101-52231iNCP9#..RHD..MTM201201-201409

*376

main47101-52240iNCP9#..RHD..ATM200601-200808

main47101-52241iNCP9#..RHD..ATM201201-201409

*376

main47101-52250iNCP9#..LHD..MTM..GEN200808-201106

ABS-WITH(WITHOUT BRAKE ASSIST)

main47101-52251supersedes 47101-52270iNCP9#..LHD..MTM..GEN201107-201307

*378

main47101-52260iNCP9#..LHD..ATM200601-200808

main47101-52261supersedes 47101-52280iNCP9#..ATM..GCC201107-201307

*378

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90506-14077iNCP9#200808-201205

main90506-14088iNCP9#201205

47101BBUSH(FOR BRAKE PEDAL)

main90386-13015×2iNCP9#200601-200808

47110SUPPORT ASSY, BRAKE PEDAL

main47110-52260iNCP9#..RHD..MTM200601-200808

main47110-52400iNCP93..MTM201409-201607

main47110-52410iNCP93..ATM201409-201607

47121PAD, BRAKE PEDAL

main31321-52010iNCP9#..MTM200808-201501

main31321-52020iNCP93..MTM201502

main47121-52010iNCP9#..ATM200808-201409

main47121-52020iNCP93..ATM201409

47124SHAFT, BRAKE PEDAL

main90105-10444iNCP9#201104-201409

main90109-10167iNCP9#200808-201104

main91552-81055iNCP93201409

47124ACOLLAR(FOR BRAKE PEDAL SHAFT)

main90387-10003iNCP9#201104

47264APIN(FOR PUSH ROD)

main90249-08051iNCP9#200601-200808

55106SUPPORT SUB-ASSY, BRAKE PEDAL

main55106-52130iNCP9#..RHD200601-200808

sub55106-52H01

main55106-52131iNCP9#..RHD201104-201409

main55106-52160supersedes 55106-52170iNCP9#..LHD..MTM..GEN200601-200808

ABS-WITH(W/0 BRAKE ASSIST)

sub55106-52H02

main55106-52161supersedes 55106-52171iNCP9#..LHD..GEN201104-201307

ABS-WITH(WITHOUT BRAKE ASSIST)

8401

9010508120

main90105-08120

9017910088

main90179-10088

9046816142

main90468-16142

13 parts on this diagram · 4 diagrams in section
