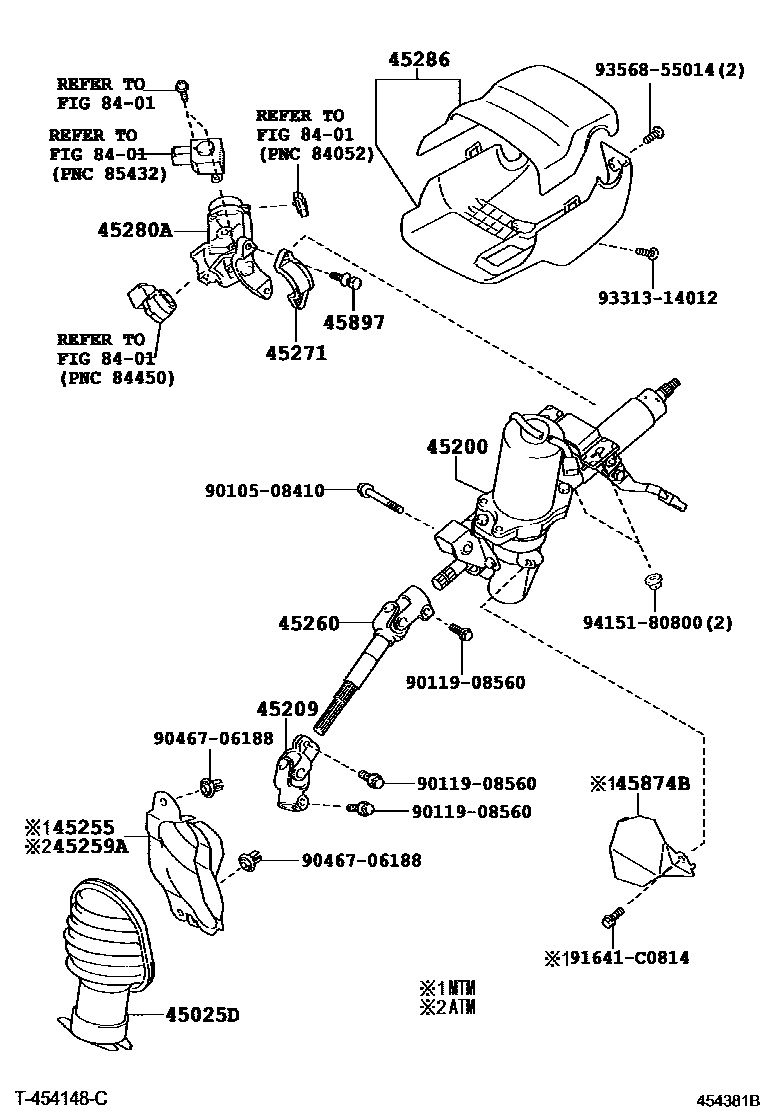

STEERING COLUMN & SHAFT

0001 1 0002 1

45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1

main45025-52140iNCP9#¥3,010200601-201110

sub45025-52170¥2,750

main45025-52170iNCP9#¥2,750201111

45200POST ASSY, STEERING

main45200-52260iNCP9#..RHD¥93,400200601-200712

sub45200-52261¥93,400

main45200-52261iNCP9#..RHD¥93,400200801-201108

main45200-52310iNCP9#..LHD200601-200712

sub45200-52311

main45200-52311iNCP9#..LHD200801-201108

main45200-52800iNCP92..RHD¥93,400201108-201307

main45200-52810iNCP93..ARL201108

main45200-52830iNCP9#..LHD201108-201307

45209YOKE SUB-ASSY, STEERING SLIDING

main45209-52040iNCP9#¥7,200200601-200808

45255PLATE, STEERING COLUMN HOLE COVER

main45255-52130iNCP9#..RHD..MTM¥980200601-200808

45259ASHEET, COLUMN HOLE COVER SILENCER

main45259-52010iNCP9#..RHD..ATM¥700200601-200808

main45259-52020iNCP9#..LHD¥750200601-201307

45260SHAFT ASSY, STEERING INTERMEDIATE, NO.2

main45260-52230iNCP9#..LHD200601-201307

main45260-52240iNCP9#..RHD¥14,700200601-200808

45271CLAMP, STEERING COLUMN, UPPER

main45271-52030iNCP9#¥440200601-200808

45280ABRACKET ASSY, STEERING COLUMN, UPPER

main45280-22510iNCP9#..ATM¥14,300200601-201108

main45280-22520iNCP9#..ATM¥9,900201108

main45280-52090iNCP9#..MTM¥14,300200601-201108

sub45280-22510¥14,300

main45280-60640iNCP9#..MTM¥8,900201108

45286COVER, STEERING COLUMN

main45286-52929-B0iNCP9#200601-200808

DK.GRAY,TRIM1#,4#

sub45286-52934¥4,590

main45286-52929-B0iNCP9#200808-200812

DK.GRAY,TRIM1#

sub45286-52934¥4,590

main45286-52929-E1iNCP9#200808-200812

ASH BROWN,TRIM4#

sub45286-52934¥4,590

main45286-52934-B0iNCP9#200812-201607

DK.GRAY,TRIM1#

main45286-52934-E0iNCP9#200812-201607

ASH BROWN,TRIM4#

45874BPROTECTOR, STEERING COLUMN, NO.1

main45874-52020iNCP9#..RHD..MTM¥1,020200601-200808

45897BOLT, STEERING LOCK SET

main45897-12020iNCP9#¥210200601-200808

8401

9010508410

main90105-08410¥220

9011908560

main90119-08560¥110

9046706188

main90467-06188¥160

91641C0814

main91641-C0814¥130

9331314012

main93313-14012¥60

9356855014

main93568-55014¥70

9415180800

main94151-80800¥80

19 parts on this diagram · 2 diagrams in section
