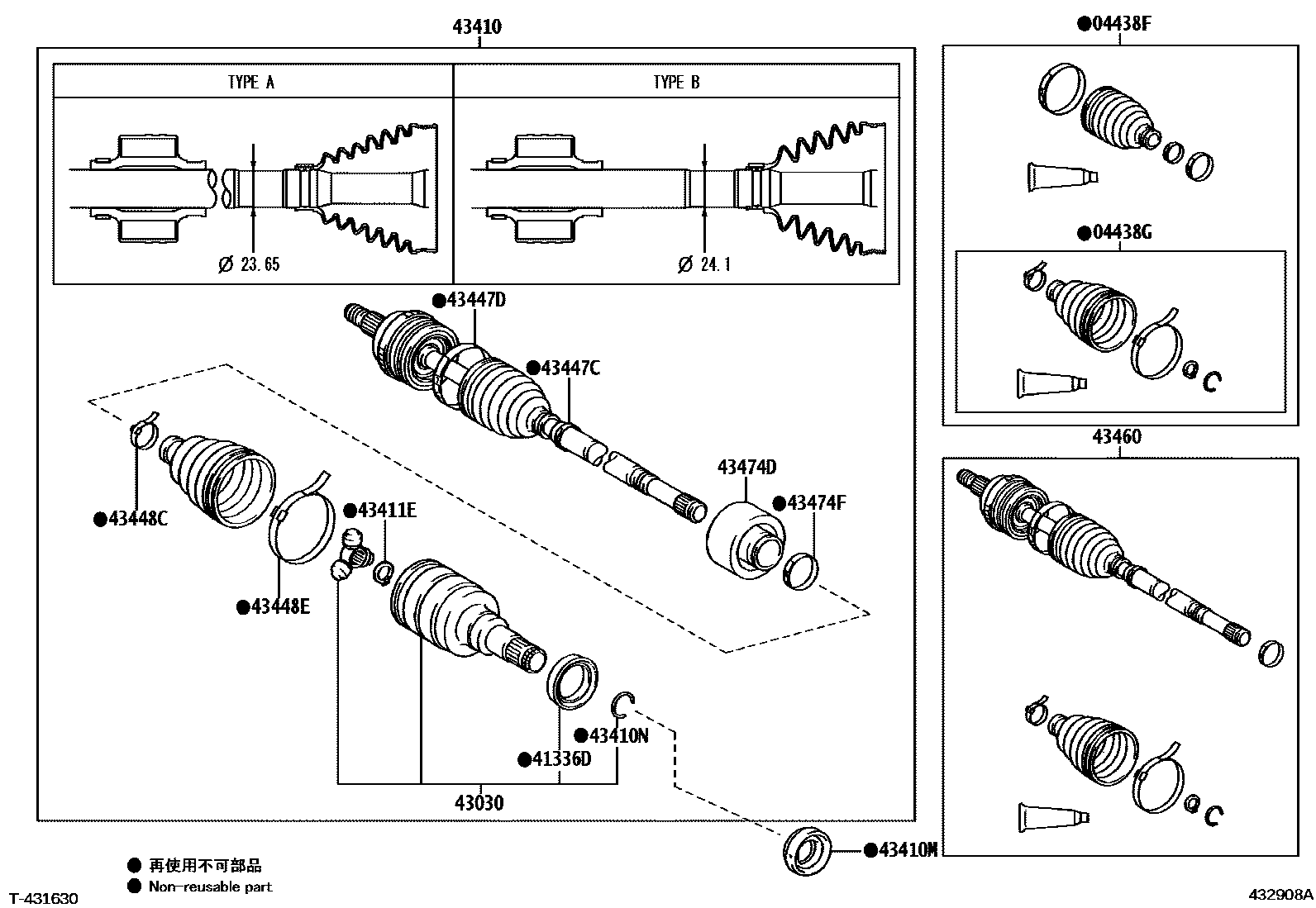

FRONT DRIVE SHAFT
04438FBOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH
04438GBOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH
PNC 43410=TYPE A
PNC 43410=TYPE B
41336DCOVER, FRONT DRIVE SHAFT DUST, RH
43030JOINT ASSY, FRONT DRIVE INBOARD, RH
PNC 43410=TYPE A
43410SHAFT ASSY, FRONT DRIVE, RH
TYPE A:REFER ILLUST.
43410MOIL SEAL, FRONT DRIVE SHAFT, RH
43410NRING, HOLE SNAP (FOR FRONT DRIVE SHAFT RH)
43411ERING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH)
PNC 43410=TYPE A
43447CCLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
43447DCLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
43448CCLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH)
PNC 43410=TYPE A
PNC 43410=TYPE B
43448ECLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)
PNC 43410=TYPE A
PNC 43410=TYPE B
43460SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH
43474DDAMPER, FRONT DRIVE SHAFT, RH
PNC 43410=TYPE B
PNC 43410=TYPE A
43474FCLAMP (FOR FRONT DRIVE SHAFT DAMPER RH)
15 parts on this diagram · 4 diagrams in section
