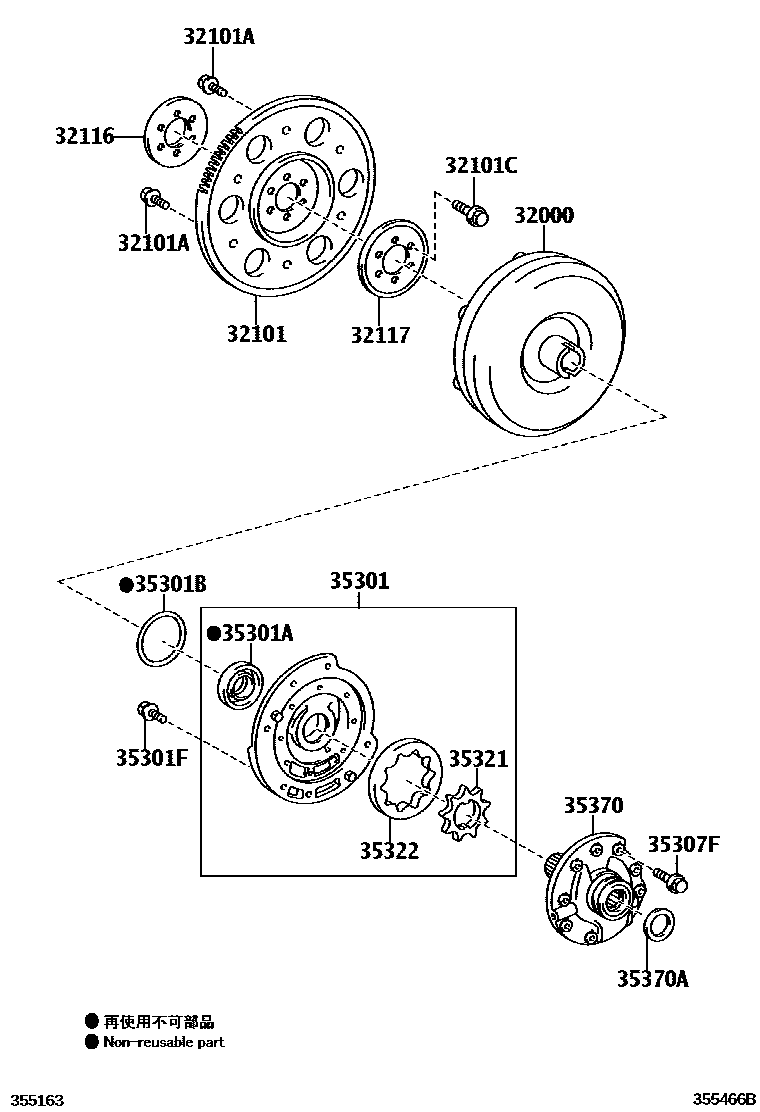

TORQUE CONVERTER, FRONT OIL PUMP & CHAIN (ATM)
32000CONVERTER ASSY, TORQUE
32101GEAR SUB-ASSY, DRIVE PLATE & RING
32101ABOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)
*8-1.25PX12-8.4,WHITE
*8-1.25PX12-8.4,WHITE
*8-1.25PX12-8,BLACK
*8-1.25PX12-8,BLACK
32101CBOLT, HEXAGON(FOR DRIVE PLATE SETTING)
*10-1.25PX18-13
*10-1.25PX18-13,(L)
32116SPACER, DRIVE PLATE, FRONT
32117SPACER, DRIVE PLATE, REAR
35301BODY SUB-ASSY, FRONT OIL PUMP
35301ASEAL, OIL (FOR FRONT OIL PUMP)
35301BRING, O (FOR FRONT OIL PUMP BODY)
35301FBOLT (FOR FRONT OIL PUMP SETTING)
*8-1.25PX22-20
*8-1.25PX20-20
35307FBOLT (FOR STATOR SHAFT)
35321GEAR, FRONT OIL PUMP DRIVE
T=8.44-8.45,MARK 1
T=8.45-8.46,MARK 2
T=8.46-8.47,MARK 3
T=8.47-8.48,MARK 4
T=8.48-8.49,MARK 5
T=9.44-9.449,MARK 1
T=9.45-9.459,MARK 2
T=9.46-9.47,MARK 3
T=9.471-9.48,MARK 4
T=9.481-9.49,MARK 5
35322GEAR, FRONT OIL PUMP DRIVEN
T=8.44-8.45,MARK 1
T=8.45-8.46,MARK 2
T=8.46-8.47,MARK 3
T=8.47-8.48,MARK 4
T=8.48-8.49,MARK 5
T=9.44-9.449,MARK 1
T=9.45-9.459,MARK 2
T=9.46-9.47,MARK 3
T=9.471-9.48,MARK 4
T=9.481-9.49,MARK 5
35370ABEARING, THRUST NEEDLE ROLLER(FOR STATOR SHAFT)
T=4.21
T=3.62
15 parts on this diagram · 2 diagrams in section
