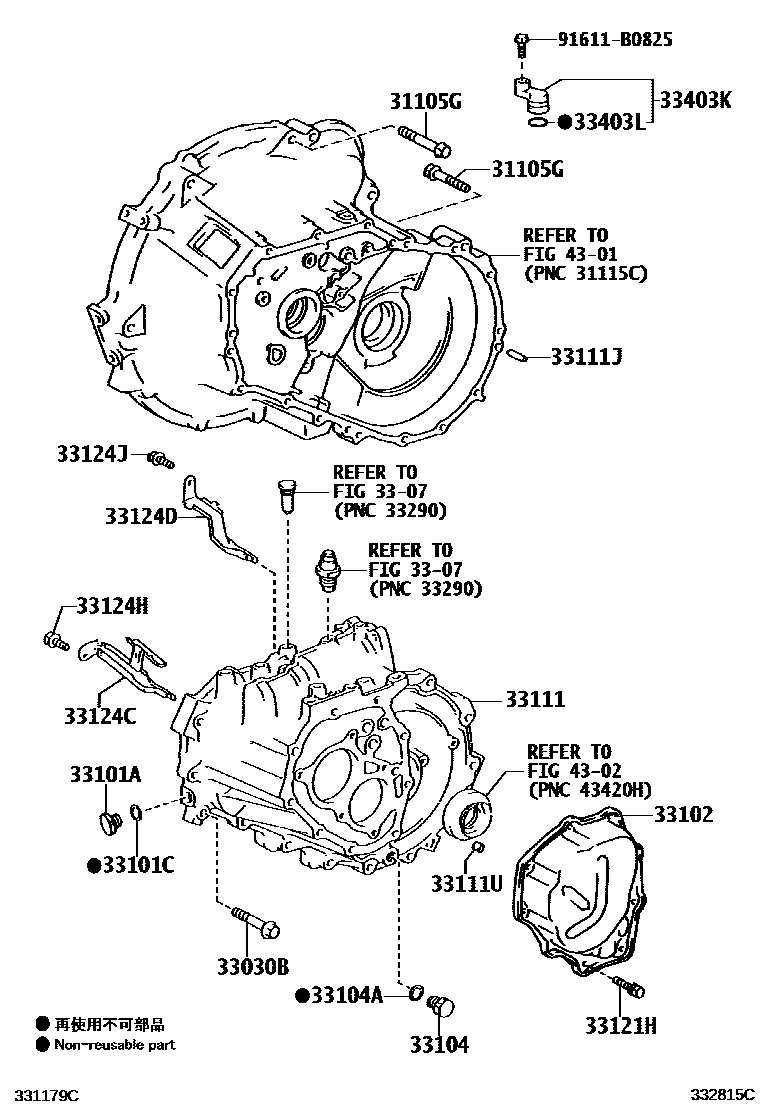

CLUTCH HOUSING & TRANSMISSION CASE (MTM)

31105GBOLT(FOR TRANSAXLE CASE & ENGINE SETTING)

main91612-61045iNCP9#..MTM200603-200808

*10-1.25PX45-30

main91612-61050iNCP9#..MTM200601-200603

*10-1.25PX50-30

33030BBOLT(FOR TRANSAXLE CASE & TRANSMISSION CASE SETTING)

main90105-08353iNCP9#..MTM200601-200808

*8-1.25PX50-30

main90105-08430iNCP9#..MTM200601-200808

*8-1.25PX45-27.5

3307

33101APLUG(FOR MANUAL TRANSMISSION FILLER)

main90341-18033iNCP9#..MTM200601-200808

33101CGASKET(FOR MANUAL TRANSMISSION FILLER PLUG)

main90430-18008iNCP9#..MTM200601-200808

33102COVER SUB-ASSY, MANUAL TRANSMISSION CASE

main33102-12021iNCP9#..MTM200601-200808

33104PLUG SUB-ASSY, DRAIN(MTM)

main90341-18033iNCP9#..MTM200601-200808

33104AGASKET, DRAIN PLUG(MTM)

main90430-18008iNCP9#..MTM200601-200808

33111CASE, MANUAL TRANSMISSION

main33111-12260iNCP9#..MTM200811

main33111-52120iNCP9#..MTM200601-200811

sub33111-12260

33111JPIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)

main90250-08054iNCP9#..MTM200601-200808

L=23,OD=8

33111UPIN, RING(FOR MANUAL TRANSMISSION CASE)

main90253-11001iNCP9#..MTM200601-200808

L=11,OD=11

33121HBOLT, W/WASHER(FOR TRANSMISSION CASE COVER)

main90119-08429iNCP9#..MTM200811

main90119-08782iNCP9#..MTM200603-200811

main91611-60835iNCP9#..MTM200601-200603

33124CPIPE, OIL RECEIVER, NO.1(MTM)

main33124-20050iNCP9#..MTM200601-200808

33124DPIPE, OIL RECEIVER, NO.2(MTM)

main33124-12021iNCP9#..MTM200601-200808

33124HBOLT(FOR OIL RECEIVER PIPE)

main91611-G0820iNCP9#..MTM200601-200808

33124JBOLT, W/WASHER

main91611-G0820iNCP9#..MTM200601-200808

33403KCOVER SUB-ASSY, SPEEDOMETER DRIVEN HOLE

main33403-35230iNCP92..RHD..MTM;NCP9#..MTM..(ARL,GCC)200808

main33403-35230iNCP9#..LHD..MTM..GEN200601-200808

ABS-WITH(W/0 BRAKE ASSIST)&TIRE & DISC WHEEL-185/60R15 OFF ROAD SPEC,5.5J ALUMINUM

33403LRING, O

main96711-24030iNCP9#..LHD..MTM..GEN200601-200808

ABS-WITH(W/0 BRAKE ASSIST)&TIRE & DISC WHEEL-185/60R15 OFF ROAD SPEC,5.5J ALUMINUM

main96711-24030iNCP92..RHD..MTM;NCP9#..MTM..(ARL,GCC)200808

4301

4302

91611B0825

main91611-B0825

21 parts on this diagram · 1 diagram in section
