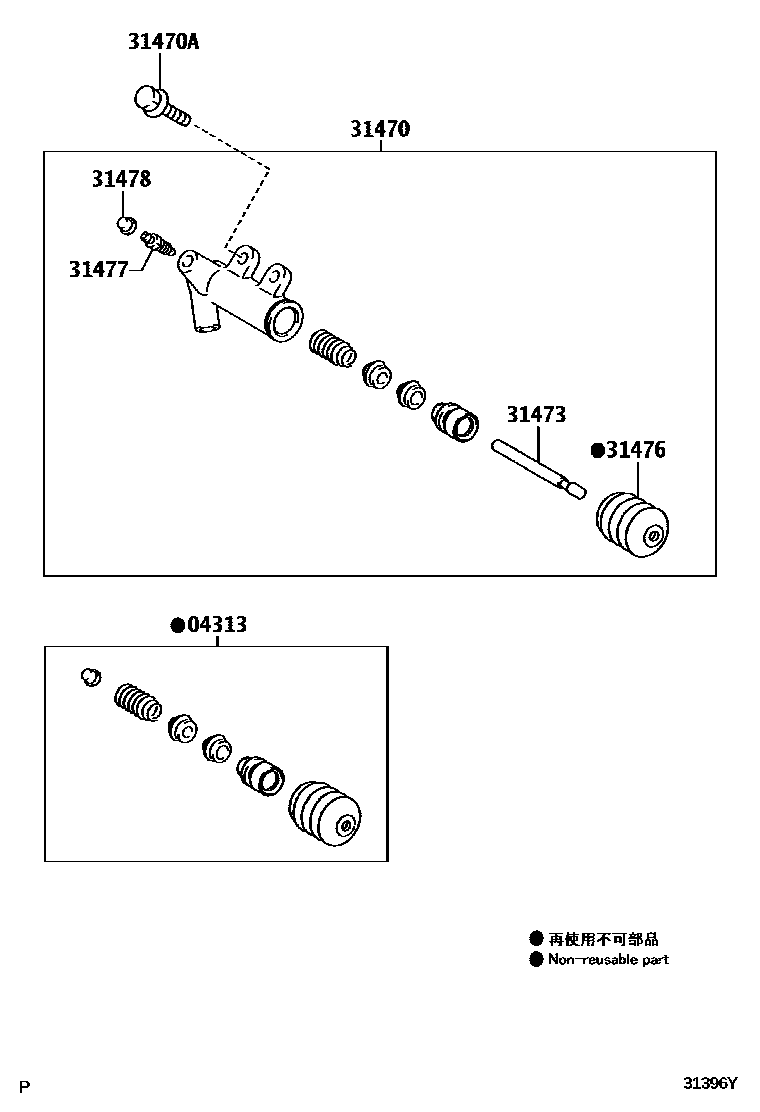

CLUTCH RELEASE CYLINDER

04313CYLINDER KIT, CLUTCH RELEASE

main04313-35060iNCP92..MTM200808-201307

main04313-52020iNCP93..MTM200808

31470CYLINDER ASSY, CLUTCH RELEASE

main31470-52110iNCP92..MTM200601-200705

main31470-52111iNCP92..MTM200808-201307

main31470-52120iNCP93..MTM200601-200705

main31470-52121iNCP93..MTM200705-200808

31470ABOLT(FOR CLUTCH RELEASE CYLINDER SETTING)

main91611-60822×2iNCP9#..MTM200601-200808

*8-1.25PX22-17.1

31473ROD, CLUTCH RELEASE CYLINDER PUSH, NO.1

main31473-20031iNCP9#..MTM200601-200808

31476BOOT, CLUTCH RELEASE CYLINDER

main31476-22010iNCP9#..MTM200601-200808

31477PLUG, BLEEDER(FOR RELEASE CYLINDER)

main47547-20010iNCP9#..MTM200601-200808

31478CAP, BLEEDER PLUG(FOR RELEASE CYLINDER)

main31478-30010iNCP9#..MTM200601-200808

7 parts on this diagram · 1 diagram in section
