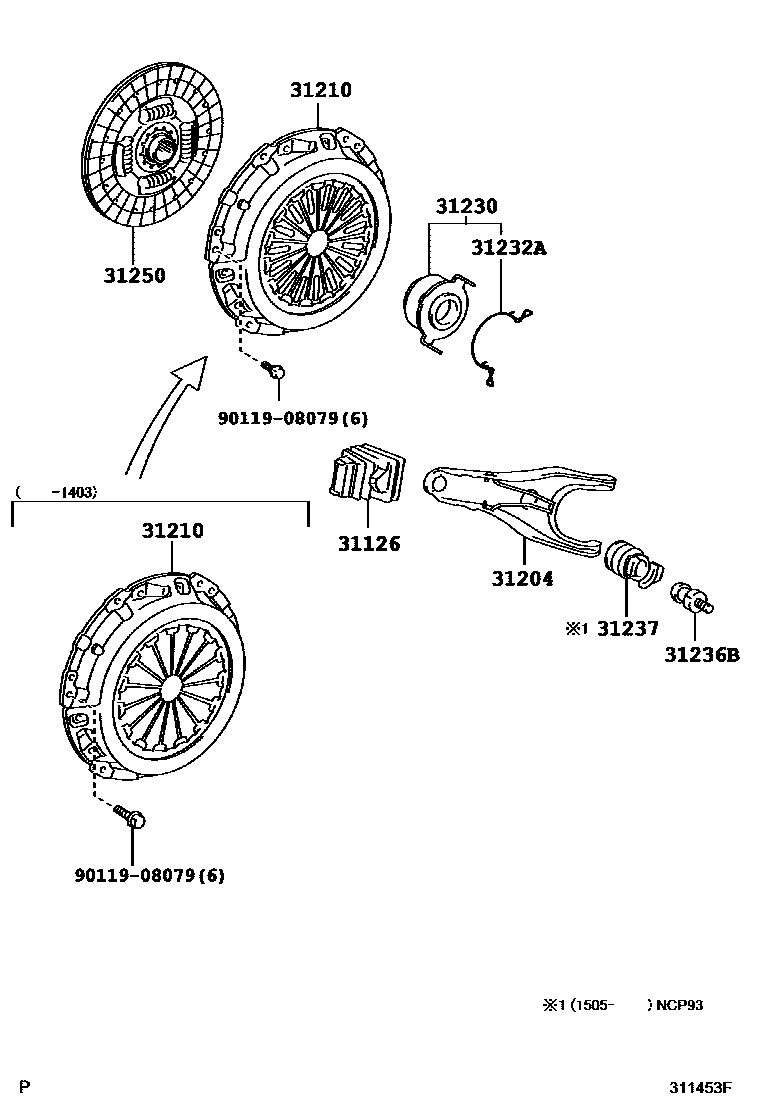

CLUTCH & RELEASE FORK

31126BOOT, CLUTCH RELEASE FORK

main31126-12051iNCP9#..MTM200808

31204FORK SUB-ASSY, CLUTCH RELEASE

main31204-52010iNCP9#..MTM200808

31210COVER ASSY, CLUTCH

main31210-12210iNCP92..MTM200601-200608

main31210-12280iNCP92..MTM200608-200711

main31210-12281iNCP92..MTM200712-200808

main31210-12282iNCP92..MTM200808-201307

main31210-52050iNCP93..MTM200601-200602

main31210-52051iNCP93..MTM200603-200702

main31210-52052iNCP93..MTM200808-201203

main31210-52053iNCP93..MTM201204-201403

main31210-52180iNCP93..MTM201403

31230BEARING ASSY, CLUTCH RELEASE

main31230-12180iNCP9#..MTM200808-200812

main31230-12181iNCP9#..MTM200812

31232ACLIP, RELEASE BEARING HUB

main31232-12080iNCP9#..MTM200601-200808

31236BSUPPORT, RELEASE FORK

main31236-12020iNCP9#..MTM200808

31237BOOT, CLUTCH RELEASE FORK SUPPORT

main31237-52010iNCP93..MTM201505

31250DISC ASSY, CLUTCH

main31250-12392iNCP92..MTM200601-200808

main31250-12393iNCP92..MTM200901-201307

main31250-52050iNCP93..MTM200601-200808

9011908079

main90119-08079

9 parts on this diagram · 1 diagram in section
