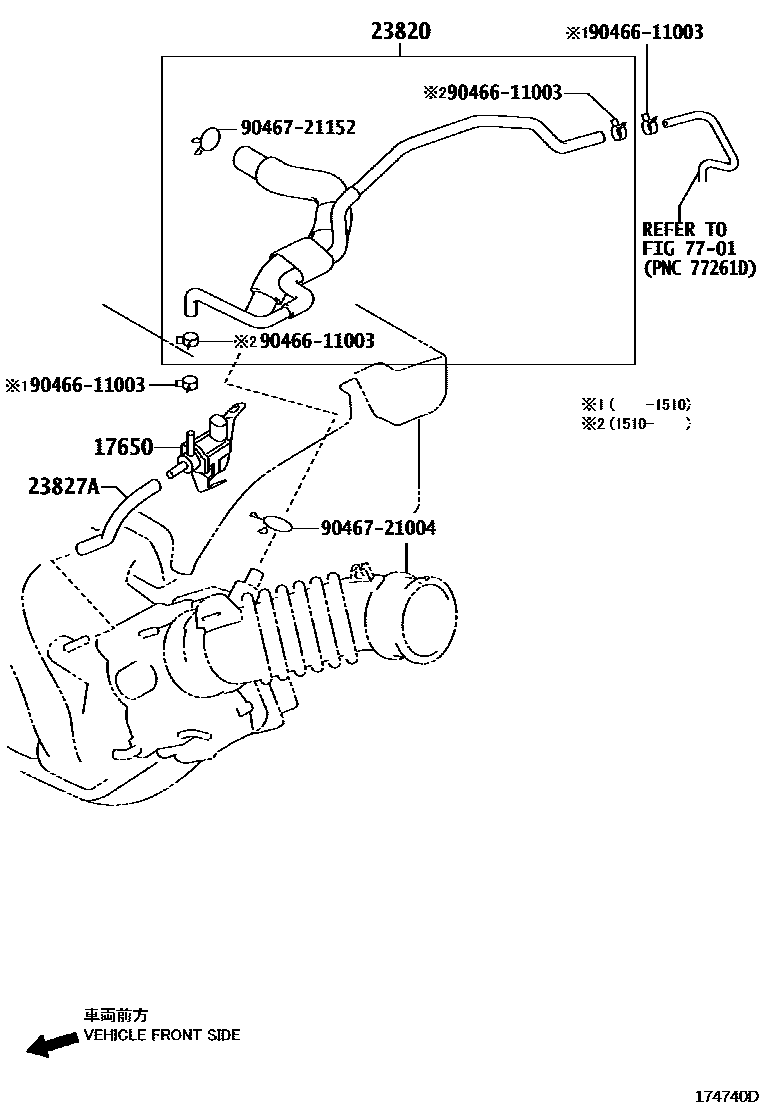

VACUUM PIPING

17650VALVE ASSY, VACUUM SWITCHING

main25860-21070i1NZFE,2NZFE..NCP9#200601-200808

23820HOSE ASSY, FUEL VAPOR FEED

main23820-21100i1NZFE,2NZFE..NCP9#200601-200808

main23820-21101i1NZFE..NCP93201510-201607

23827AHOSE, FUEL VAPOR FEED, NO.2

main23827-21150i1NZFE,2NZFE..NCP9#200602-200808

main95328-07017i1NZFE,2NZFE..NCP9#200601-200602

7701

9046611003

main90466-11003

9046721004

main90467-21004

9046721152

main90467-21152

7 parts on this diagram · 1 diagram in section
