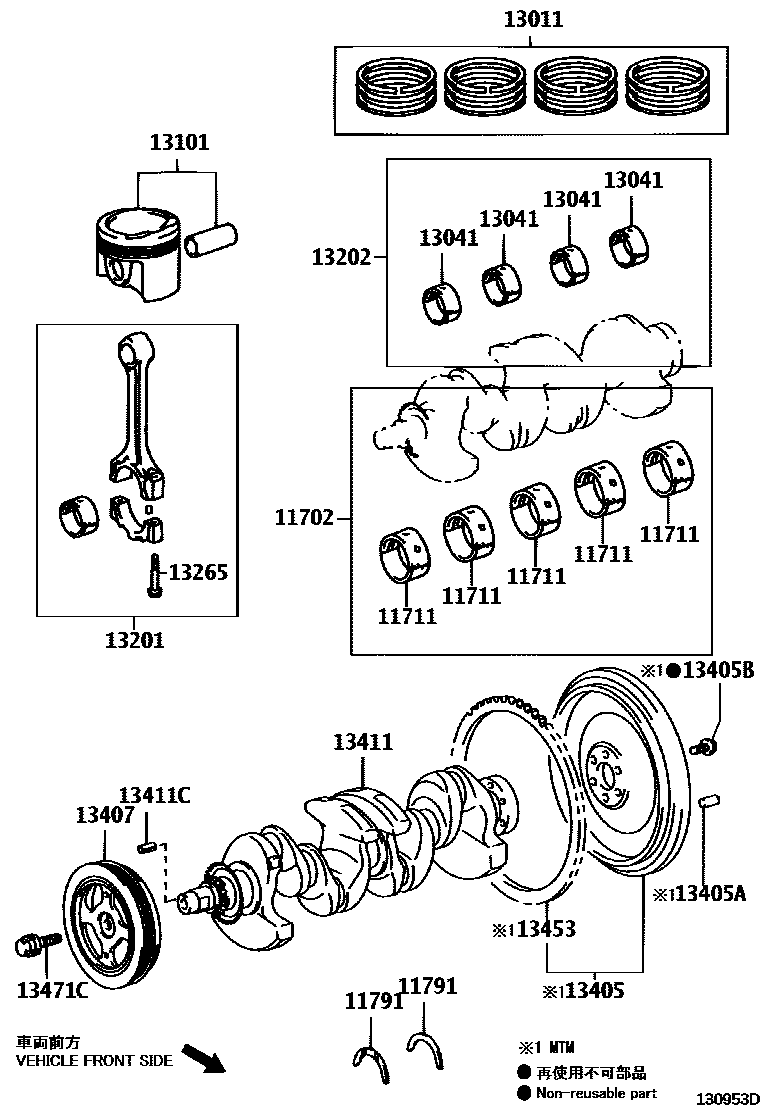

CRANKSHAFT & PISTON

11702BEARING SET, CRANKSHAFT

main11704-21031i1NZFE,2NZFE..NCP9#200808-201308

U/S 0.25

main11704-21032i1NZFE..NCP93201308-201401

U/S 0.25

main11704-21033i1NZFE..NCP93201401

U/S 0.25

11711BEARING, CRANKSHAFT

main11701-21031-01×5i1NZFE,2NZFE..NCP9#200808-201308

MARK1,REFER REPAIR MANUAL

main11701-21031-02×5i1NZFE,2NZFE..NCP9#200808-201308

MARK2,REFER REPAIR MANUAL

main11701-21031-03×5i1NZFE,2NZFE..NCP9#200601-200808

MARK3,REFER REPAIR MANUAL

main11701-21031-04×5i1NZFE,2NZFE..NCP9#200808-201308

MARK4,REFER REPAIR MANUAL

main11701-21032-01×5i1NZFE..NCP93201308-201312

MARK 1,REFER REPAIR MANUAL

main11701-21032-02×5i1NZFE..NCP93201308-201312

MARK 2,REFER REPAIR MANUAL

main11701-21032-03×5i1NZFE..NCP93201308-201312

MAKR 3,REFER REPAIR MANUAL

main11701-21032-04×5i1NZFE..NCP93201308-201312

MARK 4,REFER REPAIR MANUAL

main11701-21033-01×5i1NZFE..NCP93201401

MARK 1,REFER REPAIR MANUAL

main11701-21033-02×5i1NZFE..NCP93201401

MARK 2,REFER REPAIR MANUAL

main11701-21033-03×5i1NZFE..NCP93201401

MARK 3,REFER REPAIR MANUAL

main11701-21033-04×5i1NZFE..NCP93201401

MARK 4,REFER REPAIR MANUAL

11791WASHER, CRANKSHAFT THRUST, UPPER

main11791-22020×2i1NZFE,2NZFE..NCP9#200601-200808

STD

main11791-37010×2i1NZFE,2NZFE..NCP9#200808

STD

main11792-22020×2i1NZFE,2NZFE..NCP9#200601-200808

O/S 0.125

main11792-37010×2i1NZFE..NCP93201310

O/S 0.125

main11793-22020×2i1NZFE,2NZFE..NCP9#200808-201310

O/S 0.25

main11793-37010×2i1NZFE..NCP93201310

O/S 0.25

13011RING SET, PISTON

main13011-21041i1NZFE..NCP93200808-201210

STD

main13011-21050i2NZFE..NCP92200601-200808

STD

main13011-21120i1NZFE..NCP93201210

STD

main13011-21060i2NZFE..NCP92..ATM..GEN;2NZFE..NCP92..LHD..MTM..GEN200808-201307

STD,EXHAUST EMISSION CONTROL-FOR GENERAL(LEADED GASOLINE SPEC)

13041BEARING, CONNECTING ROD

main13041-21022-01×4i1NZFE,2NZFE..NCP9#200601-200808

MARK1,REFER REPAIR MANUAL

sub13041-21023

main13041-21022-02×4i1NZFE,2NZFE..NCP9#200601-200808

MARK2,REFER REPAIR MANUAL

sub13041-21023

main13041-21022-03×4i1NZFE,2NZFE..NCP9#200601-200808

MARK3,REFER REPAIR MANUAL

sub13041-21023

main13041-21033-01×4i1NZFE..NCP93201308

MARK 1,REFER REPAIR MANUAL

main13041-21033-02×4i1NZFE..NCP93201308

MARK 2,REFER REPAIR MANUAL

main13041-21033-03×4i1NZFE..NCP93201308

MARK 3,REFER REPAIR MANUAL

13101PISTON SUB-ASSY, W/PIN

main13101-21070×4i1NZFE..NCP93200808-201210

STD

main13101-21080×4i2NZFE..NCP92200601-200808

STD

main13101-21160×4i1NZFE..NCP93201210

STD

main13101-21050×4i2NZFE..NCP92..ATM..GEN;2NZFE..NCP92..LHD..MTM..GEN200808-201307

STD,EXHAUST EMISSION CONTROL-FOR GENERAL(LEADED GASOLINE SPEC)

13201ROD SUB-ASSY, CONNECTING

main13201-29715×4i2NZFE..NCP92200808-201307

sub13201-29716

main13201-29735×4i1NZFE..NCP93200808-201308

main13201-29736×4i1NZFE..NCP93201308-201401

main13201-29737×4i1NZFE..NCP93201401

sub13201-29757

13202BEARING SET, CONNECTING ROD

main13204-21022i1NZFE,2NZFE..NCP9#200808-201308

U/S 0.25

sub13204-21023

main13204-21033i1NZFE..NCP93201308

U/S 0.25

13265BOLT, CONNECTING ROD

main13265-21020×8i1NZFE,2NZFE..NCP9#200601-200808

13405FLYWHEEL SUB-ASSY

main13405-21020i2NZFE..NCP92..MTM200601-200808

main13405-21030i1NZFE..NCP93..MTM200601-200808

13405APIN, STRAIGHT(FOR FLYWHEEL)

main90250-08120×3i1NZFE,2NZFE..NCP9#..MTM200601-200808

L=18,OD=8

13405BBOLT, FLYWHEEL SETTING

main90913-01024×6i1NZFE,2NZFE..NCP9#..MTM200601-200808

13407DAMPER SUB-ASSY, CRANKSHAFT

main13407-21031i1NZFE,2NZFE..NCP9#200601-200808

main13407-21032i1NZFE,2NZFE..NCP9#201205

13411CRANKSHAFT

main13401-21020i1NZFE..NCP93200601-200808

main13401-21030i2NZFE..NCP92200808-201307

13411CPIN, STRAIGHT(FOR CRANKSHAFT)

main90250-03095i1NZFE..NCP93201605

main90254-03025i1NZFE,2NZFE..NCP9#200601-200808

13453GEAR, FLYWHEEL RING

main13453-10010i1NZFE,2NZFE..NCP9#..MTM200601-200808

13471CBOLT(FOR CRANKSHAFT PULLEY SET)

main90119-12345i1NZFE,2NZFE..NCP9#200601-200808

17 parts on this diagram · 1 diagram in section
