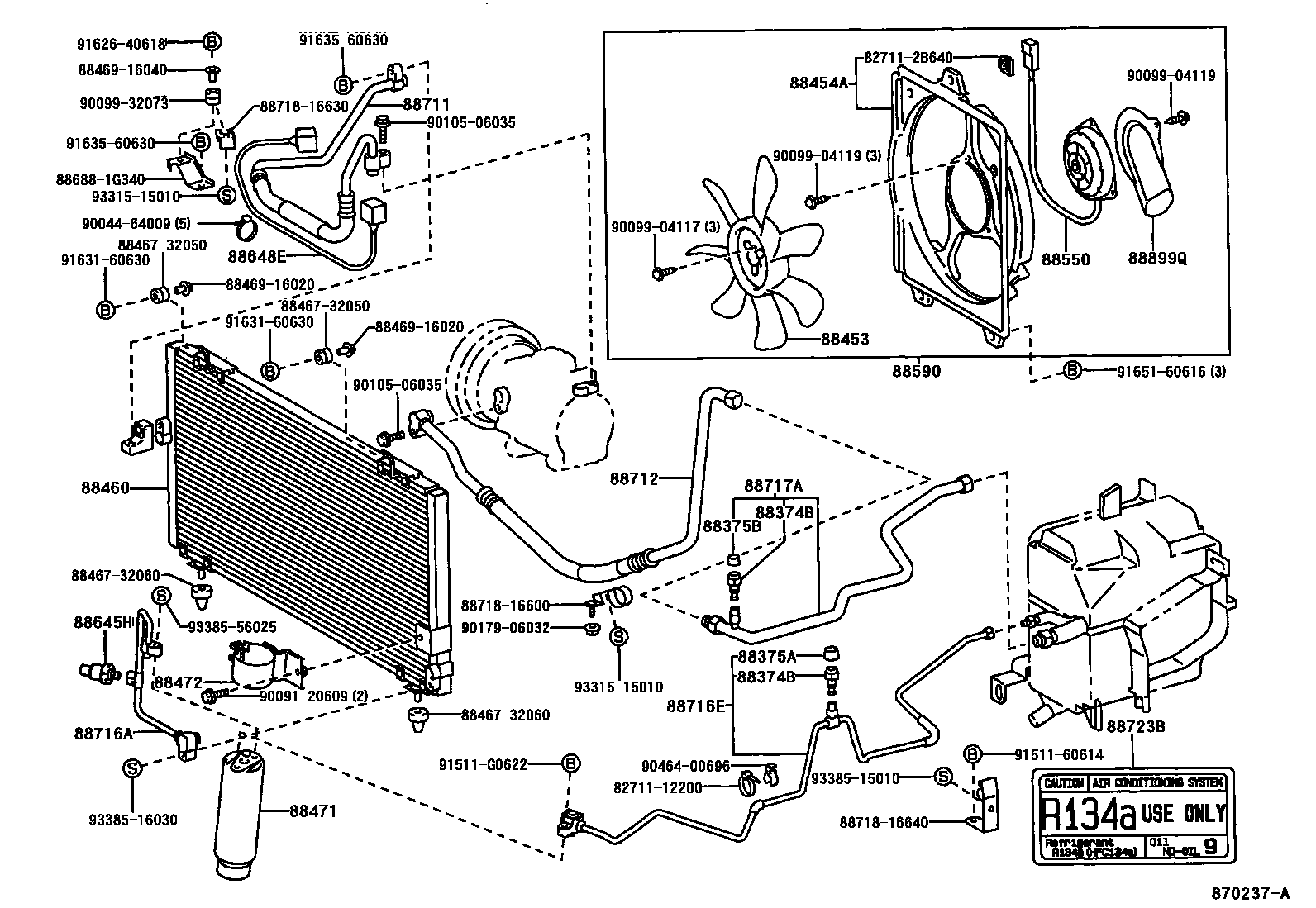

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1MAKER OPTION 0002 1MAKER OPTION 0003 1MAKER OPTION 0004 1DEALER OPTION 0005 1DEALER OPTION 0006 1DEALER OPTION 0007 1MAKER OPTION 0008 1MAKER OPTION 0009 1MAKER OPTION 0010 1DEALER OPTION 0011 1DEALER OPTION 0012 1DEALER OPTION 0013 1

88374BVALVE, SERVICE, NO.1

main88374-30010×2iEL5#..GEN199712

88375ACAP, SERVICE VALVE (FOR COOLER PIPE)

main88375-30280iEL5#199409-199712

88375BCAP, SERVICE VALVE, NO.1

main88375-30290iEL5#199409-199712

88453FAN, COOLING (FOR CONDENSER)

main88453-20080iEL5#199409

88454ASHROUD, FAN

main88454-16140iEL5#199409

88460CONDENSER ASSY, COOLER

main88460-16330iEL50..RHD199409-199608

main88460-16340iEL5#..LHD199409-199608

main88460-16420iEL50..RHD..3FC199611-199712

DEALER OPTION

main88460-16421iEL50..RHD199611-199712

MAKER OPTION

main88460-16440iEL5#..LHD199608-199712

main88460-16480iEL50..RHD199712

main88460-16490iEL5#..LHD199712

88471TANK, RECEIVER AIR CONDITIONER

main88471-20050iEL5#199409-199712

sub88471-34010

88472BRACKET, RECEIVER TANK, NO.1

main88472-16130iEL50..RHD199409-199712

main88472-16140iEL5#..LHD199409-199712

88550MOTOR ASSY, BLOWER (FOR CONDENSER)

main16363-74180iEL5#199409

88590BLOWER ASSY, W/SHROUD

main88590-16070iEL5#199409

88645HSWITCH, PRESSURE NO.1

main88645-20050iEL5#199409

88648EWIRING, COOLER

main88648-16220iEL5#199409-199608

main88648-16280iEL50..RHD199608

main88648-16290iEL50..GCC199608

main88648-16300iEL50..LHD..GEN199608

main88648-16310iEL53199608

88711HOSE, COOLER REFRIGERANT DISCHARGE, NO.1

main88711-16260iEL50..RHD199409-199508

MAKER OPTION

main88711-16261iEL50..RHD199508-199608

MAKER OPTION

main88711-16281iEL53199508-199608

MAKER OPTION

main88711-16290iEL5#..LHD199409-199508

MAKER OPTION

main88711-16321iEL50..RHD199409-199608

DEALER OPTION

main88711-16340iEL5#..LHD..GEN199409-199508

DEALER OPTION

main88711-16351iEL53199508-199608

DEALER OPTION

main88711-16370iEL50..RHD199608-199712

MAKER OPTION

main88711-16380iEL53199608-199712

MAKER OPTION

main88711-16390iEL50..LHD199608-199712

MAKER OPTION

main88711-16400iEL50..RHD199608-199712

DEALER OPTION

main88711-16410iEL53199608-199712

DEALER OPTION

main88711-16420iEL50..LHD..GEN199608-199712

DEALER OPTION

main88711-16430iEL50..RHD199712

MAKER OPTION

main88711-16440iEL53199712

MAKER OPTION

main88711-16450iEL50..LHD199712

MAKER OPTION

main88711-16460iEL50..RHD199712

DEALER OPTION

main88711-16470iEL53199712

DEALER OPTION

main88711-16480iEL50..LHD..GEN199712

DEALER OPTION

88712HOSE, COOLER REFRIGERANT SUCTION, NO.1

main88712-16390iEL50..RHD199409-199608

main88712-16460iEL53199508-199608

main88712-16470iEL50..GCC199409-199605

main88712-16471iEL50..GCC199605-199608

main88712-16480iEL50..LHD..GEN199508-199605

main88712-16481iEL50..LHD..GEN199605-199608

main88712-16520iEL50..RHD199608

sub88712-16530

main88712-16570iEL53199608

main88712-16580iEL50..LHD199608

88716APIPE, COOLER REFRIGERANT LIQUID, A

main88716-1G030iEL50..RHD199409-199712

main88716-1G040iEL5#..LHD199409-199712

main88716-1G410iEL50..RHD199712

main88716-1G420iEL5#..LHD199712

88716EPIPE, COOLER REFRIGERANT LIQUID, E

main88716-16880iEL50..RHD199409-199611

MAKER OPTION

main88716-16881iEL50..RHD199611

MAKER OPTION

main88716-1G010iEL53199508-199608

MAKER OPTION

main88716-1G020iEL5#..LHD199409-199508

MAKER OPTION

main88716-1G080iEL50..RHD199409

DEALER OPTION

main88716-1G120iEL50..LHD..GEN199508-199712

DEALER OPTION

main88716-1G140iEL53199508-199608

DEALER OPTION

main88716-1G340iEL53199608-199712

MAKER OPTION

main88716-1G380iEL5#..LHD..GEN199712

DEALER OPTION

88717APIPE, COOLER REFRIGERANT SUCTION, A

main88717-16230iEL50..RHD199409

main88717-16250iEL53199508-199608

main88717-16260iEL5#..LHD199409-199508

main88717-16300iEL53199608-199712

88723BLABEL, COOLER SERVICE CAUTION

main88723-16050iEL5#199409-199608

main88723-20040iEL5#199608

88899QPLATE, COVER

main88899-16020iEL5#199409

8271112200WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-12200

827112B640WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-2B640

8846732050CUSHION, COOLER CONDENSER, NO.1

main88467-32050

8846732060CUSHION, COOLER CONDENSER, NO.1

main88467-32060

8846916020SWITCH, PRESSURE CONTROL

main88469-16020

8846916040SWITCH, PRESSURE CONTROL

main88469-16040

886881G340BRACKET, COOLER DIAPHRAGM

main88688-1G340

8871816600PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-16600

8871816630PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-16630

8871816640PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-16640

9004464009

main90044-64009

9009120609

main90091-20609

9009904117

main90099-04117

9009904119

main90099-04119

9009932073

main90099-32073

9010506035

main90105-06035

9017906032

main90179-06032

9046400696

main90464-00696

9151160614

main91511-60614

91511G0622

main91511-G0622

9162640618

main91626-40618

9163160630

main91631-60630

9163560630

main91635-60630

9165160616

main91651-60616

9331515010

main93315-15010

9338515010

main93385-15010

9338516030

main93385-16030

9338556025

main93385-56025

47 parts on this diagram · 13 diagrams in section
