HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

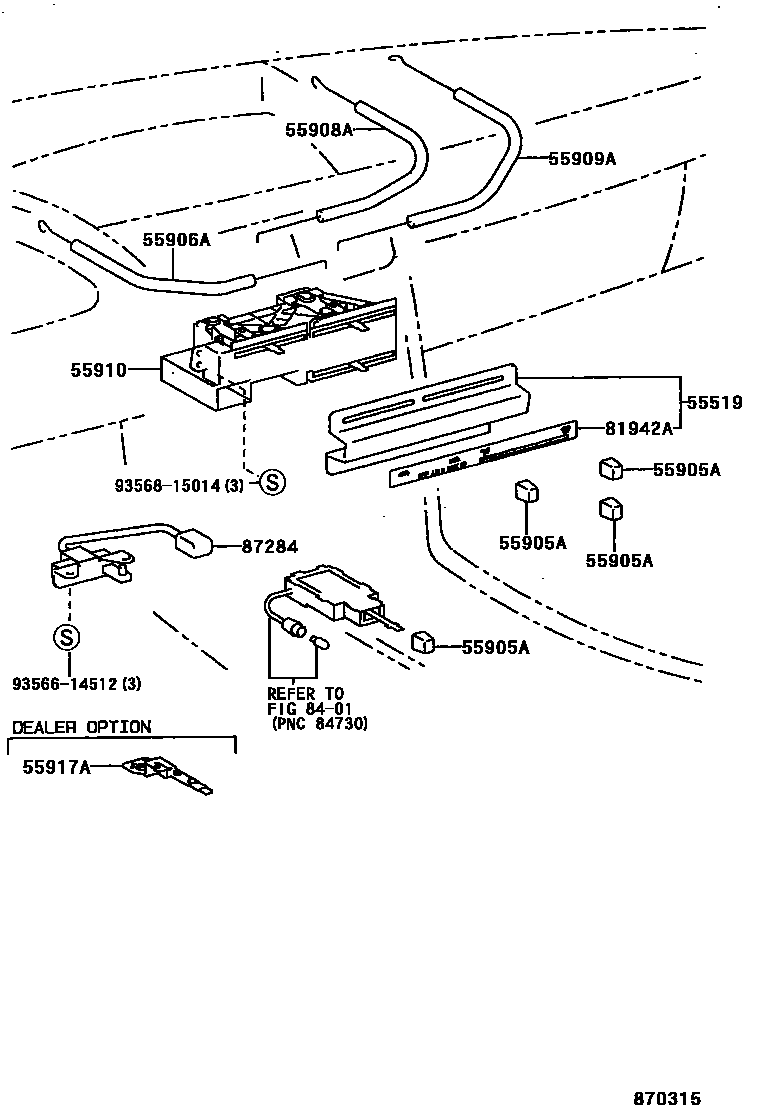

Parts diagram
55519PLATE, HEATER CONTROL NAME
main55519-10160i199608-199712
W(BOOST VENTILATOR)
main55519-16090i199608-199712
main55519-16110i199409-199608
main55519-16130i199409-199608
W(BOOST VENTILATOR)
main55519-16140i199409-199608
main55519-16160i199409-199608
W(BOOST VENTILATOR)
main55519-16190i199608-199712
sub55519-16250
main55519-16210i199608-199712
W(BOOST VENTILATOR)
main55519-16220i199712
main55519-16230i199712
W(COOLER)
sub55519-16220
main55519-16240i199712
W(BOOST VENTILATOR & COOLER)
main55519-16250i199712
main55519-16260i199712
W(COOLER)
sub55519-16250
main55519-16270i199712
W(BOOST VENTILATOR & COOLER)
55905AKNOB, HEATER CONTROL
main55905-89115i199409-199608
main55921-10040i199608-199712
W(BOOST VENTILATOR)
main55921-10050i199608-199712
W(BOOST VENTILATOR)
55906ACABLE SUB-ASSY, DEFROSTER DAMPER CONTROL
main55906-16090i199409-199608
main55906-16100i199409-199608
main55906-16120i199608
main55906-16130i199608
55908ACABLE SUB-ASSY, AIR INLET DAMPER CONTROL
main55908-16100i199409-199608
main55908-16120i199608
55909ACABLE SUB-ASSY, AIRMIX DAMPER CONTROL
main55909-16100i199409-199608
main55909-16110i199409-199608
main55909-16130i199608
main55909-16140i199608
55910CONTROL ASSY, HEATER OR BOOST VENTILATOR
main55910-10430i199608-199712
W(BOOST VENTILATOR)
main55910-10440i199608-199712
W(BOOST VENTILATOR & COOLER)
main55910-16200i199409-199608
main55910-16210i199409-199608
W(BOOST VENTILATOR)
main55910-16220i199409-199608
main55910-16230i199409-199608
W(BOOST VENTILATOR)
main55910-16250i199409-199608
W(BOOST VENTILATOR & COOLER)
main55910-16260i199409-199608
W(BOOST VENTILATOR & COOLER)
main55910-16270i199608-199712
main55910-16280i199608-199712
main55910-16290i199608-199712
W(BOOST VENTILATOR)
main55910-16300i199608-199712
W(BOOST VENTILATOR & COOLER)
main55910-16310i199712
sub55910-16270
main55910-16320i199712
W(BOOST VENTILATOR)
sub55910-10430
main55910-16330i199712
W(BOOST VENTILATOR & COOLER)
sub55910-10440
main55910-16340i199712
main55910-16350i199712
W(BOOST VENTILATOR)
main55910-16360i199712
W(BOOST VENTILATOR & COOLER)
55917ALEVER, TEMPERATURE DAMPER CONTROL
main55917-16070i199409-199610
81942ASHEET, HEATER CONTROL NAME, NO.1
main81942-10060i199608-199712
W(BOOST VENTILATOR & COOLER)
main81942-16200i199409-199608
main81942-16210i199409-199608
W(BOOST VENTILATOR & COOLER)
main81942-16230i199409-199608
main81942-16240i199409-199608
W(BOOST VENTILATOR & COOLER)
main81942-16260i199608-199708
sub81942-16261
main81942-16261i199708-199712
main81942-16270i199608-199708
sub81942-16271
main81942-16271i199708-199712
main81942-16300i199608-199712
W(BOOST VENTILATOR & COOLER)
main81942-16310i199712
main81942-16320i199712
W(BOOST VENTILATOR & COOLER)
main81942-16330i199712
main81942-16340i199712
W(BOOST VENTILATOR & COOLER)
8401
87284RESISTOR SUB-ASSY, VARIABLE
main88032-10090i199608
main88032-16120i199409-199608
9356614512
main93566-14512
9356815014
main93568-15014

12 parts on this diagram · 3 diagrams in section
