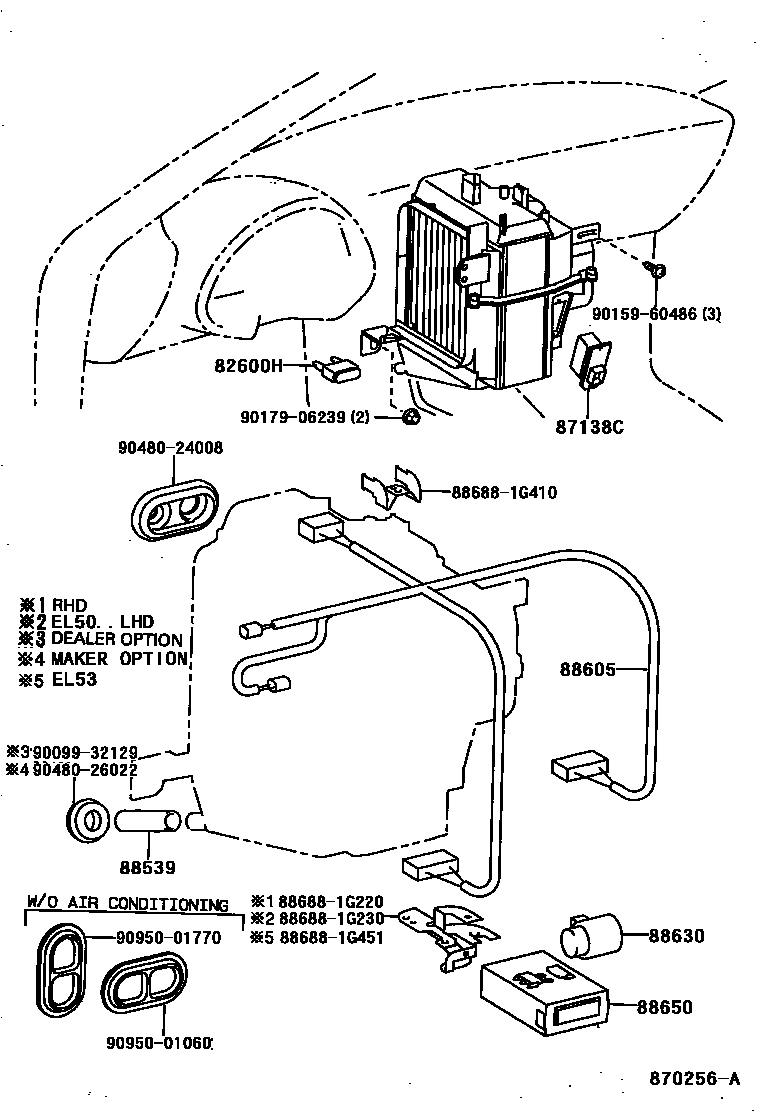

HEATING & AIR CONDITIONING - COOLER UNIT

0001 1 0002 1 0003 1

82600HFUSE, FUSE BLOCK

main90982-09009iEL5#199409

10A,MINI FUSE,RED

87138CRESISTOR, BLOWER

main87138-16140iEL5#199409

88539HOSE, COOLER UNIT DRAIN, NO.1

main88539-16040iEL5#199409

sub88539-08010

88605HARNESS SUB-ASSY, COOLER WIRING, NO.1

main88605-1S040iEL50199409

COOLER SW.=W/O ECON

main88605-1S050iEL50199409

COOLER SW.=W/ECON

main88605-1S060iEL53199508

W(POWER STEERING) & COOLER SW.=W/O ECON

main88605-1S070iEL53199508

COOLER SW.=W/O ECON

main88605-1S080iEL53199409-199508

COOLER SW.=W/O ECON

main88605-1S090iEL53199409-199508

COOLER SW.=W/ECON

main88605-1S240iEL53199508

W(POWER STEERING) & COOLER SW.=W/ECON

main88605-1S250iEL53199508

COOLER SW.=W/ECON

88630RELAY ASSY, COOLER

main88630-95702iEL5#199409

88650AMPLIFIER ASSY, COOLER STABILIZER

main88650-10450iEL50199608

main88650-10470iEL53199608

W(POWER STEERING)

main88650-16560iEL53199508

main88650-16590iEL53199409-199508

main88650-16600iEL50199409-199608

main88650-16620iEL53199508-199608

W(POWER STEERING)

main88650-16670iEL53199608

W(POWER STEERING) & COOLER SW.=W/ECON

main88650-1E020iEL53199508

COOLER SW.=W/ECON

main88650-1E030iEL53199508-199608

W(POWER STEERING) & COOLER SW.=W/ECON

886881G220BRACKET, COOLER DIAPHRAGM

main88688-1G220

886881G230BRACKET, COOLER DIAPHRAGM

main88688-1G230

886881G410BRACKET, COOLER DIAPHRAGM

main88688-1G410

886881G451BRACKET, COOLER DIAPHRAGM

main88688-1G451

9009932129

main90099-32129

9015960486

main90159-60486

9017906239

main90179-06239

9048024008

main90480-24008

9048026022

main90480-26022

9095001060

main90950-01060

9095001770

main90950-01770

17 parts on this diagram · 3 diagrams in section
