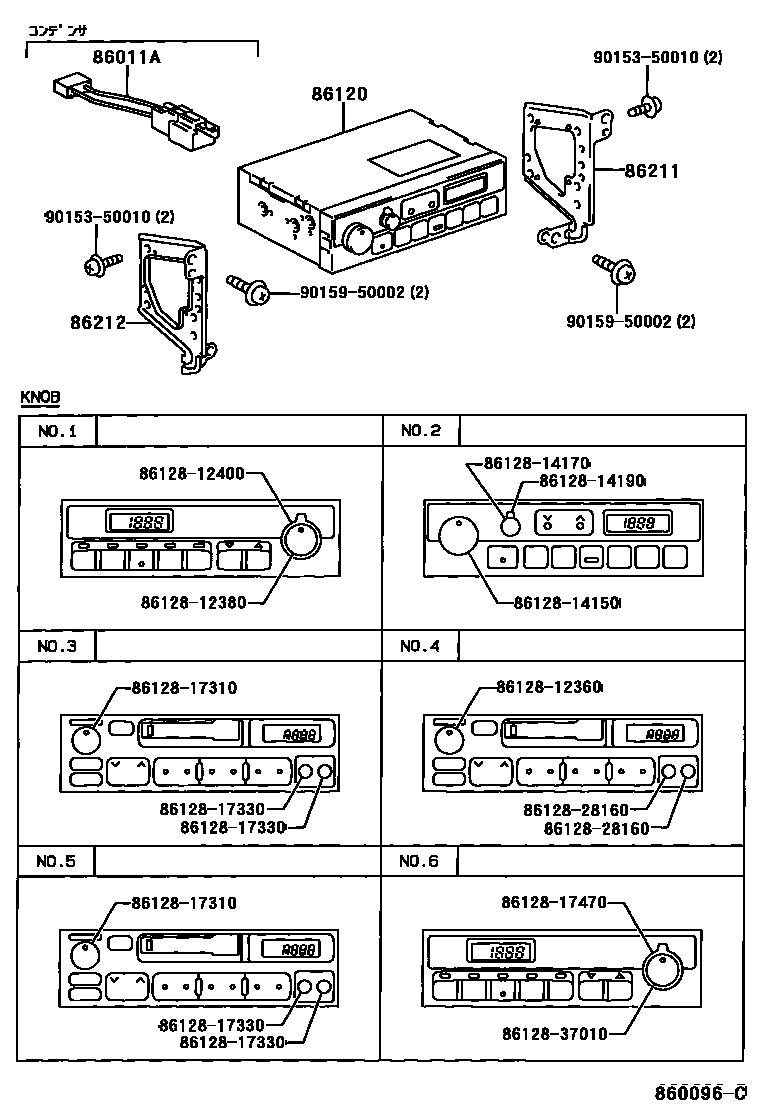

RADIO RECEIVER & AMPLIFIER & CONDENSER

0001 1 0002 1

86011ACONDENSER, RADIO SETTING

main90980-04116iEL53199712

86120RECEIVER ASSY, RADIO

main86120-08020iEL5#..GEN199712

FUJITSU TEN,ID=11801,AM/FM CD,NO.10

main86120-16650iEL5#..GEN199712

MATSUSHITA, ID=52201,NO.7

main86120-16660iEL50199712

FUJITSU TEN,ID=17409,AM/FM MULTIPLEX ETR CASSETTE (AM=9KHZ STEP) 2 SPEAKER,NO.8

main86120-16670iEL5#..GEN199712

FUJITSU TEN,ID=17410,AM/FM MULTIPLEX ETR CASSETTE (AM=10KHZ STEP) 2 SPEAKER,NO.8

main86120-16680iEL50..GCC199712

MATSUSHITA, ID=57206,AM/FM/SW MULTIPLEX CASSETTE (AM=9KHZ STEP),NO.9

main86120-1A040iEL50199409

FUJITSU TEN,ID=12101,AM ETR (AM=9KHZ STEP),NO.1

main86120-2A070iEL5#..GEN199409-199712

MATSUSHITA,AM/FM,NO.2

main86120-2A190iEL50..GCC199409-199508

MATSUSHITA,ID=57202,MW/SW ETR CST 2SP,NO.3

sub86120-35100

main86120-2B380iEL50199409-199712

FUJITSU TEN,ID=17202,AM/FM MULTIPLEX ETR CASSETTE (AM=9KHZ STEP) 2 SPEAKER,NO.4

main86120-35090iEL5#..GEN199409-199712

MATSUSHITA,ID=57400,AM/FM MULTIPLEX ETR CASSETTE (AM=10KHZ STEP) 2 SPEAKER,NO.5

main86120-35100iEL50..GCC199508-199712

MATSUSHITA,ID=57401,AM/FM/SW MULTIPLEX CASSETTE (AM=9KHZ STEP),NO.5

main86120-35110iEL5#..GEN199409

MATSUSHITA,ID=52101,AM ETR (AM=10KHZ STEP),NO.6

86211BRACKET, RADIO, NO.1

main86211-16260iEL5#199409

86212BRACKET, RADIO, NO.2

main86212-16260iEL5#199409

8612812360KNOB, RADIO RECEIVER

main86128-12360

8612812380KNOB, RADIO RECEIVER

main86128-12380

8612812400KNOB, RADIO RECEIVER

main86128-12400

8612814150KNOB, RADIO RECEIVER

main86128-14150

8612814170KNOB, RADIO RECEIVER

main86128-14170

8612814190KNOB, RADIO RECEIVER

main86128-14190

8612817310KNOB, RADIO RECEIVER

main86128-17310

8612817330KNOB, RADIO RECEIVER

main86128-17330

8612817470KNOB, RADIO RECEIVER

main86128-17470

8612828160KNOB, RADIO RECEIVER

main86128-28160

8612837010KNOB, RADIO RECEIVER

main86128-37010

9015350010

main90153-50010

9015950002

main90159-50002

17 parts on this diagram · 2 diagrams in section
