ELECTRONIC FUEL INJECTION SYSTEM

85910ARELAY ASSY, CIRCUIT OPENING (FOR EFI)

main90987-02009iEL53199409

85910FRELAY, COMPUTER (FOR EFI)

main90987-02009iEL53199409

89420SENSOR ASSY, VACUUM

main89420-0W020iEL53199604-199608

main89420-16030iEL53199409-199508

main89420-16060iEL53199508-199712

main89420-16060iEL53199604-199608

NIPPON DENSO

main89420-16090iEL53199712

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-16010iEL53199705

DENSO

main89422-20010iEL53199409-199705

main89422-22030iEL53199705

SAAMOSTA

89424SENSOR, INLET AIR TEMPERATURE (FOR E.F.I.)

main89424-12010iEL53199409

89452SENSOR, THROTTLE POSITION (FOR E.F.I.)

main89452-10040iEL53199702-199808

sub89452-20130

main89452-20130iEL53199608-199702

main89452-22090iEL53199409-199608

89661COMPUTER, ENGINE CONTROL

main89661-16151iEL53..5F199409-199508

main89661-16370iEL53..4FC199409-199508

main89661-16500iEL53199508-199608

main89661-16550iEL53199608-199712

main89661-16650iEL53..5F199712

main89661-16660iEL53..4FC199712

89667BRACKET, ENGINE CONTROL COMPUTER

main89667-16060iEL53199409

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-16070iEL53199409-199608

main89668-16080iEL53..4FC199409-199712

9011906120

main90119-06120

9016750028

main90167-50028

9017906036

main90179-06036

9043012005

main90430-12005

9043012221

main90430-12221

91635G0616

main91635-G0616

9331915010

main93319-15010

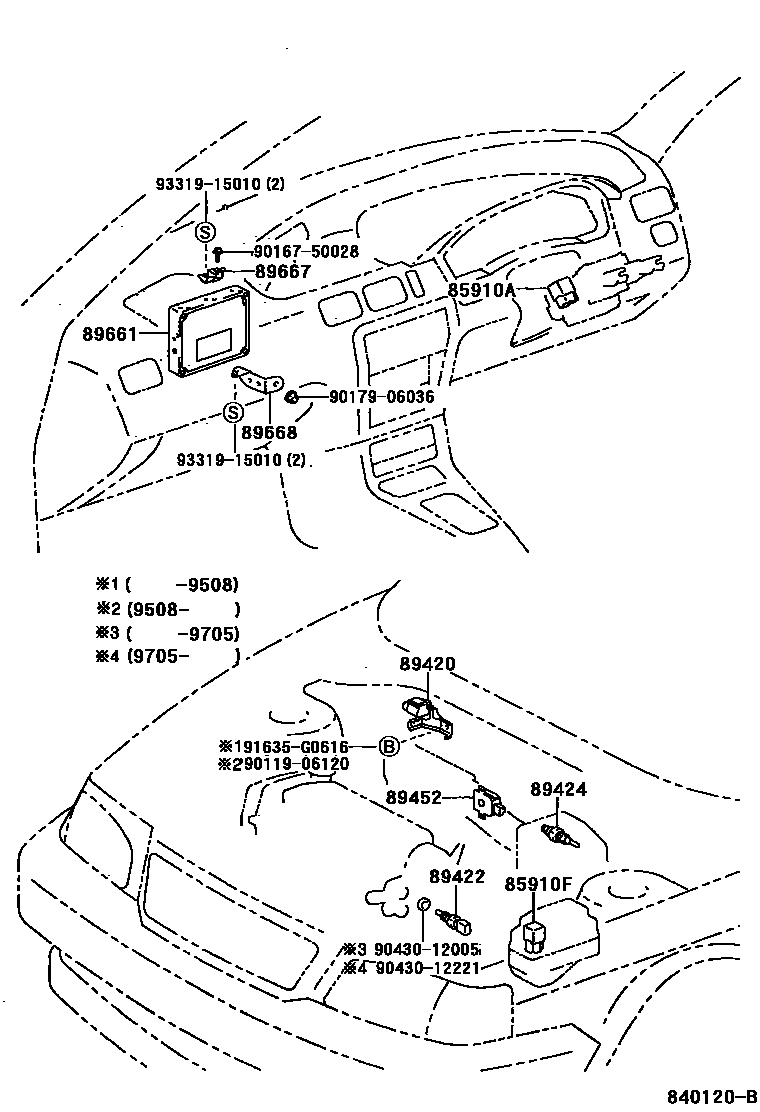

16 parts on this diagram · 1 diagram in section
