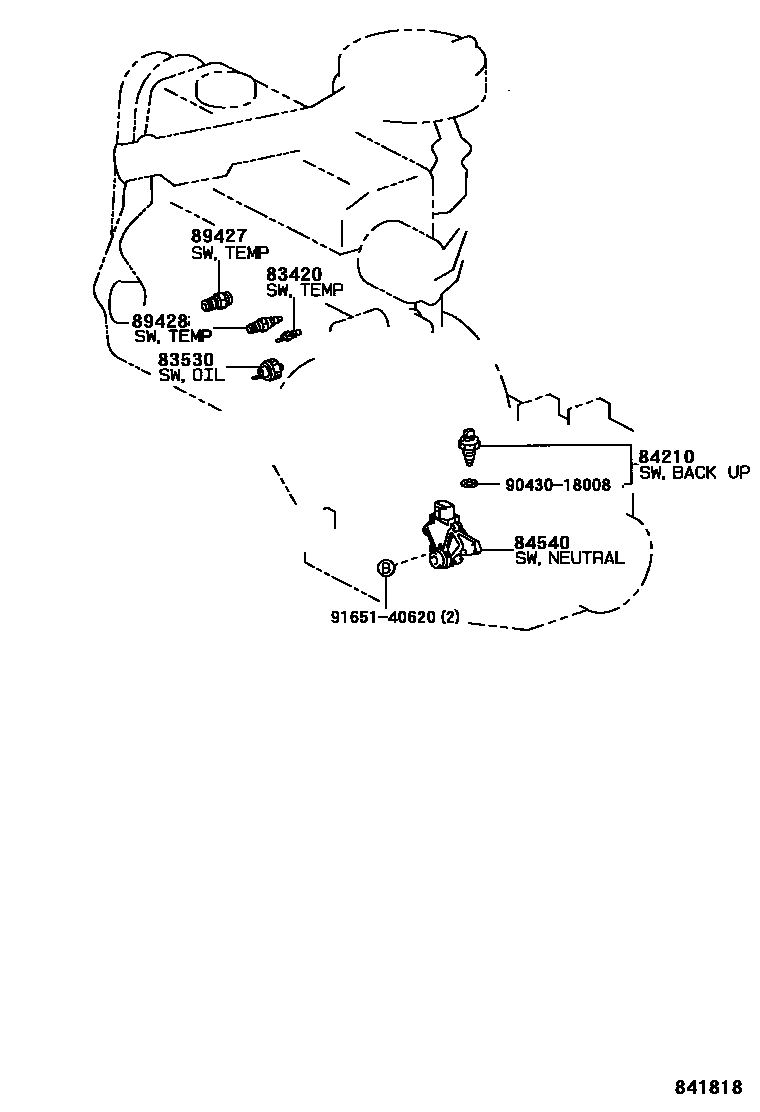

SWITCH & RELAY & COMPUTER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1W/O(AIR BAG) 0010 1W(AIR BAG) 0011 1 0012 1 0013 1

83420GAGE ASSY, WATER TEMPERATURE SENDER

main83420-16020iEL50199409-199608

main83420-20040iEL50..LHD..GEN199409-199705

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-14060iEL5#199409-199411

sub83530-30090

main83530-28020iEL5#199803

main83530-30090iEL5#199411-199803

sub83530-60020

84210SWITCH ASSY, BACK-UP LAMP

main84210-12040iEL5#..5F199409

sub84210-52050

84540SWITCH ASSY, NEUTRAL START

main84540-16050iEL5#..ATM199409

89427SWITCH, TEMPERATURE DETECT

main89427-12090iEL50..5F..GCC199508-199705

89428SWITCH, TEMPERATURE DETECT, NO.2

main89428-12160iEL5#199409

9043018008

main90430-18008

9165140620

main91651-40620

8 parts on this diagram · 13 diagrams in section
