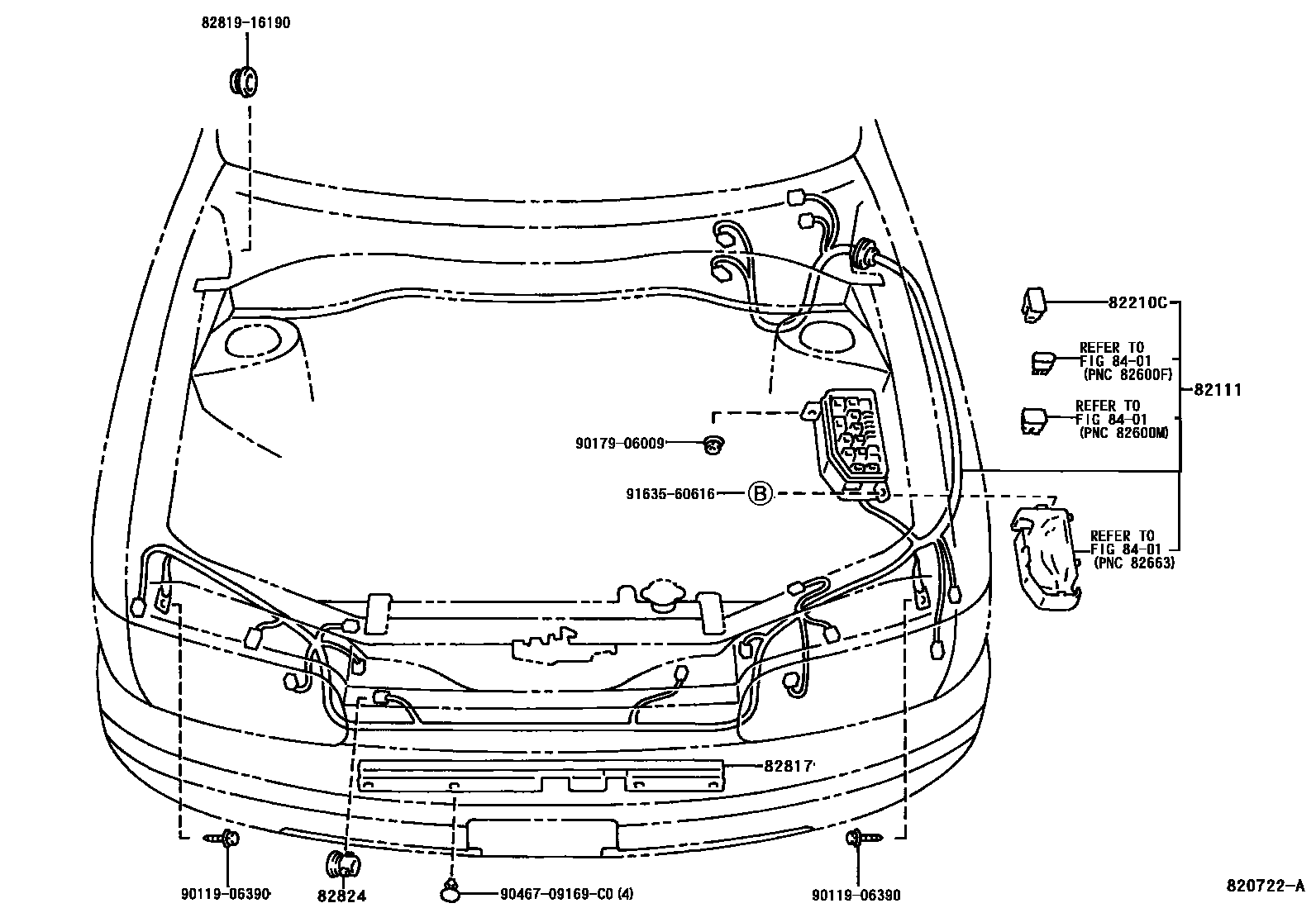

WIRING & CLAMP

0001 1ENGINE ROOM WIRE 0002 1ENGINE ROOM WIRE 0003 1ENGINE WIRE 0004 1ENGINE WIRE 0005 1INSTRUMENT WIRE 0006 1INSTRUMENT WIRE 0007 1DOOR, ROOF WIRE 0008 1FLOOR, LUGGAGE WIRE 0009 1CABLE BOND 0010 1CLAMP & PROTECTOR 0011 1CLAMP & BRACKET 0012 1CLAMP & BRACKET 0013 1REPAIR WIRE

82111WIRE, ENGINE ROOM MAIN

main82111-1G520iEL50..RHD199409-199608

main82111-1G521iEL50..RHD199608-199712

main82111-1G530iEL50..LHD199409-199508

main82111-1G531iEL50..LHD199508-199608

main82111-1G532iEL50..LHD199608-199712

main82111-1G540iEL53199409-199608

main82111-1G541iEL53199608-199712

main82111-1S070iEL50..RHD199712

W(*80)

main82111-1S080iEL50..LHD199712

W(*80)

main82111-1S090iEL50..GCC199712

W(ABS)

main82111-1S100iEL53199712

W(*80)

82210CFUSIBLE LINK

main90982-08190iEL50..GCC199712

60A,TERM.:FEMALE,YEL

main90982-08202iEL50199508

60A,TERM.:MALE,YEL

main90982-08227iEL53199409-199508

50A,TERM.:FEMALE,RED

main90982-08246iEL53199508

100A,TERM.:MALE,BLUE

main90982-08277iEL53199508-199712

50A,TERM.:FEMALE,RED

main90982-08280iEL50..RHD199608-199712

30A,TERM.:FEMALE,PNK

main90982-08281iEL5#..LHD199608

40A,TERM.:FEMALE,GRN

main90982-08283×3iEL50..RHD199608

30A,TERM.:FEMALE,PNK

main90982-08284iEL50..RHD199608

40A,TERM.:FEMALE,GRN

82817PROTECTOR, WIRING HARNESS, NO.1

main82817-16480iEL5#199409-199712

82824CONNECTOR, WIRING HARNESS

main82824-20050iEL5#199409

8401

8281916190GROMMET, WIRING HARNESS

main82819-16190

9011906390

main90119-06390

9017906009

main90179-06009

9046709169C0

main90467-09169C0

9163560616

main91635-60616

10 parts on this diagram · 13 diagrams in section
