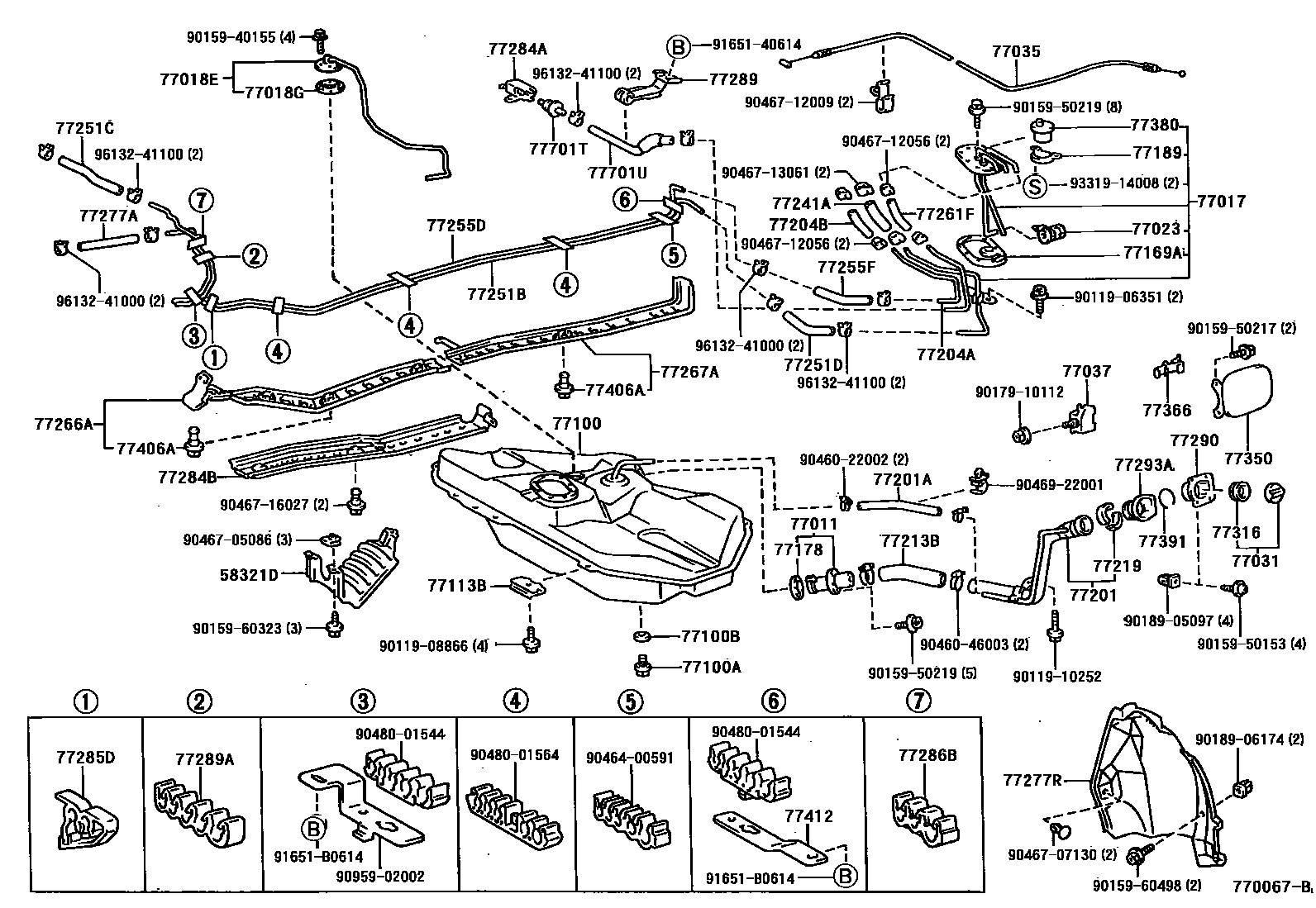

FUEL TANK & TUBE
58321DINSULATOR, REAR FLOOR HEAT, NO.1
77011PIPE SUB-ASSY, FUEL TANK FILLER, LOWER
77017TUBE SUB-ASSY, FUEL AND EVAPORATION VENT
77018ETUBE SUB-ASSY, FUEL TANK EVAPORATION VENT
77018GGASKET, FUEL TANK EVAP/VENT TUBE
77023FILTER SUB-ASSY, FUEL SUCTION TUBE
NIFCO
KYOSAN DENKI
77031CAP ASSY, FUEL TANK
77035CABLE SUB-ASSY, FUEL LID LOCK CONTROL
77037LOCK SUB-ASSY, FUEL FILLER OPENING LID
77100TANK ASSY, FUEL
77100APLUG(FOR FUEL TANK)
77100BGASKET(FOR FUEL TANK)
77113BPLATE, FUEL TANK SIDE
77169AGASKET, FUEL SUCTION TUBE SET
77178GASKET, FUEL TANK FILLER PIPE, LOWER
77189RETAINER, FUEL CHECK VALVE
77201PIPE SUB-ASSY, FUEL TANK INLET
77201AHOSE, FUEL, NO.1(FOR FUEL TANK INLET PIPE)
L=280
77204BHOSE, FUEL(FOR FUEL RETURN)
77213BHOSE, FUEL TANK TO FILLER PIPE
77219COVER, FUEL TANK FILLER PIPE
77241AHOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1)
77251BTUBE, FUEL MAIN
COLOMBIA SPEC
SEVERE USAGE PACKAGE
77251CHOSE, FUEL, NO.1(FOR FUEL MAIN TUBE)
L=200(*H,L=140)
77251DHOSE, FUEL, NO.2(FOR FUEL MAIN TUBE)
L=130
77255DTUBE, FUEL RETURN
COLOMBIA SPEC;SEVERE USAGE PACKAGE
77255FHOSE, FUEL, NO.2 (FOR FUEL RETURN TUBE)
77261FHOSE, FUEL, NO.2 (FOR FUEL TANK TO CANISTER TUBE)
L=110
L=170
*H,L=80
L=80
77266APROTECTOR, FUEL TUBE, NO.1
77267APROTECTOR, FUEL TUBE, NO.2
77277AHOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1)
L=400(*H,L=380)
77277RPROTECTOR, FUEL TANK FILLER PIPE
77284APROTECTOR, FUEL TUBE, NO.3
77284BPROTECTOR, FUEL TUBE, NO.3
77285DCLAMP, FUEL TUBE, NO.1
77286BCLAMP, FUEL TUBE W/GROMMET, NO.2
77289HOLDER, FUEL TANK PIPE SETTING
77289ACLAMP, FUEL TUBE W/GROMMET, NO.3
SEVERE USAGE PACKAGE
77290SHIELD ASSY, FUEL TANK FILLER PIPE
W(BACK DOOR OPENER)
77293ASHIELD, FUEL TANK FILLER PIPE, NO.3
W(BACK DOOR OPENER)
77316GASKET, FUEL TANK CAP
77350LID ASSY, FUEL FILLER OPENING
W(BACK DOOR OPENER)
77366SPRING, FUEL FILLER OPENING LID HINGE
77380VALVE ASSY, FUEL CUT OFF
77391RING, FUEL INLET BOX
77406ACLIP(FOR FUEL TUBE PROTECTOR)
77412SUPPORT, FUEL TUBE GROMMET, NO.2
77701TVALVE, CHECK (FOR MAIN FUEL TANK)
77701UHOSE, FUEL (FOR CHECK VALVE)
9011906351
9011908866
9011910252
9015940155
9015950153
9015950217
9015950219
9015960323
9015960498
9017910112
9018905097
9018906174
9046022002
9046046003
9046400591
9046705086
9046707130
9046712009
9046712056
9046713061
9046716027
9046922001
9048001544
9048001564
9095902002
9165140614
91651B0614
9331914008
9613241000
9613241100
80 parts on this diagram · 5 diagrams in section
