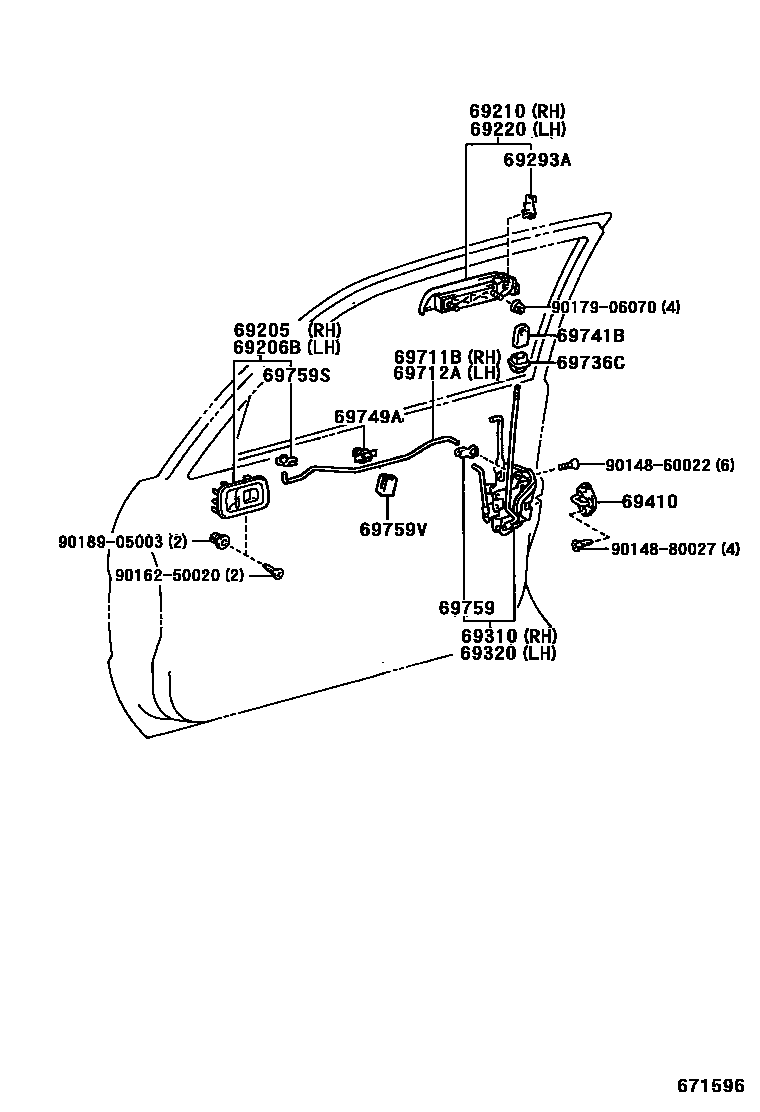

FRONT DOOR LOCK & HANDLE

69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH

main69205-16100-B0iEL5#199608

SHADOW GRAY,TRIM1#

main69205-16100-E0iEL5#199608-199805

OAK,TRIM4#

main69205-16100-E1iEL5#199805

SANDAL WOOD,TRIM4#

main69206-10070-E0iEL5#199409-199608

OAK,TRIM4#

69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH

main69205-10070-E0iEL5#199409-199608

OAK,TRIM4#

main69206-16100-B0iEL5#199608

SHADOW GRAY,TRIM1#

main69206-16100-E0iEL5#199608-199805

OAK,TRIM4#

main69206-16100-E1iEL5#199805

SANDAL WOOD,TRIM4#

69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH

main69210-16090iEL5#199409-199503

main69210-16091iEL5#199503-199901

main69210-16120iEL5#199901

69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH

main69220-16090iEL5#199409-199503

main69220-16091iEL5#199503-199901

main69220-16120iEL5#199901

69293ASNAP, FRONT DOOR OUTSIDE HANDLE

main69293-10010iEL5#199608

BROWN

main69293-10020iEL5#199608

PINK

69310LOCK ASSY, FRONT DOOR, RH

main69030-16200iEL5#..LHD199508

W(POWER WINDOW)

main69310-16350iEL5#199409

69320LOCK ASSY, FRONT DOOR, LH

main69040-16200iEL5#..LHD..GEN199409-199508

W(POWER WINDOW)

main69320-16350iEL5#199409

69410PLATE ASSY, FRONT DOOR LOCK STRIKER

main69410-87001×2iEL5#199409

69711BLINK, FRONT DOOR LOCK REMOTE CONTROL, RH

main69711-16090iEL5#199409

69712ALINK, FRONT DOOR LOCK REMOTE CONTROL, LH

main69712-16090iEL5#199409

69736CGUIDE, FRONT DOOR LOCKING LINK

main69736-16040×2iEL5#199409

69741BKNOB, FRONT DOOR LOCK CONTROL

main69741-16030-B0×2iEL5#199608

SHADOW GRAY,TRIM1#

sub69741-87003

sub69741-32020

main69741-16030-E0×2iEL5#199608

OAK,TRIM4#

sub69741-87003

sub69741-32020

main69741-90K00-B2×2iEL5#199508-199608

SHADOW GRAY,TRIM1#

sub69741-89102

sub69741-12040

sub69741-89104

main69741-90K00-B3×2iEL5#199409-199508

GRAY,TRIM1#

sub69741-89102

sub69741-12040

sub69741-89104

main69741-90K00-E3×2iEL5#199409-199608

OAK,TRIM4#

sub69741-89102

sub69741-12040

sub69741-89104

69749ACLAMP, FRONT DOOR LOCK LINK, NO.1

main69749-32020iEL5#..LHD..GEN199409-199508

69759SNAP, DOOR LOCK CONTROL LINK, NO.1

main69759-20040iEL5#199409

YELLOW

main69759-20050iEL5#199409

BROWN

69759SSNAP, FRONT DOOR INSIDE HANDLE

main69759-20060iEL5#199409

GRAY

main69759-20070iEL5#199409

GREEN

69759VSILENCER, FRONT DOOR LOCK LINK

main69759-14010×2iEL5#199409

9014860022

main90148-60022

9014880027

main90148-80027

9016250020

main90162-50020

9017906070

main90179-06070

9018905003

main90189-05003

21 parts on this diagram · 1 diagram in section
