E
EPC Data

FRONT DOOR PANEL & GLASS

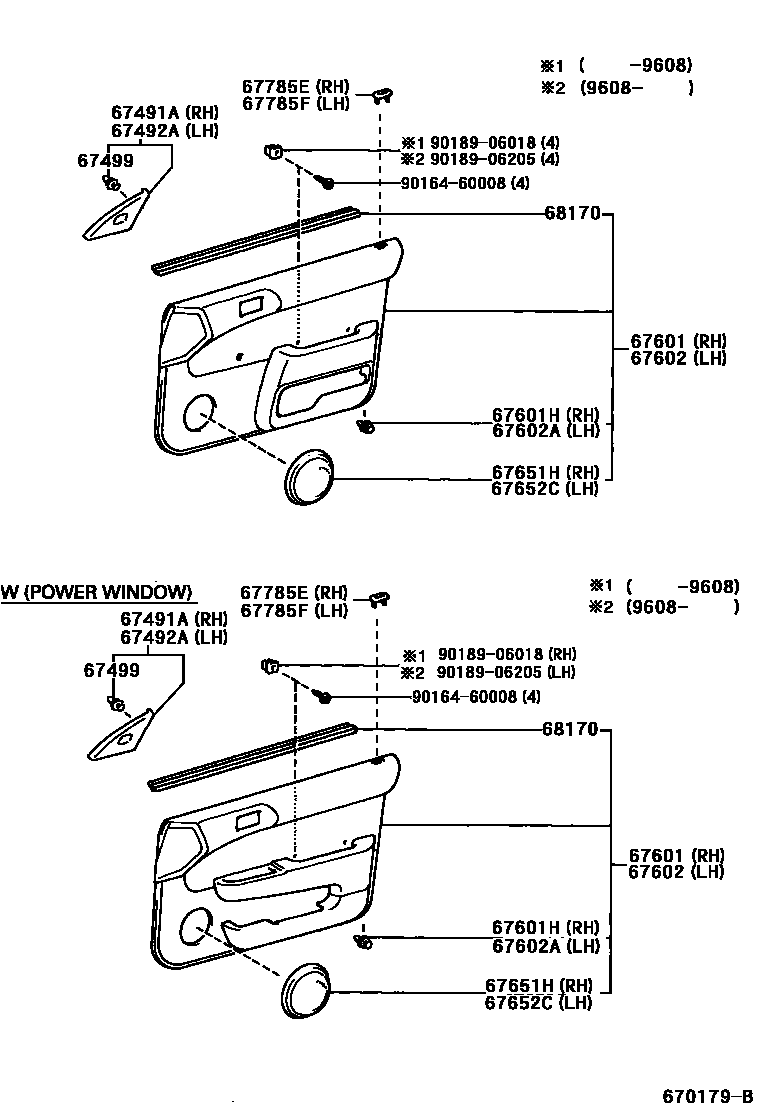

Parts diagram
67491AGARNISH, FRONT DOOR LOWER FRAME BRACKET, RH
main67491-16110i199409-199712
main67491-16111i199712-199907
sub67491-16110
main67491-16160i199409-199712
W(LEVER REMOTE CONTROL)
main67491-16161i199712-199907
W(LEVER REMOTE CONTROL)
sub67491-16160
67492AGARNISH, FRONT DOOR LOWER FRAME BRACKET, LH
main67492-16110i199409-199712
main67492-16111i199712-199907
sub67492-16110
main67492-16160i199409-199712
W(LEVER REMOTE CONTROL)
main67492-16161i199712-199907
W(LEVER REMOTE CONTROL)
sub67492-16160
67499RETAINER, FRONT DOOR LOWER FRAME BRACKET GARNISH
main67771-30070i199409-199907
67601BOARD SUB-ASSY, FRONT DOOR TRIM, RH
main67610-1G040-B0i199608-199712
SHADOW GRAY,TRIM1#
sub67610-1G041
main67610-1G040-E0i199608-199712
OAK,TRIM4#
sub67610-1G041
main67610-1G041-B1i199712
SHADOW GRAY,TRIM1#
sub67610-1G241
main67610-1G041-E1i199712
OAK,TRIM4#
sub67610-1G241
main67610-1G050-B0i199608-199712
FABRIC,SHADOW GRAY,TRIM1#
sub67610-1G051
main67610-1G050-E0i199608-199712
FABRIC,OAK,TRIM4#
sub67610-1G051
main67610-1G051-B1i199712
FABRIC,SHADOW GRAY,TRIM1#
sub67610-1G251
main67610-1G051-E1i199712
FABRIC,OAK,TRIM4#
sub67610-1G251
main67610-1G060-B0i199608-199712
FABRIC & W(POWER WINDOW),SHADOW GRAY,TRIM1#
sub67610-1G061
main67610-1G060-E0i199608-199712
FABRIC & W(POWER WINDOW),OAK,TRIM4#
sub67610-1G061
main67610-1G061-B1i199712
FABRIC & W(POWER WINDOW),SHADOW GRAY,TRIM1#
main67610-1G061-E1i199712
FABRIC & W(POWER WINDOW),OAK,TRIM4#
main67610-1G070-B0i199608-199712
W(POWER WINDOW),SHADOW GRAY,TRIM1#
sub67610-1G071
main67610-1G070-E0i199608-199712
W(POWER WINDOW),OAK,TRIM4#
sub67610-1G071
main67610-1G071-B1i199712
W(POWER WINDOW),SHADOW GRAY,TRIM1#
main67610-1G071-E1i199712
W(POWER WINDOW),OAK,TRIM4#
main67610-1G240-B0i199608-199712
SHADOW GRAY,TRIM1#
sub67610-1G241
main67610-1G240-E0i199608-199712
OAK,TRIM4#
sub67610-1G241
main67610-1G241-B1i199712
SHADOW GRAY,TRIM1#
main67610-1G241-E1i199712
OAK,TRIM4#
main67610-1G250-B0i199608-199712
FABRIC,SHADOW GRAY,TRIM1#
sub67610-1G251
main67610-1G250-E0i199608-199712
FABRIC,OAK,TRIM4#
sub67610-1G251
main67610-1G251-B1i199712
FABRIC,SHADOW GRAY,TRIM1#
main67610-1G251-E1i199712
FABRIC,OAK,TRIM4#
main67650-16680-B1i199409-199608
FABRIC & W(POWER WINDOW),BLUISH GRAY,TRIM1#
main67650-16680-E1i199409-199608
FABRIC & W(POWER WINDOW),OAK,TRIM4#
main67650-16690-B2i199409-199608
BLUISH GRAY,TRIM1#
main67650-16690-E1i199409-199608
OAK,TRIM4#
main67650-16700-B3i199409-199608
W(POWER WINDOW),BLUISH GRAY,TRIM1#
main67650-16700-E2i199409-199608
W(POWER WINDOW),OAK,TRIM4#
main67650-16730-B1i199409-199608
FABRIC,BLUISH GRAY,TRIM1#
main67650-16730-E1i199409-199608
FABRIC,OAK,TRIM4#
67601HRETAINER, DOOR TRIM, RH
main67771-12050i199608
RED
main67771-16120i199409-199608
main67771-16120i199608
GRAY
67602BOARD SUB-ASSY, FRONT DOOR TRIM, LH
main67050-16090-B0i199608-199712
SHADOW GRAY,TRIM1#
sub67050-16091
main67050-16090-E0i199608-199712
OAK,TRIM4#
sub67050-16091
main67050-16091-B1i199712
SHADOW GRAY,TRIM1#
main67050-16091-E1i199712
OAK,TRIM4#
main67050-16100-B0i199608-199712
FABRIC,SHADOW GRAY,TRIM1#
sub67050-16101
main67050-16100-E0i199608-199712
FABRIC,OAK,TRIM4#
sub67050-16101
main67050-16101-B1i199712
FABRIC,SHADOW GRAY,TRIM1#
main67050-16101-E1i199712
FABRIC,OAK,TRIM4#
main67050-16110-B0i199608-199712
SHADOW GRAY,TRIM1#
sub67050-16111
main67050-16110-E0i199608-199712
OAK,TRIM4#
sub67050-16111
main67050-16111-B1i199712
SHADOW GRAY,TRIM1#
sub67050-16091
main67050-16111-E1i199712
OAK,TRIM4#
sub67050-16091
main67050-16120-B0i199608-199712
FABRIC,SHADOW GRAY,TRIM1#
sub67050-16121
main67050-16120-E0i199608-199712
FABRIC,OAK,TRIM4#
sub67050-16121
main67050-16121-B1i199712
FABRIC,SHADOW GRAY,TRIM1#
sub67050-16101
main67050-16121-E1i199712
FABRIC,OAK,TRIM4#
sub67050-16101
main67050-16130-B0i199608-199712
FABRIC & W(POWER WINDOW),SHADOW GRAY,TRIM1#
sub67050-16131
main67050-16130-E0i199608-199712
FABRIC & W(POWER WINDOW),OAK,TRIM4#
sub67050-16131
main67050-16131-B1i199712
FABRIC & W(POWER WINDOW),SHADOW GRAY,TRIM1#
main67050-16131-E1i199712
FABRIC & W(POWER WINDOW),OAK,TRIM4#
main67050-16140-B0i199608-199712
W(POWER WINDOW),SHADOW GRAY,TRIM1#
sub67050-16141
main67050-16140-E0i199608-199712
W(POWER WINDOW),OAK,TRIM4#
sub67050-16141
main67050-16141-B1i199712
W(POWER WINDOW),SHADOW GRAY,TRIM1#
main67050-16141-E1i199712
W(POWER WINDOW),OAK,TRIM4#
main67620-1G670-B0i199409-199608
FABRIC,BLUISH GRAY,TRIM1#
sub67620-1G730
main67620-1G670-E0i199409-199608
FABRIC,OAK,TRIM4#
sub67620-1G730
main67620-1G680-B1i199409-199608
FABRIC & W(POWER WINDOW),BLUISH GRAY,TRIM1#
main67620-1G680-E1i199409-199608
FABRIC & W(POWER WINDOW),OAK,TRIM4#
main67620-1G690-B2i199409-199608
BLUISH GRAY,TRIM1#
main67620-1G690-E1i199409-199608
OAK,TRIM4#
main67620-1G730-B1i199409-199608
FABRIC,BLUISH GRAY,TRIM1#
main67620-1G730-E1i199409-199608
FABRIC,OAK,TRIM4#
main67620-1G740-B1i199409-199608
BLUISH GRAY,TRIM1#
sub67620-1G690
main67620-1G740-E1i199409-199608
OAK,TRIM4#
sub67620-1G690
main67620-1G790-B1i199409-199608
W(POWER WINDOW),BLUISH GRAY,TRIM1#
sub67620-1G700
main67620-1G790-E1i199409-199608
W(POWER WINDOW),OAK,TRIM4#
sub67620-1G700
67602ARETAINER, DOOR TRIM, LH
main67771-12050i199608
RED
main67771-16120i199608
GRAY
main67771-16120i199409-199608
67651HGRILLE, SPEAKER DOOR, RH
main67651-16070-B0i199409-199608
BLUISH GRAY,TRIM1#
sub67651-16070
main67651-16070-B1i199608
SHADOW GRAY,TRIM1#
sub67651-16070
main67651-16070-E0i199409
OAK,TRIM4#
sub67651-16070
67652CGRILLE, SPEAKER DOOR, LH
main67651-16070-B0i199409-199608
BLUISH GRAY,TRIM1#
sub67651-16070
main67651-16070-B1i199608
SHADOW GRAY,TRIM1#
sub67651-16070
main67651-16070-E0i199409
OAK,TRIM4#
sub67651-16070
67785EHOLDER, FRONT DOOR LOCK CONTROL KNOB, RH
main69751-12050-B0i199608
SHADOW GRAY,TRIM1#
sub69751-12050
main69751-12050-E0i199608
OAK,TRIM4#
sub69751-12050
67785FHOLDER, FRONT DOOR LOCK CONTROL KNOB, LH
main69751-12050-B0i199608
SHADOW GRAY,TRIM1#
sub69751-12050
main69751-12050-E0i199608
OAK,TRIM4#
sub69751-12050
68170WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER
main68171-16110i199409-199608
RH
main68171-16150i199608-199712
RH
main68171-16190i199712
RH
main68172-16140i199409-199608
LH
main68172-16170i199608-199712
LH
main68172-16210i199712
LH
9016460008
main90164-60008
9018906018
main90189-06018
9018906205
main90189-06205

15 parts on this diagram · 2 diagrams in section
