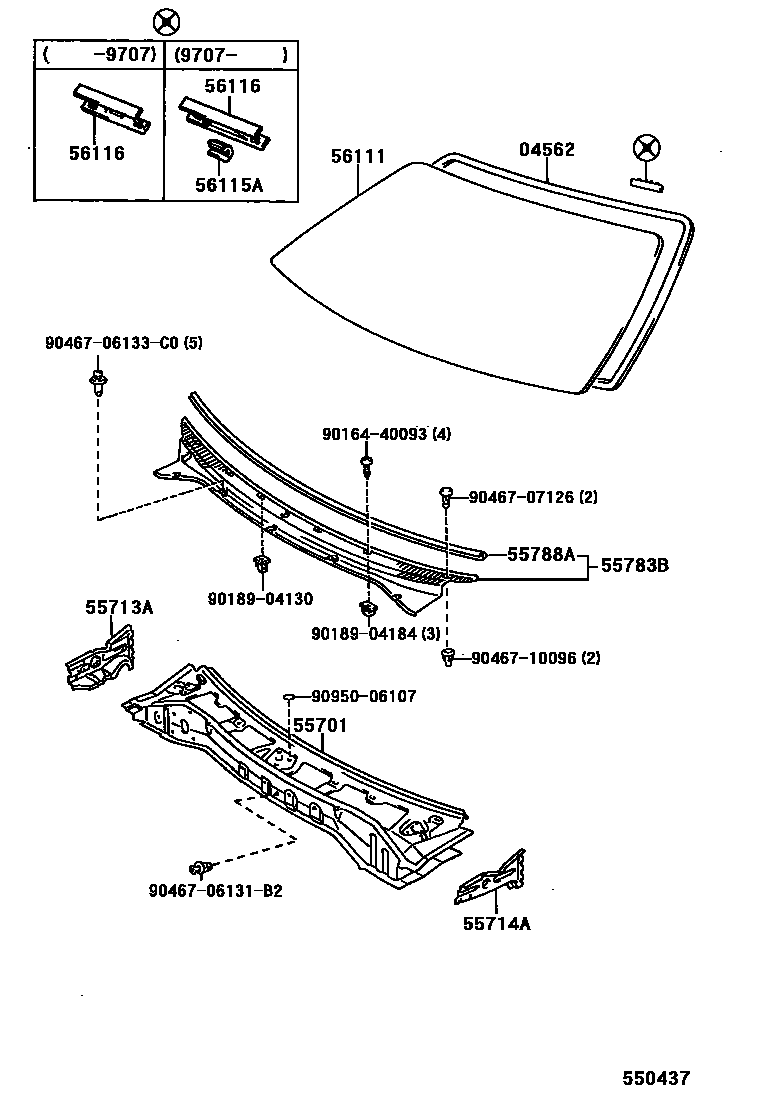

COWL PANEL & WINDSHIELD GLASS

04562DAM KIT, WINDSHIELD GLASS

main04562-12010iEL5#199409

55701PANEL SUB-ASSY, COWL

main55700-16270iEL50..RHD199409

sub55700-16902

main55700-16280iEL50..LHD199409-199509

main55700-16310iEL53199409-199509

main55700-16350iEL5#..LHD..GEN199808

sub55700-16903

main55700-16370iEL50..GCC199808

sub55700-16903

55713APANEL, COWL TOP SIDE, RH

main55713-16060iEL5#199409

55714APANEL, COWL TOP SIDE, LH

main55714-16060iEL5#199409

55783BLOUVER, COWL TOP VENTILATOR, CENTER NO.1

main55708-16100iEL50..RHD199409

sub55708-10050

main55708-16120iEL5#..LHD199409

sub55708-10070

55788APROTECTOR, COWL TOP VENTILATOR LOUVER

main55788-16090iEL5#199409-199508

main55788-16091iEL5#199508

56111GLASS, WINDSHIELD

main56111-0W250iEL50..GCC199808

*LAM,T=4.7,GREEN

sub56111-16440

main56111-16310iEL5#199409-199608

*LAM,T=4.7,CLEAR

main56111-16320iEL5#199409-199508

*LAM,T=4.7,BLUE

sub56111-16390

main56111-16430iEL5#..GEN199808

*LAM,T=4.7,GREEN

56115ASTOPPER, WINDSHIELD GLASS, NO.1

main56115-12050×2iEL5#199707

56116SPACER, WINDSHIELD GLASS

main56116-16050×2iEL5#199409-199707

main56116-22050×2iEL5#199707

9016440093

main90164-40093

9018904130

main90189-04130

9018904184

main90189-04184

9046706131B2

main90467-06131B2

9046706133C0

main90467-06133C0

9046707126

main90467-07126

9046710096

main90467-10096

9095006107

main90950-06107

17 parts on this diagram · 1 diagram in section
