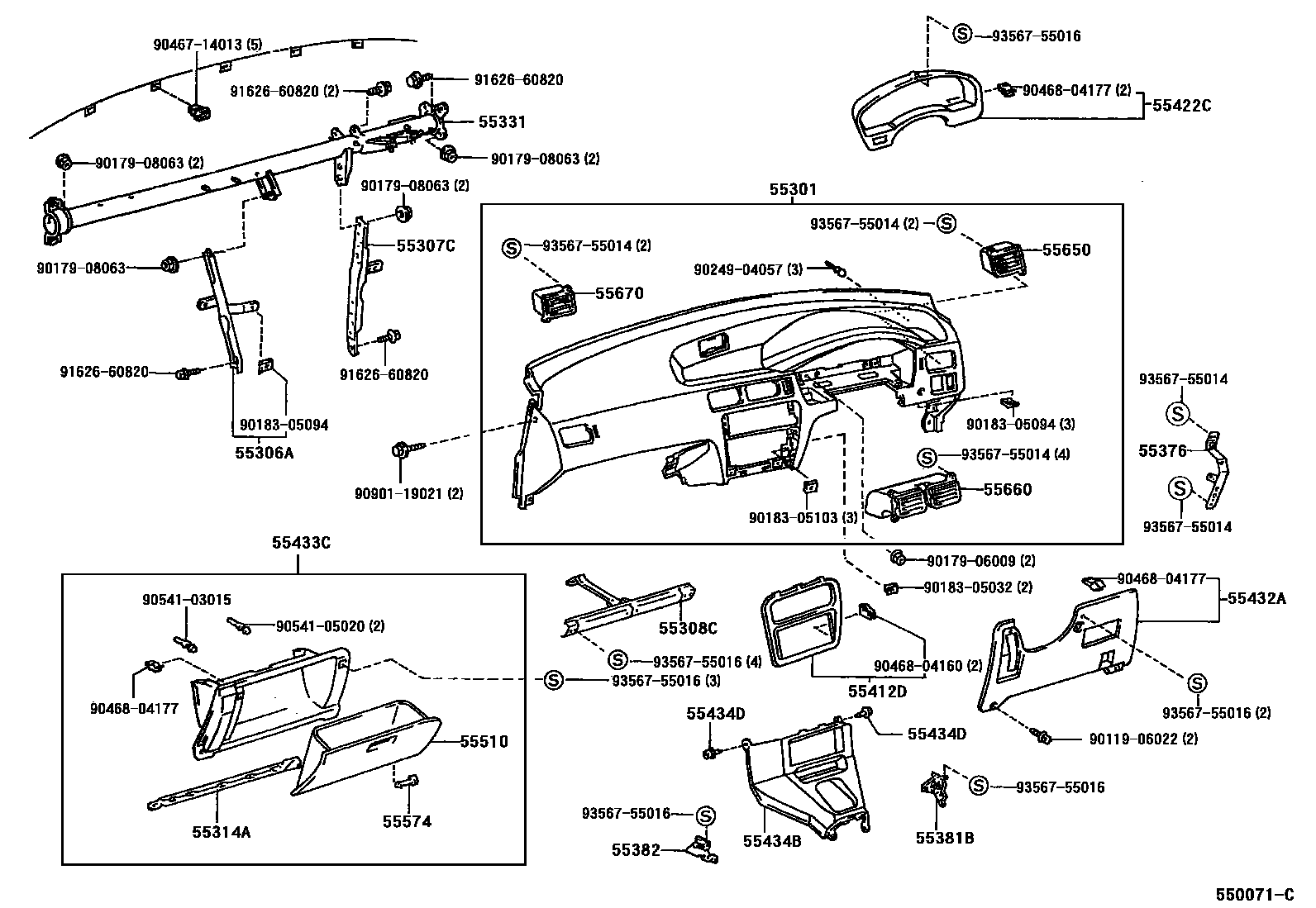

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1 0003 1 0004 1

55301PANEL SUB-ASSY, INSTRUMENT

main55301-16080-B0iEL50..RHD199409-199608

BLUISH GRAY,TRIM1#

main55301-16080-B3iEL50..RHD199608-199712

SHADOW GRAY,TRIM1#

main55301-16080-E0iEL50..RHD199409-199608

OAK,TRIM4#

main55301-16080-E1iEL50..RHD199608-199712

OAK,TRIM4#

main55301-16090-B0iEL5#..LHD199409-199608

BLUISH GRAY,TRIM1#

main55301-16090-E0iEL5#..LHD199409-199608

OAK,TRIM4#

main55301-16091-B3iEL5#..LHD199608-199712

SHADOW GRAY,TRIM1#

main55301-16091-E1iEL5#..LHD199608-199712

OAK,TRIM4#

main55301-16160-B1iEL50..RHD199712

SHADOW GRAY,TRIM1#

main55301-16160-E0iEL50..RHD199712

OAK,TRIM4#

main55301-16170-B1iEL50..GCC199712

W(*80,DRIVER SIDE & PASSENGER SIDE),SHADOW GRAY,TRIM1#

main55301-16170-E0iEL50..GCC199712

W(*80,DRIVER SIDE & PASSENGER SIDE),OAK,TRIM4#

main55301-16180-B1iEL5#..LHD199712

SHADOW GRAY,TRIM1#

main55301-16180-E0iEL5#..LHD199712

OAK,TRIM4#

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-16100iEL5#..LHD199409-199712

main55306-16110iEL50..RHD199409

main55306-16120iEL5#..LHD199712-199805

main55306-16130iEL5#..LHD199805

55307CBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2

main55307-16100iEL5#..LHD199409

main55307-16110iEL50..RHD199409-199712

main55307-16120iEL50..RHD199712-199805

main55307-16130iEL50..RHD199805

55308CBRACKET SUB-ASSY, INSTRUMENT PANEL, CENTER

main55308-16060iEL50..RHD199409

main55308-16070iEL5#..LHD199409

55314APANEL, INSTRUMENT, LOWER CENTER

main55314-16020iEL5#..LHD199409

main55314-16030iEL50..RHD199409

55331REINFORCEMENT, INSTRUMENT PANEL

main55330-16130iEL50..RHD199409-199608

main55330-16140iEL5#..LHD199409-199712

main55330-16190iEL50..RHD199608-199712

main55330-16200iEL50..RHD199712

main55330-16220iEL5#..LHD199712

55376BRACKET, INSTRUMENT PANEL MOUNTING, NO.1

main55376-16050iEL5#199409

55381BBRACKET, FINISH PANEL MOUNTING, NO.1

main55381-16040iEL5#199409

55382BRACKET, FINISH PANEL MOUNTING, NO.2

main55382-16040iEL5#199409

55412DPANEL, INSTRUMENT CLUSTER FINISH, CENTER

main55412-16110iEL5#199409

main55412-16130-B1iEL5#199712

SHADOW GRAY,TRIM1#

main55412-16130-E1iEL5#199712

OAK,TRIM4#

55422CPANEL, INSTRUMENT CLUSTER FINISH, CENTER UPPER

main55422-16060iEL50..RHD199409-199712

main55422-16070iEL5#..LHD199409-199712

sub55422-16080

main55422-16090-B0iEL50..RHD199712

SHADOW GRAY,TRIM1#

main55422-16090-E0iEL50..RHD199712

OAK,TRIM4#

main55422-16110-B0iEL5#..LHD199712

SHADOW GRAY,TRIM1#

sub55422-16080

main55422-16110-E0iEL5#..LHD199712

OAK,TRIM4#

sub55422-16080

55432APANEL, INSTRUMENT PANEL FINISH, LOWER RH

main55045-16070-B0iEL5#..LHD199409-199608

BLUISH GRAY,TRIM1#

main55045-16070-B1iEL5#..LHD199608

SHADOW GRAY,TRIM1#

main55045-16070-E0iEL5#..LHD199409

OAK,TRIM4#

main55432-16140-B0iEL50..RHD199409-199608

BLUISH GRAY,TRIM1#

sub55432-16150

main55432-16140-B1iEL50..RHD199608-199712

SHADOW GRAY,TRIM1#

sub55432-16150

main55432-16140-B2iEL50..RHD199712

MD.GRAY,TRIM1#

sub55432-16150

main55432-16140-E0iEL50..RHD199409-199712

OAK,TRIM4#

sub55432-16150

main55432-16140-E1iEL50..RHD199712

MD.OAK,TRIM4#

sub55432-16150

55433CPANEL, INSTRUMENT PANEL FINISH, LOWER LH

main55045-16050-B0iEL50..RHD199409-199608

BLUISH GRAY,TRIM1#

main55045-16050-B1iEL50..RHD199608-199712

SHADOW GRAY,TRIM1#

main55045-16050-B2iEL50..RHD199712

MD.GRAY,TRIM1#

main55045-16050-E0iEL50..RHD199409-199712

OAK,TRIM4#

main55045-16050-E1iEL50..RHD199712

MD.OAK,TRIM4#

55434BPANEL, INSTRUMENT PANEL FINISH, LOWER CENTER

main55434-16050-B0iEL50..RHD199409-199608

BLUISH GRAY,TRIM1#

main55434-16050-B1iEL50..RHD199608

SHADOW GRAY,TRIM1#

main55434-16050-E0iEL50..RHD199409

OAK,TRIM4#

main55434-16060-B0iEL5#..LHD199409-199608

BLUISH GRAY,TRIM1#

main55434-16060-B1iEL5#..LHD199608

SHADOW GRAY,TRIM1#

main55434-16060-E0iEL5#..LHD199409

OAK,TRIM4#

55434DCLIP, INSTRUMENT PANEL FINISH, LOWER CENTER

main90467-07071-B3×2iEL5#199409-199508

GRAY,TRIM1#

main90467-07071-B4×2iEL5#199508

SHADOW GRAY,TRIM1#

main90467-07071-E0×2iEL5#199409

OAK,TRIM4#

55510DOOR ASSY, GLOVE COMPARTMENT

main55550-16110-B0iEL50..RHD199409-199608

BLUISH GRAY,TRIM1#

main55550-16110-B1iEL50..RHD199608-199712

SHADOW GRAY,TRIM1#

main55550-16110-B2iEL50..RHD199712

MD.GRAY,TRIM1#

main55550-16110-E0iEL50..RHD199409-199712

OAK,TRIM4#

main55550-16110-E1iEL50..RHD199712

MD.OAK,TRIM4#

main55550-16130-B0iEL5#..LHD199409-199608

BLUISH GRAY,TRIM1#

main55550-16130-B1iEL5#..LHD199608

SHADOW GRAY,TRIM1#

main55550-16130-E0iEL5#..LHD199409

OAK,TRIM4#

55574SHAFT, GLOVE COMPARTMENT DOOR HINGE

main55574-10010×2iEL5#199409

55650REGISTER ASSY, INSTRUMENT PANEL, NO.1

main55650-16080-B0iEL5#199409-199509

BLUISH GRAY,TRIM1#

main55650-16080-B2iEL5#199509-199712

GRAY,TRIM1#

main55650-16080-E0iEL5#199409-199712

OAK,TRIM4#

main55650-16100-B1iEL5#199712-199907

SHADOW GRAY,TRIM1#

main55650-16100-E0iEL5#199712-199907

OAK,TRIM4#

55660REGISTER ASSY, INSTRUMENT PANEL, NO.2

main55660-16050-B0iEL5#199409-199509

BLUISH GRAY,TRIM1#

main55660-16050-B2iEL5#199509-199712

GRAY,TRIM1#

main55660-16050-E0iEL5#199409-199712

OAK,TRIM4#

main55660-16070-B1iEL5#199712

SHADOW GRAY,TRIM1#

main55660-16070-E0iEL5#199712

OAK,TRIM4#

55670REGISTER ASSY, INSTRUMENT PANEL, NO.3

main55670-16050-B0iEL5#199409-199509

BLUISH GRAY,TRIM1#

main55670-16050-B2iEL5#199509-199712

GRAY,TRIM1#

main55670-16050-E0iEL5#199409-199712

OAK,TRIM4#

main55670-16070-B1iEL5#199712-199907

SHADOW GRAY,TRIM1#

main55670-16070-E0iEL5#199712-199907

OAK,TRIM4#

9011906022

main90119-06022

9017906009

main90179-06009

9017908063

main90179-08063

9018305032

main90183-05032

9018305094

main90183-05094

9018305103

main90183-05103

9024904057

main90249-04057

9046714013

main90467-14013

9046804160

main90468-04160

9046804177

main90468-04177

9054103015

main90541-03015

9054105020

main90541-05020

9090119021

main90901-19021

9162660820

main91626-60820

9356755014

main93567-55014

9356755016

main93567-55016

36 parts on this diagram · 4 diagrams in section
