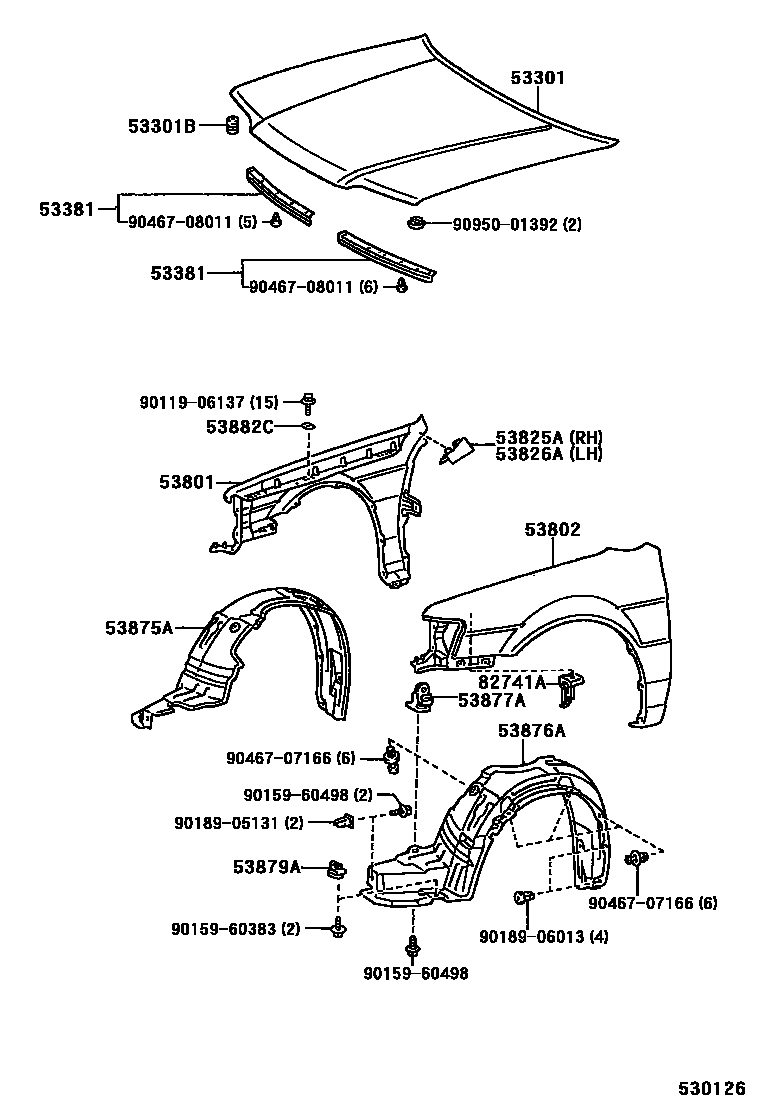

HOOD & FRONT FENDER

53301HOOD SUB-ASSY

main53301-16140iEL5#199409-199712

sub53301-16141

sub53382-16060

sub53382-16070

main53301-16141iEL5#199712

53301BCUSHION, HOOD BUMPER

main90541-15010iEL5#199409

53381SEAL, HOOD TO RADIATOR SUPPORT

main53381-16080iEL5#199409

RH

main53382-16020iEL5#199409

LH

53801FENDER SUB-ASSY, FRONT RH

main53801-16430iEL5#199409

53802FENDER SUB-ASSY, FRONT LH

main53802-16430iEL5#199409

53825APROTECTOR, FRONT FENDER, UPPER RH

main53825-16030iEL5#199409-199410

53826APROTECTOR, FRONT FENDER, UPPER LH

main53826-16030iEL5#199409-199410

53875ALINER, FRONT FENDER, RH

main53875-16080iEL5#199409

53876ALINER, FRONT FENDER, LH

main53876-16080iEL5#199409

53877ABRACKET, FRONT FENDER SPLASH SHIELD

main53877-16010iEL5#199409

53879ARETAINER, FRONT FENDER LINER

main53879-16010iEL5#199409

53882CSEAL, FRONT FENDER MAIN

main53882-16030iEL5#199409

82741ABRACKET, ENGINE ROOM RELAY BLOCK

main85999-16140iEL5#199409

9011906137

main90119-06137

9015960383

main90159-60383

9015960498

main90159-60498

9018905131

main90189-05131

9018906013

main90189-06013

9046707166

main90467-07166

9046708011

main90467-08011

9095001392

main90950-01392

21 parts on this diagram · 1 diagram in section
