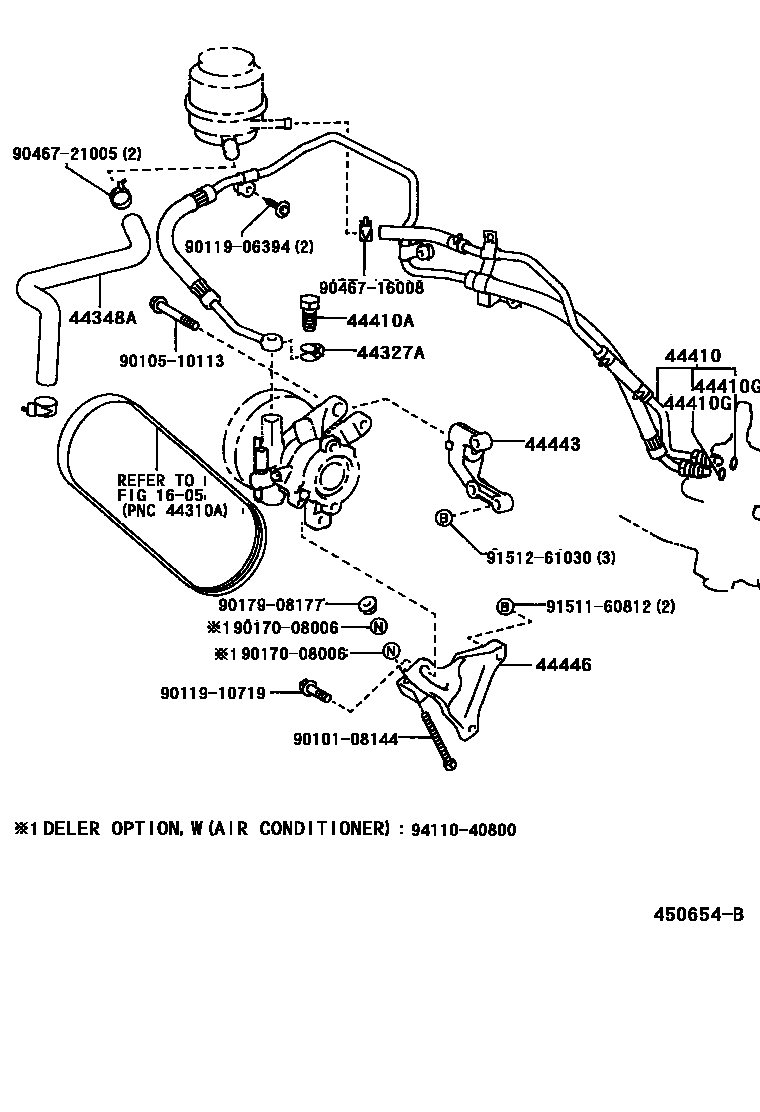

POWER STEERING TUBE

0001 1 0002 1 0004 1 0005 1 0006 1 0007 1 0008 1

1605

44327AGASKET, PRESSURE PORT, NO.1

main44327-12010iEL5#199409

44348AHOSE, OIL RESERVOIR TO PUMP, NO.1

main44348-10120iEL50..RHD199712

main44348-16081iEL50..RHD199409-199712

main44348-16131iEL53199409-199508

main44348-16150iEL53199508

main44348-16160iEL50..LHD199409-199712

main44348-16180iEL50..LHD199712

44410TUBE ASSY, PRESSURE FEED

main44410-10210iEL50..RHD199712

main44410-16171iEL50..RHD199409-199712

main44410-16203iEL50..LHD199409-199610

main44410-16221iEL53..5F199409-199508

main44410-16231iEL53..4FC199409-199508

main44410-16260iEL53..5F199508-199610

sub44410-16460

main44410-16270iEL53..4FC199508-199610

sub44410-16470

main44410-16330iEL53..4FC199610-199712

main44410-16360iEL53..5F199610-199712

main44410-16370iEL50..LHD199610-199712

main44410-16400iEL53..5F199712

main44410-16410iEL53..4FC199712

main44410-16430iEL50..LHD199712

44410ABOLT, UNION(FOR PRESSURE FEED TUBE)

main90401-16012iEL5#199409

44410GRING, O(FOR PRESSURE FEED TUBE)

main90301-07009×2iEL50..RHD199409

44443BRACKET, PUMP

main44443-10030iEL53199409

main44443-12070iEL50199409

44446STRUT, ADJUSTING

main44446-16051iEL53199409

main44446-16061iEL50199409

9010108144

main90101-08144

9010510113

main90105-10113

9011906394

main90119-06394

9011910719

main90119-10719

9017008006

main90170-08006

9017908177

main90179-08177

9046716008

main90467-16008

9046721005

main90467-21005

9151160812

main91511-60812

9151261030

main91512-61030

9411040800

main94110-40800

19 parts on this diagram · 7 diagrams in section
