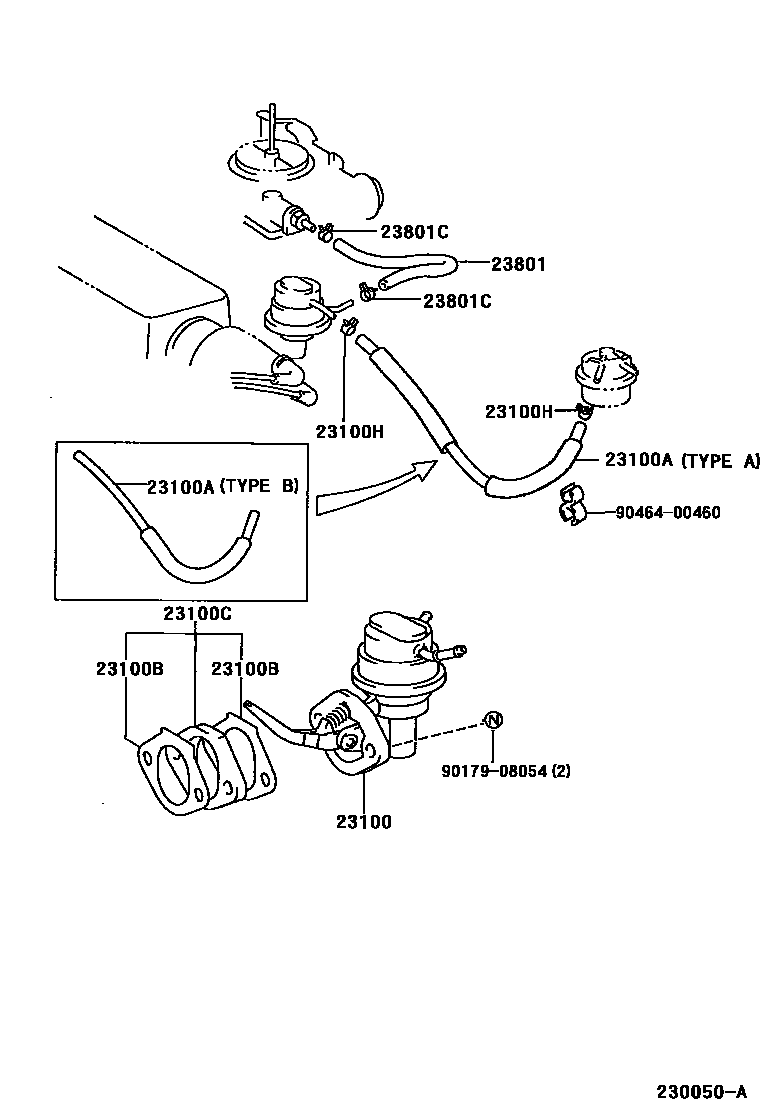

FUEL PUMP & PIPE

23100PUMP ASSY, FUEL

main23100-11080i2E..EL50199409-199503

sub23100-11081

main23100-11081i2E..EL50199503

23100AHOSE, FUEL

main23271-11050i2E..EL50..GEN199409

TYPE A:REFER TO ILLUSTRATION

main23271-11210i2E..EL50..GCC199409-199705

main23271-11210i2E..EL50..LHD199705

TYPE B:REFER TO ILLUSTRATION

23100BGASKET, FUEL PUMP

main90923-05024i2E..EL50199409

23100CINSULATOR, FUEL PUMP

main23915-10021i2E..EL50199409

23100HCLIP(FOR FUEL HOSE)

main96132-41100i2E..EL50199409

sub96132-51100

23801PIPE OR HOSE SUB-ASSY, CARBURETOR FUEL, NO.1

main95334-06010i2E..EL50199409

23801CCLIP(FOR CARBURETOR FUEL HOSE)

main96135-41100i2E..EL50199409

sub96135-51100

9017908054

main90179-08054

9046400460

main90464-00460

9 parts on this diagram · 1 diagram in section
