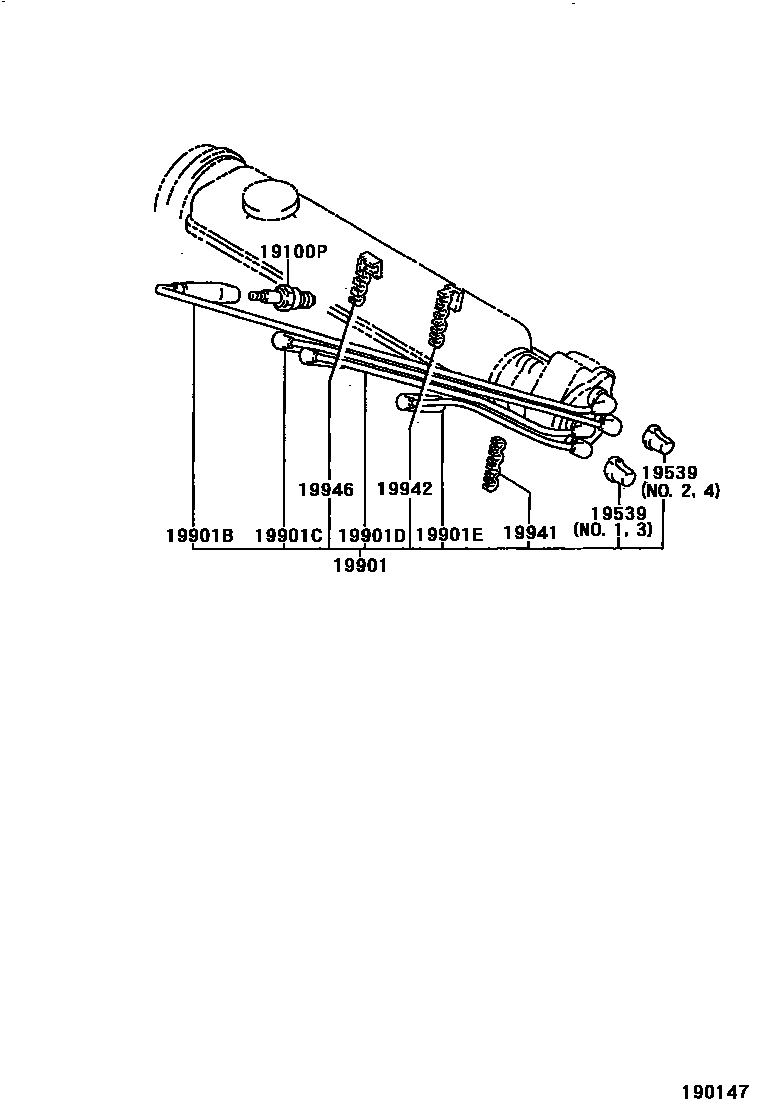

IGNITION COIL & SPARK PLUG / GLOW PLUG

0001 1 0002 1 0003 1

19100PPLUG, SPARK

main90919-01084i2E..EL50199409

W20EXR-U

main90919-01164i5EFE..EL53199409-199508

K16R-U11

main90919-01192i5EFE..EL53199508

K16TR11

19539HOLDER, RESISTIVE CODE, NO.4

main19532-50010i2E..EL50199409

NO.2,4

main19539-11010i2E..EL50199409

NO.1,3

main19539-11020i5EFE..EL53199409-199508

NO.1,2

main19539-11030i5EFE..EL53199508

main19539-11030i5EFE..EL53199409-199508

NO.3,4

19901CORD SET, COIL & SPARK, W/RESISTIVE

main90919-22329i2E..EL50199409

main90919-22373i5EFE..EL53199409-199508

sub90919-22420

19901BCORD, SPARK PLUG RESISTIVE, NO.1

main90919-15216i2E..EL50199409

main90919-15423i5EFE..EL53199409-199508

sub90919-15594

main90919-15428i5EFE..EL53199508

sub90919-15566

19901CCORD, SPARK PLUG RESISTIVE, NO.2

main90919-15217i2E..EL50199409

main90919-15424i5EFE..EL53199409-199508

sub90919-15595

main90919-15429i5EFE..EL53199508

sub90919-15567

19901DCORD, SPARK PLUG RESISTIVE, NO.3

main90919-15218i2E..EL50199409

main90919-15425i5EFE..EL53199409-199508

sub90919-15596

19901ECORD, SPARK PLUG RESISTIVE, NO.4

main90919-15202i5EFE..EL53199409-199508

sub90919-15589

main90919-15219i2E..EL50199409

19941CLAMP, RESISTIVE CORD, NO.1

main90464-00637i2E..EL50199409

main90929-01258i5EFE..EL53199409-199508

19942CLAMP, RESISTIVE CORD, NO.2

main90464-00639i2E..EL50199409

19946CLAMP, RESISTIVE CORD, NO.3

main90464-00561i5EFE..EL53199409-199508

main90464-00638i2E..EL50199409

10 parts on this diagram · 3 diagrams in section
