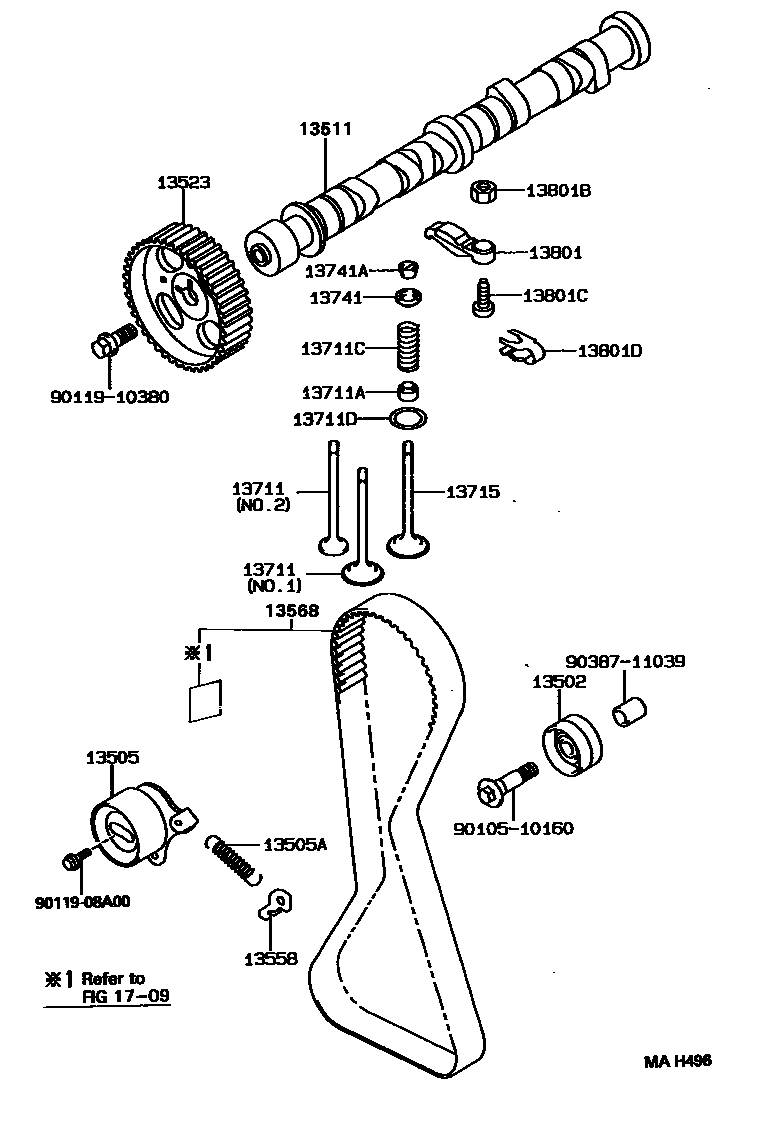

CAMSHAFT & VALVE
13502IDLER SUB-ASSY, TIMING BELT, NO.2
13523GEAR OR SPROCKET, CAMSHAFT TIMING
13711VALVE, INTAKE
NO.1
NO.2
13711ASEAL OR RING, O(FOR VALVE STEM OIL)
EXHAUST SIDE
INTAKE SIDE
EXHAUST SIDE
INTAKE SIDE
13711CSPRING, COMPRESSION(FOR OUTER)
13711DWASHER, PLATE(FOR VALVE SPRING SEAT)
13741ALOCK, VALVE SPRING RETAINER
13801ARM SUB-ASSY, VALVE ROCKER, NO.1
13801BNUT, HEXAGON(FOR VALVE ADJUSTING)
13801CSCREW, VALVE ADJUSTING
13801DSPRING, COMPRESSION(FOR ROCKER ARM)
1709
9010510160
main90105-10160
9011908A00
main90119-08A00
9011910380
main90119-10380
9038711039
main90387-11039
23 parts on this diagram · 2 diagrams in section
