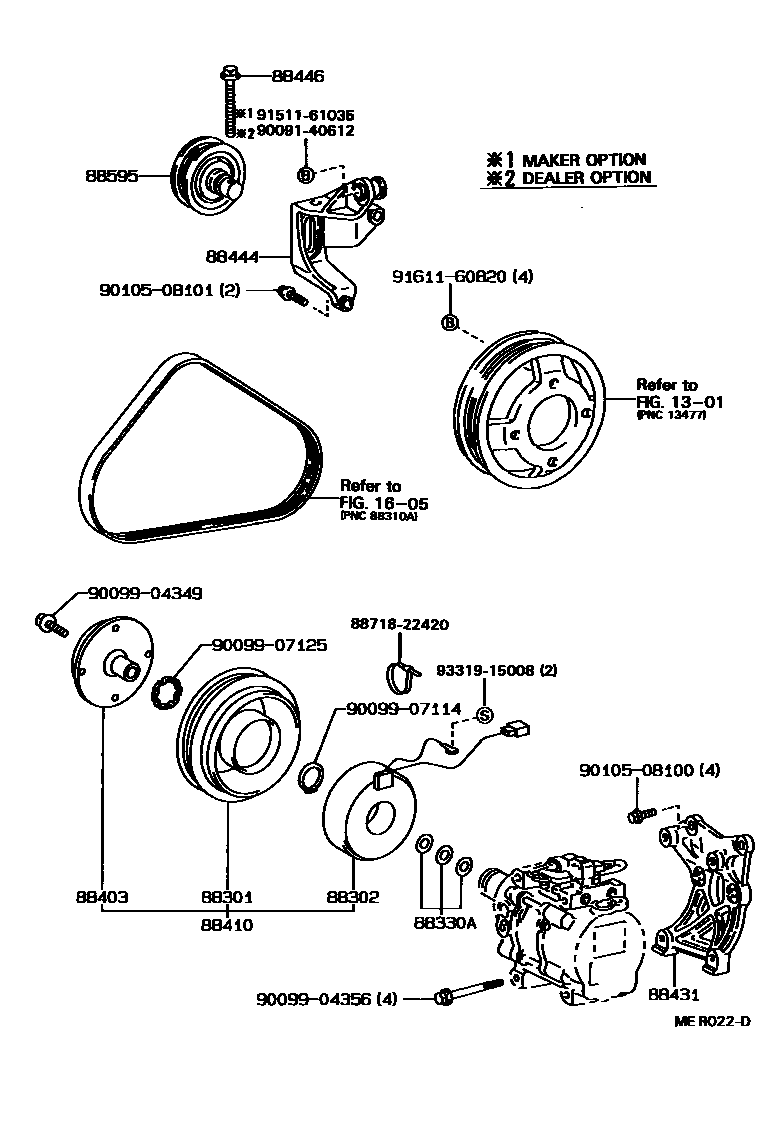

HEATING & AIR CONDITIONING - COMPRESSOR

0001 1 0002 1

1301

1605

88301ROTOR SUB-ASSY, MAGNET CLUTCH

main88412-10130iEL40199009-199208

main88412-16060iEL40..GEN199308-199409

main88412-16070iEL40199208-199308

main88412-16150iEL40..GCC199308-199409

88302STATOR SUB-ASSY, MAGNET CLUTCH

main88411-16050iEL40199009-199208

main88411-16060iEL40199208-199308

main88411-1A040iEL40199308-199409

88330AWASHER (FOR MAGNET CLUTCH)

main88335-14020iEL40199009-199409

88403HUB SUB-ASSY, MAGNET CLUTCH

main88403-16011iEL40199009-199208

main88403-1A010iEL40199208-199409

88410CLUTCH ASSY, MAGNET

main88410-16100iEL40199009-199208

main88410-16170iEL40199208-199308

main88410-16260iEL40..GEN199308-199409

main88410-16270iEL40..GCC199308-199409

88431BRACKET, COMPRESSOR MOUNTING, NO.1

main88431-16060iEL40..GEN199009-199409

main88431-16090iEL40..GCC199308-199409

88444BRACKET, IDLE PULLEY

main88444-10031iEL40199009-199409

88446BOLT, IDLE PULLEY

main88446-12030iEL40199009-199409

88595PULLEY, COOLER COMPRESSOR IDLE

main88440-17010iEL40199009-199409

8871822420PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-22420

9009140612

main90091-40612

9009904349

main90099-04349

9009904356

main90099-04356

9009907114

main90099-07114

9009907125

main90099-07125

9010508100

main90105-08100

9010508101

main90105-08101

9151161035

main91511-61035

9161160820

main91611-60820

9331915008

main93319-15008

22 parts on this diagram · 2 diagrams in section
