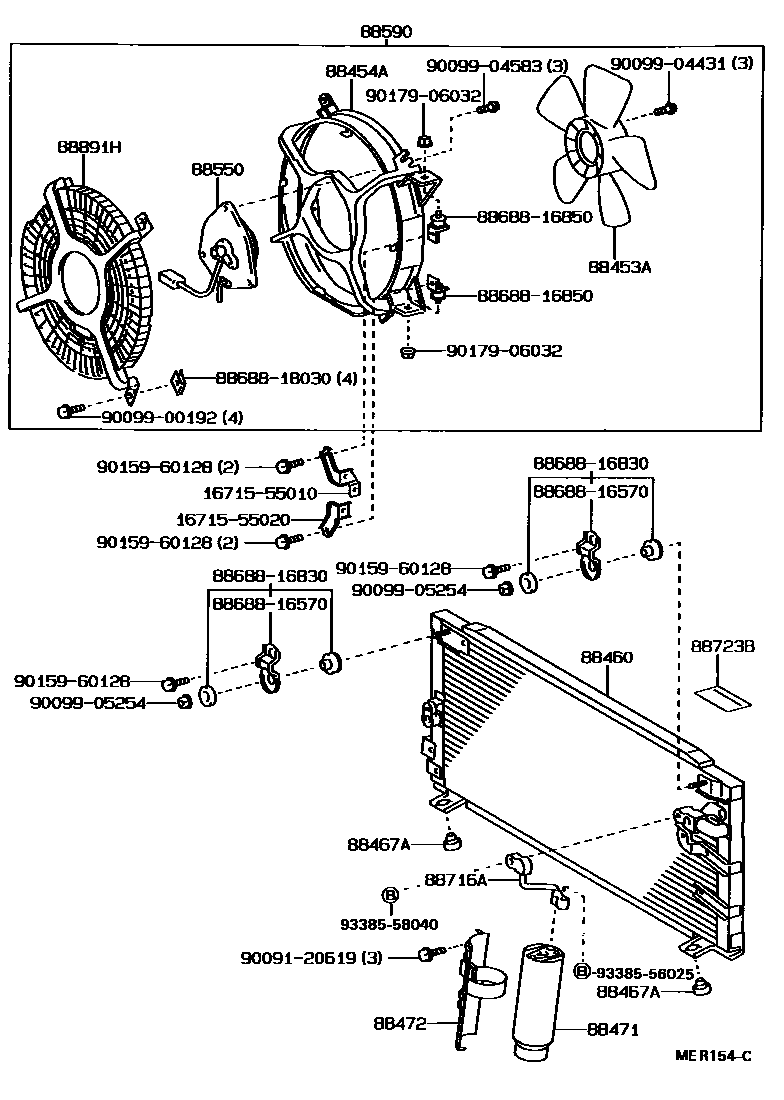

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1MAKER OPTION 0002 1MAKER OPTION 0003 1DEALER OPTION 0004 1 0005 1MAKER OPTION 0006 1MAKER OPTION 0007 1DEALER OPTION 0008 1DEALER OPTION 0009 1MAKER OPTION 0010 1MAKER OPTION 0011 1DEALER OPTION 0012 1DEALER OPTION

88453AFAN, COOLING

main88453-10020iEL40..RHD199208-199409

DEALER OPTION

main88453-10020iEL40199009-199208

main88453-12080iEL40..LHD..GEN199208-199409

MAKER OPTION

main88453-12080iEL40..GCC199308-199409

88454ASHROUD, FAN

main88454-16110iEL40199009-199409

88460CONDENSER ASSY, COOLER

main88460-16230iEL40..LHD199009-199208

MAKER OPT

main88460-16240iEL40..RHD199009-199208

DEALER OPT

sub88460-16250

main88460-16300iEL40..RHD199208-199308

sub88460-16320

main88460-16301iEL40..RHD199308-199409

sub88460-16321

main88460-16310iEL40..LHD199208-199308

main88460-16311iEL40..LHD199308-199409

88467ACUSHION, COOLER CONDENSER, NO.2

main88467-10020iEL40..RHD199101-199409

DEALER OPT

main88467-10020iEL40199009-199101

main88467-16090iEL40..GCC199308-199409

main88467-16090iEL40..GEN199101-199409

MAKER OPT

88471TANK, RECEIVER AIR CONDITIONER

main88471-16040iEL40199009-199308

sub88471-16050

main88471-34010iEL40199308-199409

88472BRACKET, RECEIVER TANK, NO.1

main88472-16110iEL40199009-199208

main88472-16110iEL40..RHD199208-199409

DEALER OPTION

main88472-16120iEL40..RHD199301-199409

MAKER OPTION

main88472-16120iEL40..RHD..MTM199208-199409

88550MOTOR ASSY, BLOWER (FOR CONDENSER)

main88550-10050iEL40199009-199409

88590BLOWER ASSY, W/SHROUD

main88590-16040iEL40..RHD199009-199409

DEALER OPTION

sub88590-16050

main88590-16050iEL40..LHD199009-199208

MAKER OPTION

main88590-16051iEL40..LHD..GEN199208-199409

MAKER OPTION

main88590-16051iEL40..GCC199308-199409

88716APIPE, COOLER REFRIGERANT LIQUID, A

main88716-16530iEL40199009-199208

sub88716-1G300

main88716-16531iEL40199208-199308

sub88716-1G310

main88716-16532iEL40199308-199409

88723BLABEL, COOLER SERVICE CAUTION

main88723-16020iEL40..LHD199207-199208

MAKER OPTION

main88723-16020iEL40199208-199308

main88723-16050iEL40199308-199409

main88723-20020iEL40199009-199207

main88723-20020iEL40..RHD199207-199208

DEALER OPTION

88891HCOVER, COOLER, NO.1

main88891-16040iEL40199009-199409

1671555010BRACKET, FAN SHROUD

main16715-55010

1671555020BRACKET, FAN SHROUD

main16715-55020

8868816570BRACKET, COOLER DIAPHRAGM

main88688-16570

8868816830BRACKET, COOLER DIAPHRAGM

main88688-16830

8868816850BRACKET, COOLER DIAPHRAGM

main88688-16850

8868818030BRACKET, COOLER DIAPHRAGM

main88688-18030

9009120619

main90091-20619

9009900192

main90099-00192

9009904431

main90099-04431

9009904583

main90099-04583

9009905254

main90099-05254

9015960128

main90159-60128

9017906032

main90179-06032

9338556025

main93385-56025

9338558040

main93385-58040

26 parts on this diagram · 12 diagrams in section
