HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

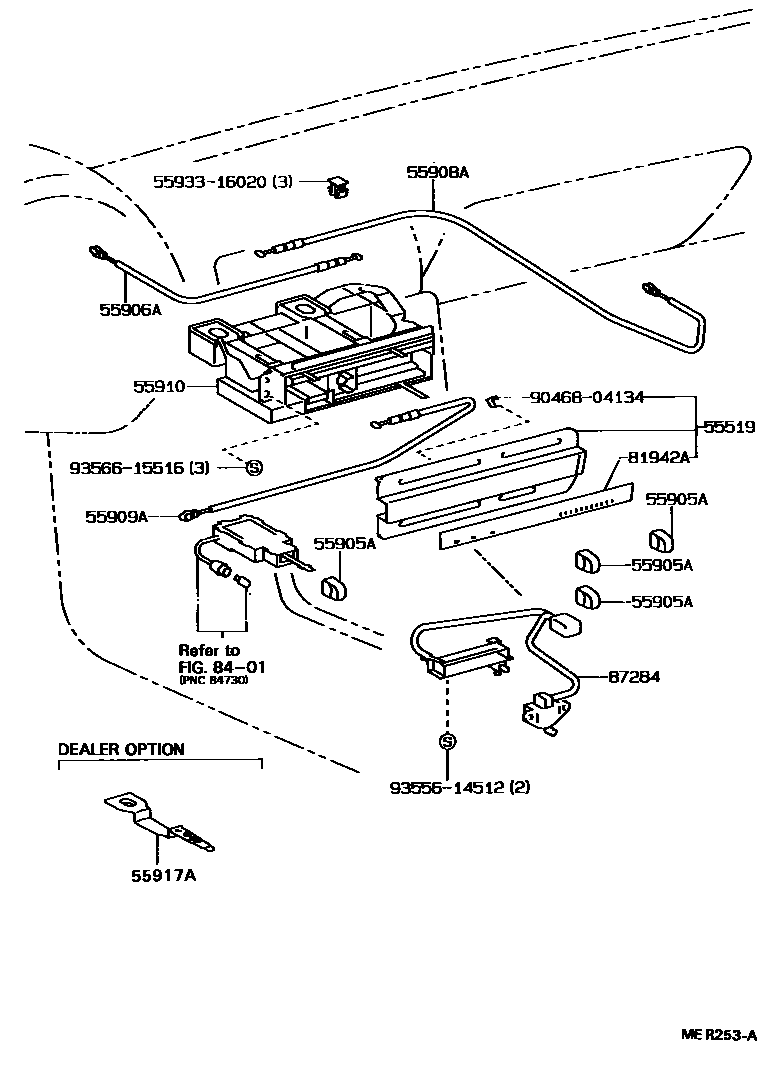

Parts diagram
55519PLATE, HEATER CONTROL NAME
main55519-16010-01i199009-199208
W(HEATER),BLACK,TRIM2#
main55519-16010-04i199009-199208
W(HEATER),GRAYISH BLUE,TRIM8#
main55519-16011-22i199208-199409
W(HEATER),BLACK,TRIM2#
main55519-16011-W4i199208-199409
W(HEATER),EISEN BLUE,TRIM8#
main55519-16020-01i199009-199208
W(HEATER & AIR CONDITIONER),BLACK,TRIM2#
main55519-16020-04i199009-199208
W(HEATER & AIR CONDITIONER),GRAYISH BLUE,TRIM8#
main55519-16030-01i199009-199208
BLACK,TRIM2#
main55519-16030-04i199009-199208
GRAYISH BLUE,TRIM8#
main55519-16031-22i199208-199409
BLACK,TRIM2#
main55519-16031-W4i199208-199409
EISEN BLUE,TRIM8#
main55519-16040-01i199009-199208
W(HEATER),BLACK,TRIM2#
main55519-16040-04i199009-199208
W(HEATER),GRAYISH BLUE,TRIM8#
main55519-16041-22i199208-199409
W(HEATER),BLACK,TRIM2#
main55519-16041-W4i199208-199409
W(HEATER),EISEN BLUE,TRIM8#
main55519-16050-01i199009-199208
W(HEATER & AIR CONDITIONER),BLACK,TRIM2#
main55519-16050-04i199009-199208
W(HEATER & AIR CONDITIONER),GRAYISH BLUE,TRIM8#
main55519-16060-01i199009-199208
BLACK,TRIM2#
main55519-16060-04i199009-199208
GRAYISH BLUE,TRIM8#
main55519-16061-22i199208-199409
BLACK,TRIM2#
main55519-16061-W4i199208-199409
EISEN BLUE,TRIM8#
55905AKNOB, HEATER CONTROL
main55905-89115×4i199009-199208
LEVER
55906ACABLE SUB-ASSY, DEFROSTER DAMPER CONTROL
main55906-16070i199009-199409
main55906-16080i199009-199409
55908ACABLE SUB-ASSY, AIR INLET DAMPER CONTROL
main55908-16070i199009-199409
main55908-16080i199009-199409
55909ACABLE SUB-ASSY, AIRMIX DAMPER CONTROL
main55909-16070i199009-199409
main55909-16080i199009-199409
55910CONTROL ASSY, HEATER OR BOOST VENTILATOR
main55910-16140i199009-199208
W(HEATER)
main55910-16141i199208-199409
W(HEATER)
main55910-16150i199009-199208
main55910-16151i199208-199409
main55910-16160i199009-199208
W(HEATER)
main55910-16161i199208-199409
W(HEATER)
main55910-16170i199009-199208
main55910-16171i199208-199409
main55910-16180i199009-199208
W(BOOST VENTILATOR & AIR CONDITIONER)
main55910-16181i199208-199409
W(BOOST VENTILATOR & AIR CONDITIONER)
main55910-16190i199009-199208
W(BOOST VENTILATOR & AIR CONDITIONER)
main55910-16191i199208-199409
W(BOOST VENTILATOR & AIR CONDITIONER)
55917ALEVER, TEMPERATURE DAMPER CONTROL
main55917-16050i199009-199208
81942ASHEET, HEATER CONTROL NAME, NO.1
main81942-16130-01i199009-199208
W(HEATER),BLACK,TRIM2#
main81942-16130-04i199009-199208
W(HEATER),GRAISH BLUE,TRIM8#
main81942-16131-C0i199208-199409
W(HEATER),BLACK,TRIM2#
main81942-16131-J0i199208-199409
W(HEATER),EISEN BLUE,TRIM8#
main81942-16140-01i199009-199208
BLACK,TRIM2#
main81942-16140-04i199009-199208
GRAISH BLUE,TRIM8#
main81942-16141-C0i199208-199409
BLACK,TRIM2#
main81942-16141-J0i199208-199409
EISEN BLUE,TRIM8#
main81942-16150-01i199009-199208
W(HEATER),BLACK,TRIM2#
main81942-16150-04i199009-199208
W(HEATER),GRAISH BLUE,TRIM8#
main81942-16151-C0i199208-199409
W(HEATER),BLACK,TRIM2#
main81942-16151-J0i199208-199409
W(HEATER),EISEN BLUE,TRIM8#
main81942-16160-01i199009-199208
BLACK,TRIM2#
main81942-16160-04i199009-199208
GRAISH BLUE,TRIM8#
main81942-16161-C0i199208-199409
BLACK,TRIM2#
main81942-16161-J0i199208-199409
EISEN BLUE,TRIM8#
8401
87284RESISTOR SUB-ASSY, VARIABLE
main88032-16070i199009-199409
main88032-16080i199009-199409
5593316020GUIDE, LEVER, NO.2
main55933-16020
9046804134
main90468-04134
9355614512
main93556-14512
9356615516
main93566-15516
