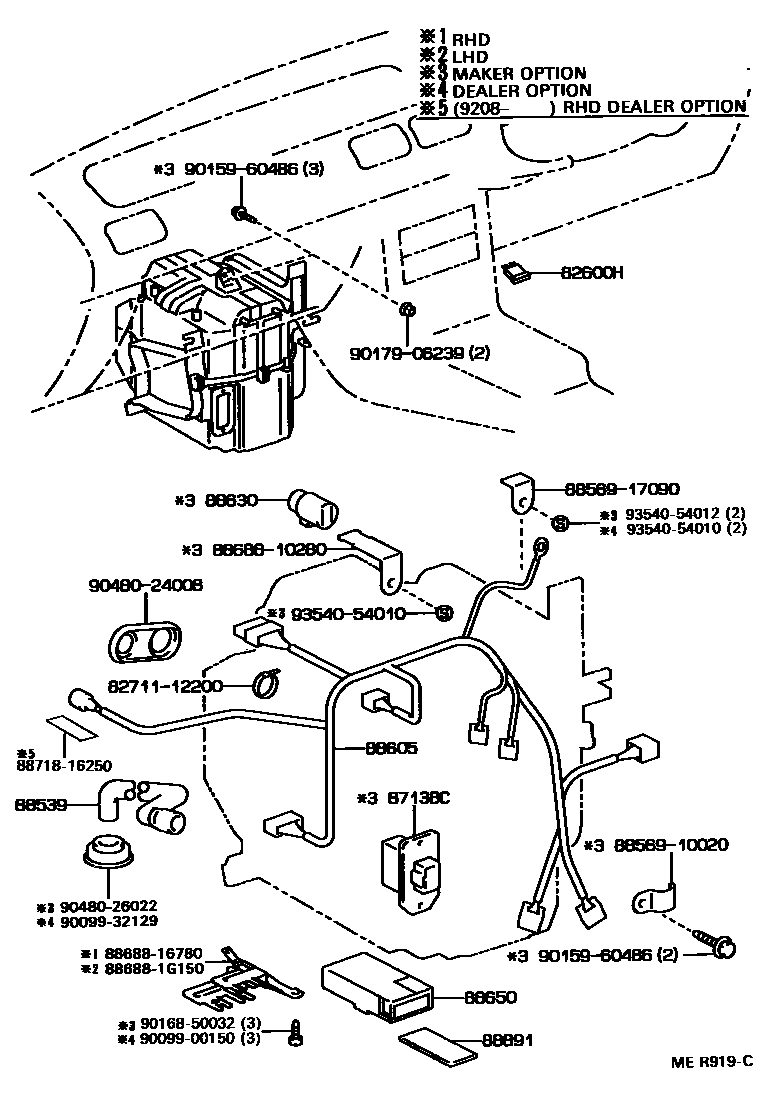

HEATING & AIR CONDITIONING - COOLER UNIT
82600HFUSE, FUSE BLOCK
10A
87138CRESISTOR, BLOWER
88539HOSE, COOLER UNIT DRAIN, NO.1
88605HARNESS SUB-ASSY, COOLER WIRING, NO.1
W(POWER STEERING & HEATER)
W(HEATER),MAKER OPTION
W(HEATER),MAKER OPTION
W(HEATER)
W(POWER STEERING & BOOST VENTILATOR)
W(BOOST VENTILATOR),MAKER OPTION
W(BOOST VENTILATOR),MAKER OPTION
W(BOOST VENTILATOR)
W(POWER STEERING & HEATER)
W(POWER STEERING & HEATER)
W(POWER STEERING & BOOST VENTILATER)
W(POWER STEERING & BOOST VENTILATER)
W(HEATER),DEALER OPTION
W(HEATER),DEALER OPTION
W(BOOST VENTILATOR),DEALER OPTION
W(BOOST VENTILATOR),DEALER OPTION
W(HEATER),MAKER OPTION
W(BOOST VENTILATOR),MAKER OPTION
88630RELAY ASSY, COOLER
88650AMPLIFIER ASSY, COOLER STABILIZER
88891PACKING (FOR COOLER)
8271112200WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-12200
8856910020CLAMP (FOR COOLER RELAY)
main88569-10020
8856917090CLAMP (FOR COOLER RELAY)
main88569-17090
8868810280BRACKET, COOLER DIAPHRAGM
main88688-10280
8868816780BRACKET, COOLER DIAPHRAGM
main88688-16780
886881G150BRACKET, COOLER DIAPHRAGM
main88688-1G150
8871816250PIPE, COOLER REFRIGERANT SUCTION, NO.2
main88718-16250
9009900150
main90099-00150
9009932129
main90099-32129
9015960486
main90159-60486
9016850032
main90168-50032
9017906239
main90179-06239
9048024008
main90480-24008
9048026022
main90480-26022
9354054010
main93540-54010
9354054012
main93540-54012
23 parts on this diagram · 2 diagrams in section
