WINDSHIELD WIPER

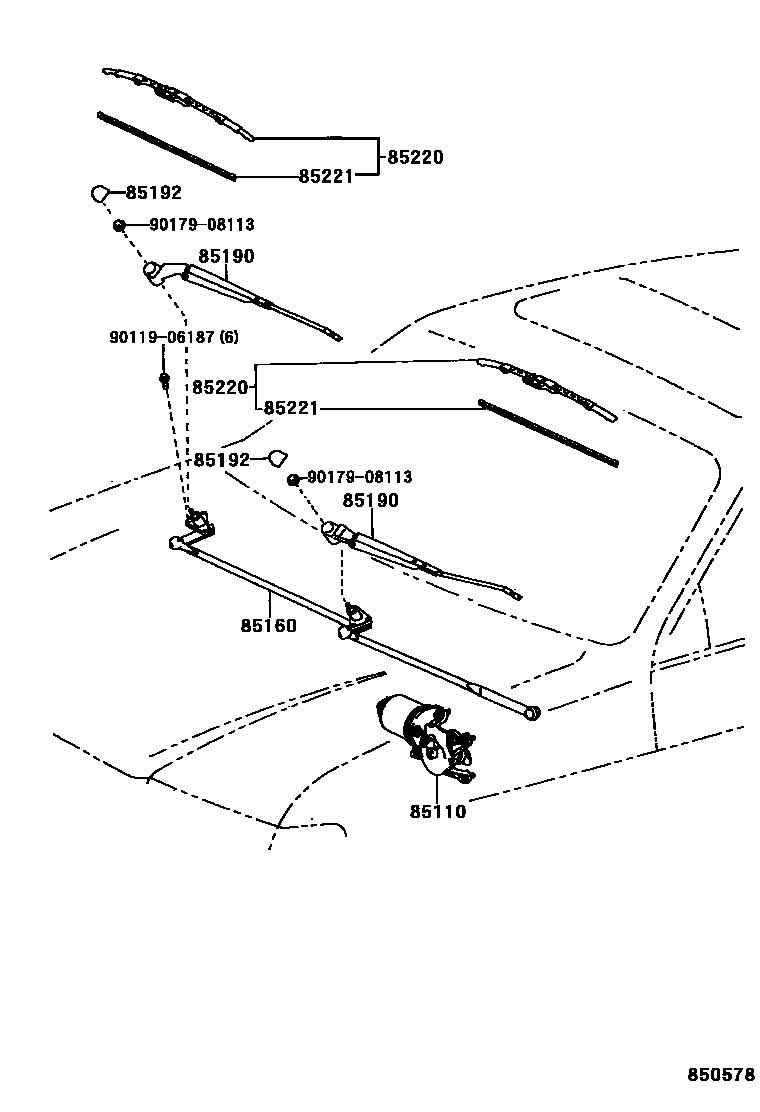

Parts diagram
85110MOTOR ASSY, WINDSHIELD WIPER
main85110-16390i199009-199208
main85110-16400i199009-199208
sub85110-16410
main85110-16491i199208-199210
sub85110-16580
main85110-16511i199210-199409
sub85110-16550
main85110-16531i199208-199210
main85110-16570i199210-199409
sub85110-16590
85160LINK ASSY, WINDSHIELD WIPER
main85150-16400i199009-199208
main85150-16401i199208-199409
main85150-16410i199009-199208
main85150-16411i199208-199409
85190ARM ASSY, WINDSHIELD WIPER
main85211-16070i199009-199111
RH
sub85211-16071
main85211-16071i199111-199409
RH
main85211-16080i199009-199111
RH
main85211-16081i199111-199409
RH
main85221-16110i199009-199111
LH
sub85221-16111
main85221-16111i199111-199409
LH
sub85221-16151
main85221-16120i199009-199111
LH
sub85221-16121
main85221-16121i199111-199409
LH
85192COVER, WINDSHIELD WIPER ARM
main85192-12800i199009-199111
main85292-12020i199111-199409
85220BLADE ASSY, WINDSHIELD WIPER
main85212-16070i199009-199111
RH
sub85212-16071
main85212-16071i199111-199212
RH
sub85212-23070
main85212-16090i199009-199111
RH
sub85212-20301
main85212-16091i199111-199211
RH
sub85212-16092
main85212-16092i199211-199409
RH
sub85212-30271
main85212-23070i199212-199409
RH
main85222-12692i199212-199409
LH
main85222-1G010i199009-199111
LH
sub85222-1G011
main85222-1G011i199111-199211
LH
sub85222-1G012
main85222-1G012i199211-199409
LH
sub85222-1G080
main85222-1G020i199009-199111
LH
sub85222-1G021
main85222-1G021i199111-199212
LH
sub85222-12692
85221BLADE, WINDSHIELD WIPER
main85213-16070i199009-199109
RH
sub85213-16090
main85213-16080i199009-199112
RH
sub85214-20330
main85213-16090i199109-199212
RH
sub85213-30250
main85213-16100i199112-199211
RH
sub85213-30270
main85213-30250i199212-199409
RH
sub85214-30250
main85213-30270i199211-199409
RH
sub85214-20330
main85213-60020i199211-199409
LH
sub85214-20330
main85223-1G010i199009-199109
LH
sub85223-1G040
main85223-1G030i199009-199211
LH
sub85213-60020
main85223-1G040i199109-199212
LH
sub85223-30400
main85223-30400i199212-199409
LH
sub85214-20320
9011906187
main90119-06187
9017908113
main90179-08113

8 parts on this diagram · 2 diagrams in section
