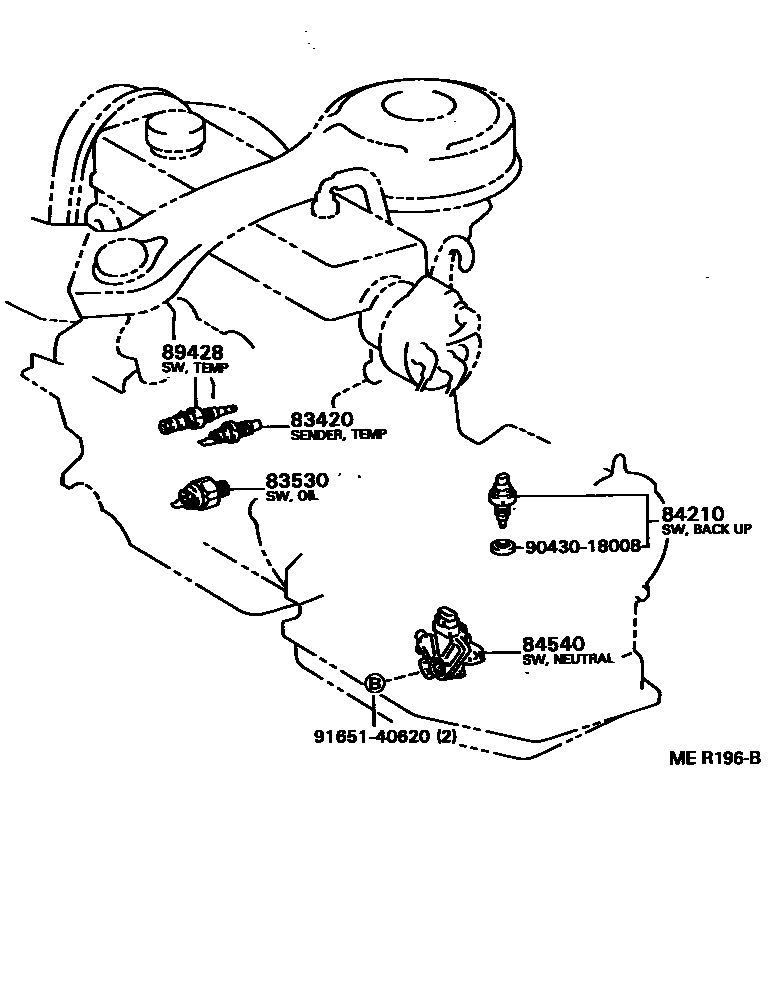

SWITCH & RELAY & COMPUTER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1

83420GAGE ASSY, WATER TEMPERATURE SENDER

main83420-16020iEL40199009-199409

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-14060iEL40199208-199409

sub83530-30090

main83530-30080iEL40199009-199208

sub83530-60040

84210SWITCH ASSY, BACK-UP LAMP

main84210-12040iEL40..MTM199009-199409

sub84210-52050

84540SWITCH ASSY, NEUTRAL START

main84540-16030iEL40..ATM199009-199208

main84540-16040iEL40..ATM199208-199409

89428SWITCH, TEMPERATURE DETECT, NO.2

main89428-12160iEL40199208-199409

main89428-20060iEL40199009-199208

9043018008

main90430-18008

9165140620

main91651-40620

7 parts on this diagram · 10 diagrams in section
