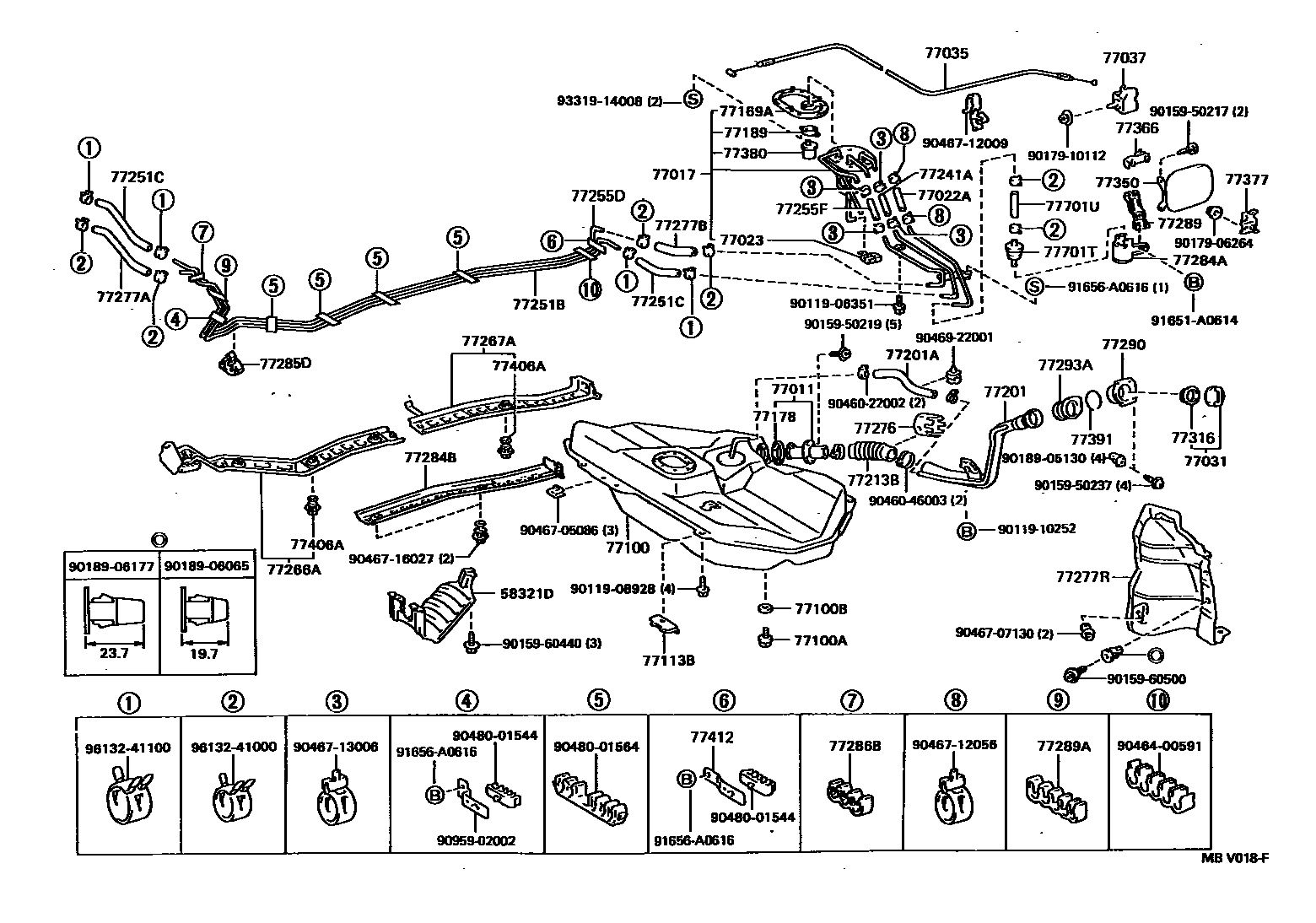

FUEL TANK & TUBE
58321DINSULATOR, REAR FLOOR HEAT, NO.1
77011PIPE SUB-ASSY, FUEL TANK FILLER, LOWER
77017TUBE SUB-ASSY, FUEL AND EVAPORATION VENT
77022AHOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)
77023FILTER SUB-ASSY, FUEL SUCTION TUBE
NIFCO
KYOSAN
77031CAP ASSY, FUEL TANK
77035CABLE SUB-ASSY, FUEL LID LOCK CONTROL
77037LOCK SUB-ASSY, FUEL FILLER OPENING LID
77100TANK ASSY, FUEL
77100APLUG(FOR FUEL TANK)
77100BGASKET(FOR FUEL TANK)
77113BPLATE, FUEL TANK SIDE
77169AGASKET, FUEL SUCTION TUBE SET
77178GASKET, FUEL TANK FILLER PIPE, LOWER
77189RETAINER, FUEL CHECK VALVE
77201PIPE SUB-ASSY, FUEL TANK INLET
77201AHOSE, FUEL, NO.1(FOR FUEL TANK INLET PIPE)
L=280
77213BHOSE, FUEL TANK TO FILLER PIPE
77241AHOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1)
77251BTUBE, FUEL MAIN
77251CHOSE, FUEL, NO.1(FOR FUEL MAIN TUBE)
L=130
77255DTUBE, FUEL RETURN
77255FHOSE, FUEL, NO.2 (FOR FUEL RETURN TUBE)
L=100
L=100
77266APROTECTOR, FUEL TUBE, NO.1
77267APROTECTOR, FUEL TUBE, NO.2
77276PROTECTOR, FUEL HOSE
77277AHOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1)
77277BHOSE, FUEL, NO.2(FOR RETURN TUBE, NO.1)
L=340
77277RPROTECTOR, FUEL TANK FILLER PIPE
77284APROTECTOR, FUEL TUBE, NO.3
77284BPROTECTOR, FUEL TUBE, NO.3
W(ROUGH ROAD A PACKAGE) OR W(ROUGH ROAD S PACKAGE)
W(ROUGH ROAD A PACKAGE)
W(POUGH ROAD A PACKAGE)
77285DCLAMP, FUEL TUBE, NO.1
77286BCLAMP, FUEL TUBE W/GROMMET, NO.2
77289HOLDER, FUEL TANK PIPE SETTING
77289ACLAMP, FUEL TUBE W/GROMMET, NO.3
77290SHIELD ASSY, FUEL TANK FILLER PIPE
W(BACK DOOR & TRUNK OPENER)
77293ASHIELD, FUEL TANK FILLER PIPE, NO.3
W(BACK DOOR & TRUNK OPENER)
77316GASKET, FUEL TANK CAP
77350LID ASSY, FUEL FILLER OPENING
W(BACK DOOR & TRUNK OPENER)
77366SPRING, FUEL FILLER OPENING LID HINGE
77377RETAINER, FUEL FILLER OPENING LID LOCK
77380VALVE ASSY, FUEL CUT OFF
77391RING, FUEL INLET BOX
77406ACLIP(FOR FUEL TUBE PROTECTOR)
77412SUPPORT, FUEL TUBE GROMMET, NO.2
77701TVALVE, CHECK (FOR MAIN FUEL TANK)
77701UHOSE, FUEL (FOR CHECK VALVE)
9011906351
9011908928
9011910252
9015950217
9015950219
9015950237
9015960440
9015960500
9017906264
9017910112
9018905130
9018906065
9018906177
9046022002
9046046003
9046400591
9046705086
9046707130
9046712009
9046712056
9046713006
9046716027
9046922001
9048001544
9048001564
9095902002
91651A0614
91656A0616
9331914008
9613241000
9613241100
