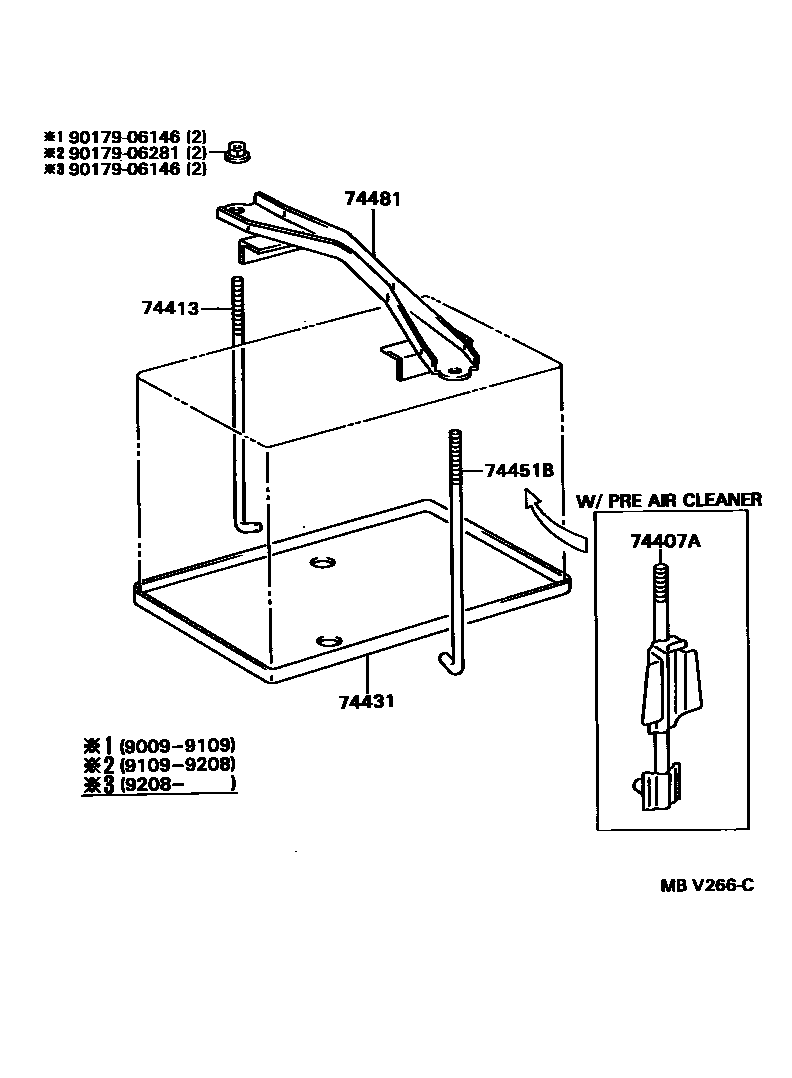

BATTERY CARRIER

74407ABOLT SUB-ASSY, BATTERY CLAMP

main74407-16030iEL40199102-199109

main74407-16040iEL40199109-199401

74413BOLT, BATTERY CLAMP

main74451-16010iEL40199009-199109

main74451-16030iEL40..GEN199109-199409

main74451-20060iEL40199102-199109

W(PRE AIR CLEANER)

74431TRAY, BATTERY

main74431-14020iEL40199009-199409

main74431-20040iEL40199009-199409

W(32C 24L BATTERY)

74451BBOLT, BATTERY CLAMP

main74451-16040iEL40199109-199409

main74451-20060iEL40199009-199109

74481CLAMP, BATTERY HOLD DOWN

main74404-16090iEL40199009-199409

main74404-16120iEL40199009-199409

W(32C 24L BATTERY)

9017906146

main90179-06146

9017906281

main90179-06281

7 parts on this diagram · 1 diagram in section
