FRONT DOOR WINDOW REGULATOR & HINGE

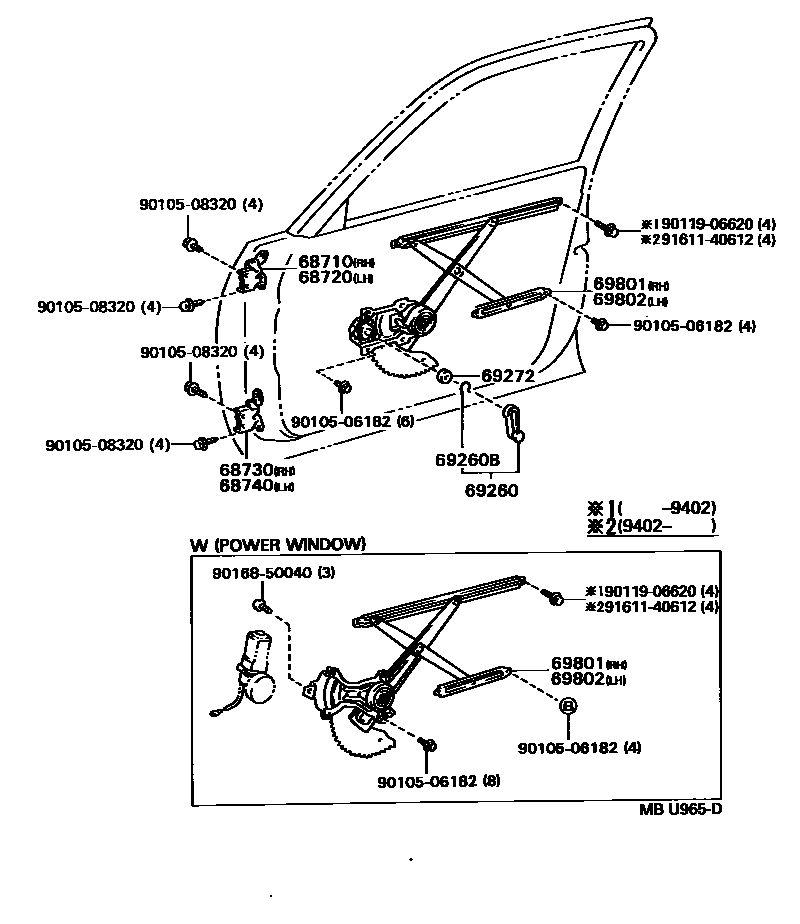

Parts diagram
68710HINGE ASSY, FRONT DOOR, UPPER RH
main68710-16030i199009-199208
main68710-16050i199208-199409
68720HINGE ASSY, FRONT DOOR, UPPER LH
main68720-16030i199009-199208
main68720-16050i199208-199409
68730HINGE ASSY, FRONT DOOR, LOWER RH
main68730-16030i199009-199208
main68730-16040i199210-199308
TAKAOKA
sub68730-16060
main68730-16060i199208-199210
main68730-16060i199210-199409
HAMURA
main68730-16060i199308-199409
TAKAOKA
68740HINGE ASSY, FRONT DOOR, LOWER LH
main68740-16030i199009-199208
main68740-16040i199210-199308
TAKAOKA
sub68740-16060
main68740-16060i199210-199409
HAMURA
main68740-16060i199208-199210
main68740-16060i199308-199409
TAKAOKA
69260HANDLE ASSY, FRONT DOOR WINDOW REGULATOR
main69260-16010-01i199009-199208
BLACK,TRIM2#
sub69260-16010
main69260-16010-04i199009-199208
GRAYISH BLUE,TRIM8#
sub69260-16010
main69260-16010-22i199208-199409
W(POWER WINDOW),BLACK,TRIM2#
sub69260-16010
main69260-16010-22i199208-199409
BLACK,TRIM2#
sub69260-16010
main69260-16010-W4i199208-199409
W(POWER WINDOW),EISEN BLUE,TRIM8#
sub69260-16010
main69260-16010-W4i199208-199409
EISEN BLUE,TRIM8#
sub69260-16010
69260BRING, SHAFT SNAP(FOR FRONT DOOR WINDOW REGULATOR HANDLE)
main90520-01002i199009-199409
sub90520-01274
69272PLATE, FRONT DOOR REGULATOR INSIDE HANDLE
main69268-16010i199212-199409
TAKAOKA
sub69268-20020
main69268-20020i199208-199212
W(POWER WINDOW)
sub69285-22010
main69268-20020i199212-199409
W(POWER WINDOW),W/O(TAKAOKA)
sub69285-22010
main69268-20020i199212-199409
W/O(TAKAOKA)
sub69285-22010
main69268-20020i199009-199208
sub69285-22010
69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH
main69801-16031i199208-199409
W(POWER WINDOW)
main69810-16080i199009-199208
main69810-16081i199208-199409
69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH
main69802-16031i199208-199409
W(POWER WINDOW)
main69820-16080i199009-199208
main69820-16081i199208-199409
9010506182
main90105-06182
9010508320
main90105-08320
9011906620
main90119-06620
9016850040
main90168-50040
9161140612
main91611-40612

14 parts on this diagram · 1 diagram in section
