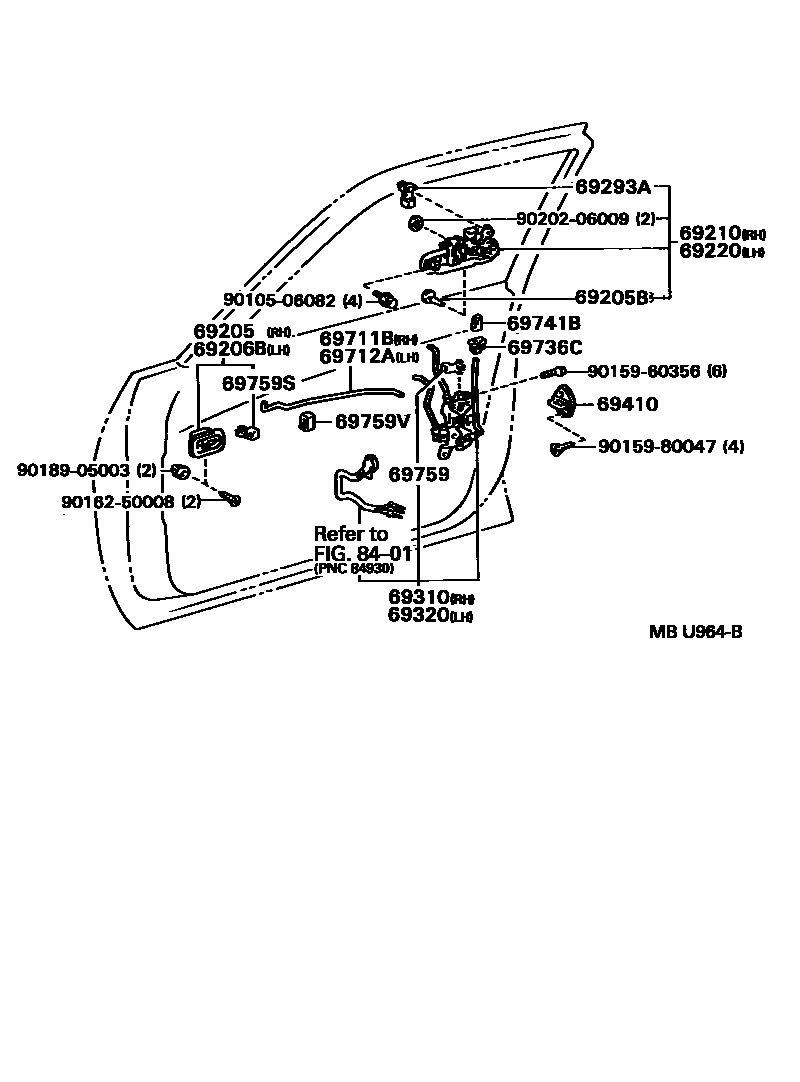

FRONT DOOR LOCK & HANDLE
69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
69205BCUSHION(FOR FRONT DOOR INSIDE HANDLE)
69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH
69293ASNAP, FRONT DOOR OUTSIDE HANDLE
LH
RH
69410PLATE ASSY, FRONT DOOR LOCK STRIKER
69711BLINK, FRONT DOOR LOCK REMOTE CONTROL, RH
69712ALINK, FRONT DOOR LOCK REMOTE CONTROL, LH
69741BKNOB, FRONT DOOR LOCK CONTROL
69759SNAP, DOOR LOCK CONTROL LINK, NO.1
LH,YELLOW
RH,BROWN
69759SSNAP, FRONT DOOR INSIDE HANDLE
LH
RH
69759VSILENCER, FRONT DOOR LOCK LINK
8401
9010506082
main90105-06082
9015960356
main90159-60356
9015980047
main90159-80047
9016250008
main90162-50008
9018905003
main90189-05003
9020206009
main90202-06009
23 parts on this diagram · 1 diagram in section
