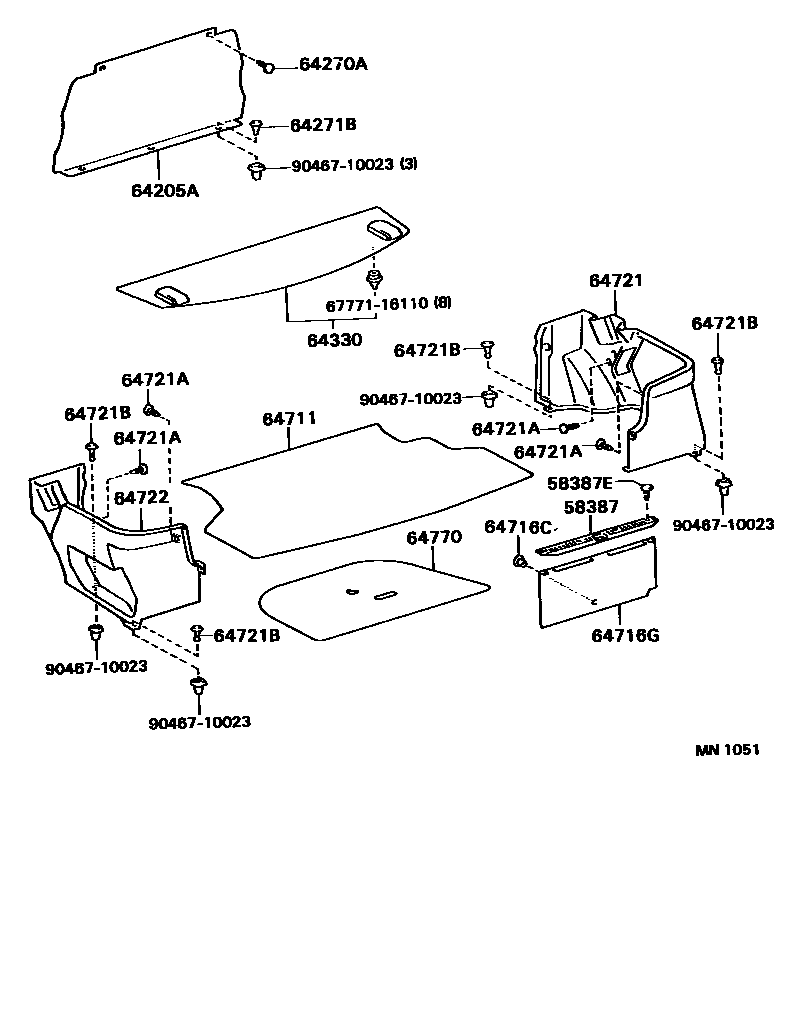

PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT
58387PLATE, REAR FLOOR FINISH
BLACK,TRIM2#,8#
58387ECLIP(FOR REAR FLOOR FINISH PLATE)
64205ACOVER SUB-ASSY, ROOM PARTITION
64270ACLIP(FOR ROOM PARTITION BOARD SETTING)
64271BCLIP(FOR ROOM PARTITION BOARD)
64330PANEL ASSY, PACKAGE TRAY TRIM
64711MAT, LUGGAGE COMPARTMENT FLOOR
64716CCLIP(FOR LUGGAGE COMPARTMENT TRIM REAR COVER)
64716GCOVER, LUGGAGE COMPARTMENT TRIM, REAR
64721COVER, LUGGAGE COMPARTMENT TRIM, INNER RH
64721ACLIP(FOR LUGGAGE COMPARTMENT TRIM INNER COVER)
64721BCOVER, LUGGAGE COMPARTMENT TRIM, NO.1
64722COVER, LUGGAGE COMPARTMENT TRIM, INNER LH
64770COVER ASSY, SPARE WHEEL
6777116110WEATHERSTRIP, BACK DOOR TRIM, RH
main67771-16110
9046710023
main90467-10023
16 parts on this diagram · 1 diagram in section
