SIDE MEMBER

58709ACARRIER SUB-ASSY, JACK

main58709-16030iEL40199009-199409

61021CPILLAR SUB-ASSY, FRONT BODY, RH

main61027-16010iEL40199009-199409

sub61027-16030

61022CPILLAR SUB-ASSY, FRONT BODY, LH

main61028-16010iEL40199009-199409

sub61028-16030

61023BPILLAR SUB-ASSY, FRONT BODY, INNER RH

main61023-16060iEL40..RHD199009-199409

sub61023-16061

sub90159-70003

main61023-16070iEL40..LHD199308-199409

sub61023-16130

sub90159-70003

main61023-16071iEL40..LHD199205-199308

sub61023-16072

sub90159-70003

61024BPILLAR SUB-ASSY, FRONT BODY, INNER LH

main61024-16070iEL40..RHD199009-199205

sub82819-16220

main61024-16071iEL40..RHD199205-199409

sub61024-16072

sub90159-70003

main61024-16080iEL40..LHD199009-199409

sub61024-16081

sub90159-70003

61035BRACKET SUB-ASSY, INSTRUMENT PANEL TO COWL SIDE, RH

main61035-16020iEL40..LHD199009-199409

61036BRACKET SUB-ASSY, INSTRUMENT PANEL TO COWL SIDE, LH

main61036-16020iEL40..RHD199009-199409

61108AREINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH

main61108-16900iEL40199009-199409

61109AREINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER LH

main61109-16900iEL40199009-199409

61113APANEL, SIDE, OUTER NO.2 RH

main61113-16010iEL40199009-199409

61114BPANEL, SIDE, OUTER NO.2 LH

main61114-16010iEL40199009-199409

61197BCOVER, FRONT PILLAR SERVICE HOLE, NO.2 RH

main61197-16010iEL40199009-199208

sub82711-2A630

main61197-16011iEL40199208-199409

61198BCOVER, FRONT PILLAR SERVICE HOLE, NO.2 LH

main61198-16010iEL40199009-199208

sub82711-2A630

main61198-16011iEL40199208-199409

61211RAIL, ROOF SIDE, OUTER RH

main61201-16110iEL40..RHD199009-199409

main61211-16100iEL40..LHD199009-199409

61212RAIL, ROOF SIDE, OUTER LH

main61202-16110iEL40..LHD199009-199409

main61212-16090iEL40..RHD199009-199409

61233ARAIL, ROOF SIDE, INNER NO.2 RH

main61233-16040iEL40199009-199409

61234ARAIL, ROOF SIDE, INNER NO.2 LH

main61234-16040iEL40199009-199409

61261ACHANNEL, ROOF DRIP SIDE, FRONT RH

main61263-16070iEL40199009-199409

61264ACHANNEL, ROOF DRIP SIDE, FRONT LH

main61264-16070iEL40199009-199409

61267ACHANNEL, ROOF DRIP SIDE, REAR RH

main61267-16110iEL40199009-199409

61268CHANNEL, ROOF DRIP SIDE, REAR LH

main61268-16110iEL40199009-199409

61303REINFORCE SUB-ASSY, CENTER BODY PILLAR, UPPER RH

main61303-16060iEL40199009-199409

61304REINFORCE SUB-ASSY, CENTER BODY PILLAR, UPPER LH

main61304-16060iEL40199009-199409

61305REINFORCE SUB-ASSY, CENTER BODY PILLAR, LOWER RH

main61305-16030iEL40199009-199206

main61305-16040iEL40199206-199409

61306REINFORCE SUB-ASSY, CENTER BODY PILLAR, LOWER LH

main61306-16030iEL40199009-199206

main61306-16040iEL40199206-199409

61345BPILLAR, CENTER BODY, INNER LOWER RH

main61345-16010iEL40199009-199208

main61345-16011iEL40199208-199409

61346BPILLAR, CENTER BODY, INNER LOWER LH

main61346-16010iEL40199009-199208

main61346-16011iEL40199208-199409

61423BREINFORCEMENT, ROCKER PANEL, NO.3 RH

main61423-16050iEL40199009-199409

61424BREINFORCEMENT, ROCKER PANEL, NO.3 LH

main61424-16050iEL40199009-199409

61611PANEL, QUARTER, RH

main61601-16820iEL40199009-199409

61612PANEL, QUARTER, LH

main61602-1G271iEL40..RHD199208-199409

main61602-1G280iEL40199009-199208

main61602-1G281iEL40..LHD199208-199409

61621CTROUGH, LUGGAGE COMPARTMENT OPENING, RH

main61621-16080iEL40199009-199409

61622CTROUGH, LUGGAGE COMPARTMENT OPENING, LH

main61622-16080iEL40199009-199409

61631APANEL, QUARTER WHEEL HOUSE, OUTER RH

main61631-16150iEL40199009-199409

61632APANEL, QUARTER WHEEL HOUSE, OUTER LH

main61632-16150iEL40199009-199409

61633APANEL, QUARTER WHEEL HOUSE, INNER RH

main61607-16260iEL40..RHD199009-199409

main61607-16300iEL40..LHD199009-199409

61634APANEL, QUARTER WHEEL HOUSE, INNER LH

main61608-16270iEL40..RHD199009-199409

main61608-16310iEL40..LHD199009-199409

61641CGUSSET, QUARTER WHEEL HOUSE, FRONT RH

main61641-16040iEL40199009-199409

61642CGUSSET, QUARTER WHEEL HOUSE, FRONT LH

main61642-16060iEL40199009-199409

61731BPANEL, ROOF SIDE, INNER RH

main61731-16903iEL40199009-199409

61732BPANEL, ROOF SIDE, INNER LH

main61732-16903iEL40199009-199409

61735CPANEL, ROOF SIDE, INNER REAR RH

main61735-16900iEL40199009-199409

61736CPANEL, ROOF SIDE, INNER REAR LH, NO.2

main61736-16900iEL40199009-199409

61737BPANEL, ROOF SIDE, INNER LOWER RH

main61737-16090iEL40199009-199409

61738BPANEL, ROOF SIDE, INNER LOWER LH

main61738-16090iEL40199009-199409

61824CPAD, NOISE SHUTTER, NO.1

main61824-16010×2iEL40199009-199409

61825APLATE, NOISE CONTROL, NO.2

main61825-12010×2iEL40199009-199409

61826APLATE, NOISE CONTROL, NO.3

main61826-16020×2iEL40199009-199409

62151BPAD, COWL SIDE SILENCER

main62151-12100×2iEL40199009-199409

63344FPAD, ROOF SILENCER, NO.4

main63344-16010×3iEL40..GEN199009-199409

63344GPAD, ROOF SILENCER, NO.4

main63344-16010×3iEL40..GEN199009-199409

66243CPROTECTOR, REAR BODY, NO.1

main66243-20010×2iEL40199009-199409

9011911024

main90119-11024

9017908102

main90179-08102

9033330004

main90333-30004

9095001327

main90950-01327

9095001362

main90950-01362

9095001398

main90950-01398

9095001637

main90950-01637

9095001771

main90950-01771

9166560820

main91665-60820

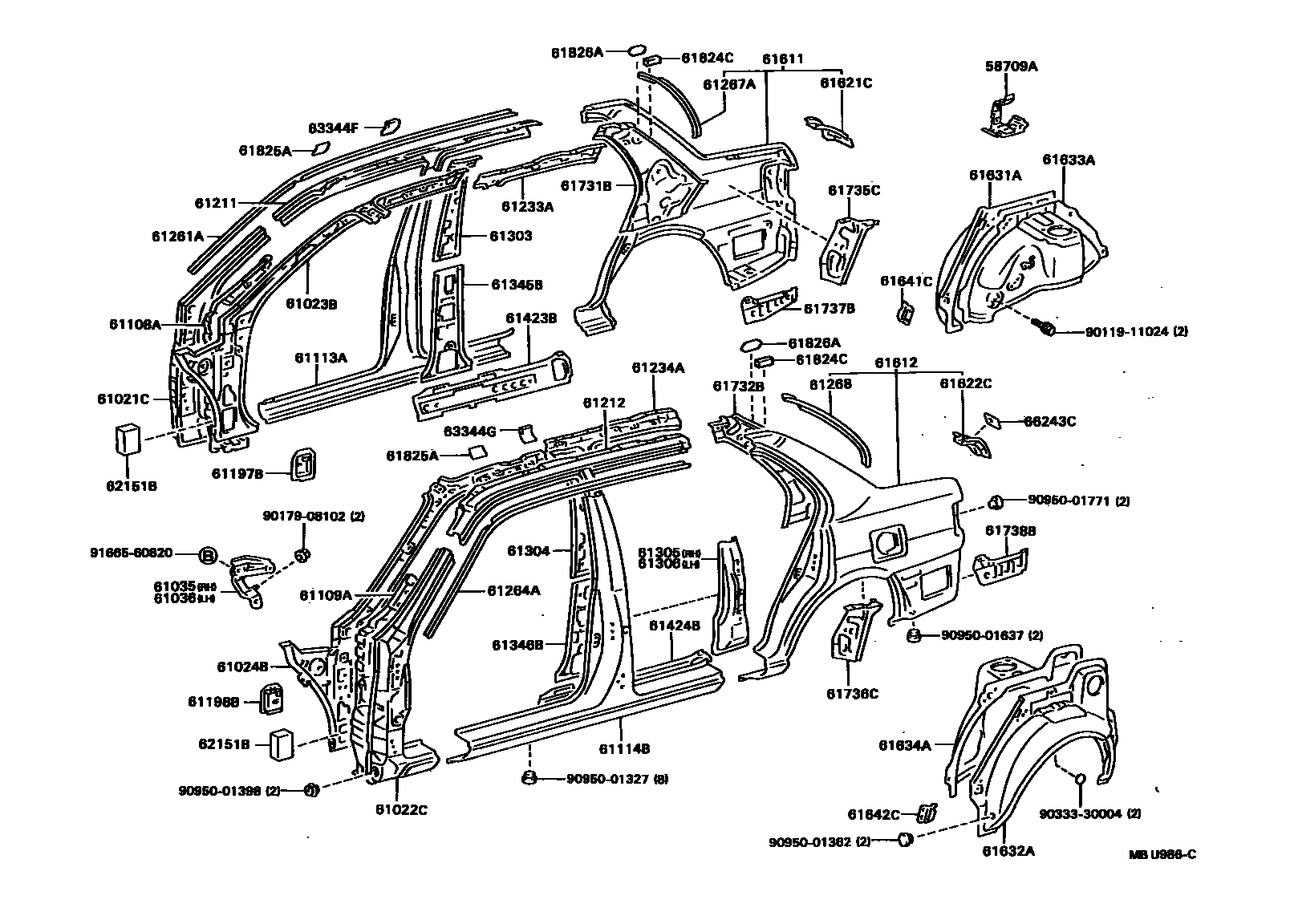

61 parts on this diagram · 1 diagram in section
