HOOD & FRONT FENDER

53155CSEAL, RADIATOR GRILLE, NO.1

main53155-16050iEL40199009-199409

53301HOOD SUB-ASSY

main53301-16120iEL40199009-199409

53301BCUSHION, HOOD BUMPER

main90541-15010iEL40199009-199409

53381SEAL, HOOD TO RADIATOR SUPPORT

main53381-16060iEL40199009-199409

53801FENDER SUB-ASSY, FRONT RH

main53801-16370iEL40199009-199409

53802FENDER SUB-ASSY, FRONT LH

main53802-16370iEL40199009-199409

53825APROTECTOR, FRONT FENDER, UPPER RH

main53825-16020iEL40199009-199409

sub53825-16030

53826APROTECTOR, FRONT FENDER, UPPER LH

main53826-16020iEL40199009-199409

sub53826-16030

53875ALINER, FRONT FENDER, RH

main53875-16050iEL40199009-199409

main53875-16070iEL40..GEN199208-199409

FOR COLOURED BUMPER

53876ALINER, FRONT FENDER, LH

main53876-16050iEL40199009-199409

main53876-16070iEL40..GEN199208-199409

FOR COLOURED BUMPER

53877ABRACKET, FRONT FENDER SPLASH SHIELD

main53877-16010iEL40199009-199409

53879ARETAINER, FRONT FENDER LINER

main53879-14020iEL40199009-199409

TYPE A

main53879-16010iEL40199009-199409

TYPE B

main53879-16030iEL40..GEN199208-199409

FOR COLOURED BUMPER,TYPE C

53882CSEAL, FRONT FENDER MAIN

main53882-16030iEL40199009-199409

9011906120

main90119-06120

9015960383

main90159-60383

9015960476

main90159-60476

9015960485

main90159-60485

9015960499

main90159-60499

9018905131

main90189-05131

9018906065

main90189-06065

9018906177

main90189-06177

9033330002

main90333-30002

9046707044

main90467-07044

904670707201

main90467-0707201

9046708011

main90467-08011

9046708044

main90467-08044

9095001646

main90950-01646

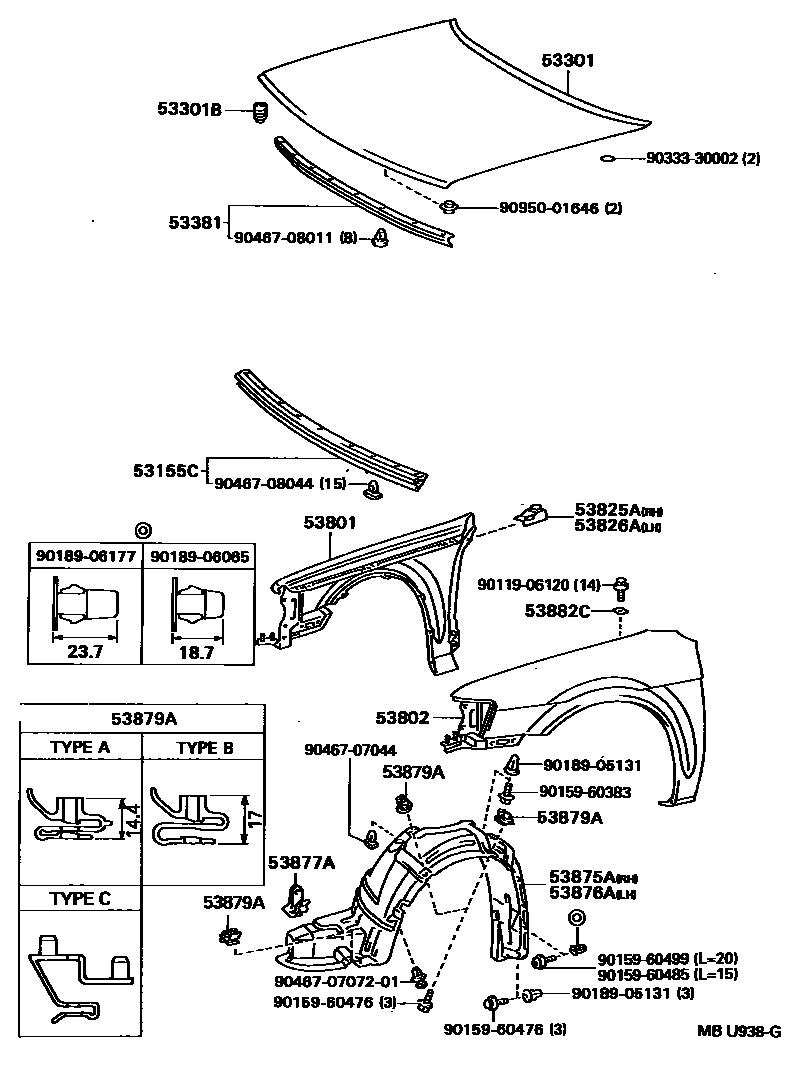

27 parts on this diagram · 1 diagram in section
