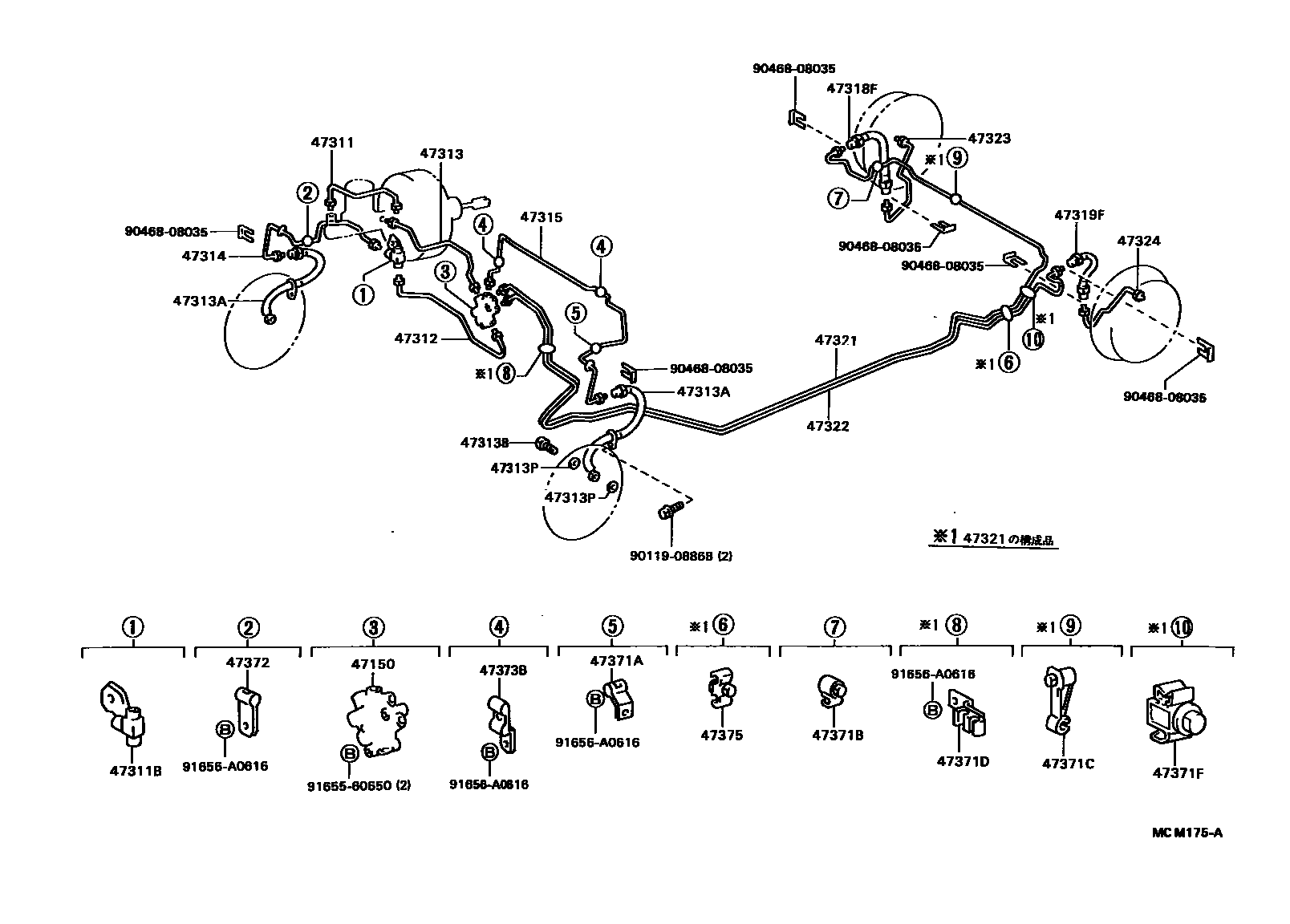

BRAKE TUBE & CLAMP

0001 1 0002 1

47150VALVE ASSY, PROPORTIONING

main47150-12050iEL40199009-199409

sub47150-12230

47311TUBE, FRONT BRAKE, NO.1

main47311-10180iEL40..RHD199009-199409

main47311-16110iEL40..LHD199009-199409

47311BWAY, NO.1(FOR FRONT BRAKE TUBE)

main90413-10004iEL40..LHD199009-199409

main90413-10259iEL40..RHD199009-199409

47312TUBE, FRONT BRAKE, NO.2

main47312-16090iEL40..LHD199009-199409

main47312-16120iEL40..RHD199009-199409

47313TUBE, FRONT BRAKE, NO.3

main47313-16110iEL40..LHD199009-199409

main47313-16140iEL40..RHD199009-199409

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90947-02635iEL40199104-199208

RH

main90947-02636iEL40199104-199208

LH

main90947-02644iEL40199009-199104

RH

main90947-02645iEL40199009-199104

LH

main90947-02718iEL40199208-199409

RH

sub90947-02813

main90947-02719iEL40199208-199409

LH

sub90947-02814

47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)

main90401-10015×2iEL40199009-199409

47313PGASKET(FOR FRONT FLEXIBLE HOSE)

main90430-10074×4iEL40199009-199409

47314TUBE, FRONT BRAKE, NO.4

main47314-16090iEL40..RHD199009-199409

main47314-16100iEL40..LHD199009-199409

47315TUBE, FRONT BRAKE, NO.5

main47315-16070iEL40..LHD199009-199409

main47315-16100iEL40..RHD199009-199409

47318FHOSE, FLEXIBLE(FOR REAR RH)

main90947-02603iEL40199009-199104

main90947-02637iEL40199104-199409

47319FHOSE, FLEXIBLE(FOR REAR LH)

main90947-02603iEL40199009-199104

main90947-02637iEL40199104-199409

47321TUBE, REAR BRAKE, NO.1

main47321-16070iEL40..RHD199009-199409

main47321-16080iEL40..LHD..GEN199009-199409

main47321-16100iEL40..GCC199308-199409

47322TUBE, REAR BRAKE, NO.2

main47322-16060iEL40..RHD199009-199409

main47322-16070iEL40..LHD..GEN199009-199409

main47322-16090iEL40..GCC199308-199409

47323TUBE, REAR BRAKE, NO.3

main47323-16140iEL40199009-199409

47324TUBE, REAR BRAKE, NO.4

main47324-16130iEL40199009-199409

47371ACLAMP, BRAKE TUBE, NO.1

main47371-10030×2iEL40..LHD199009-199409

main90461-06055iEL40..RHD199009-199409

47371BCLAMP, BRAKE TUBE, NO.6

main47371-10100iEL40199009-199409

47371CCLAMP, BRAKE TUBE, NO.7

main47371-10110iEL40199009-199409

47371DCLAMP, BRAKE TUBE, NO.8

main47371-30010iEL40..RHD199009-199409

main90949-01703iEL40..LHD199009-199409

47371FCLAMP, BRAKE TUBE, NO.10

main47371-16010iEL40..RHD;EL40..GCC199009-199409

main47371-16020iEL40..LHD199009-199409

47372CLAMP, BRAKE TUBE, NO.2

main47371-10140iEL40..LHD199009-199409

main90461-10738iEL40..RHD199009-199409

47373BCLAMP, BRAKE TUBE, NO.3

main90461-06902×2iEL40..LHD199009-199409

main90949-01207×2iEL40..RHD199009-199409

47375CLAMP, BRAKE TUBE, NO.5

main47371-10080iEL40199009-199409

9011908868

main90119-08868

9046808035

main90468-08035

9165560650

main91655-60650

91656A0616

main91656-A0616

28 parts on this diagram · 2 diagrams in section
