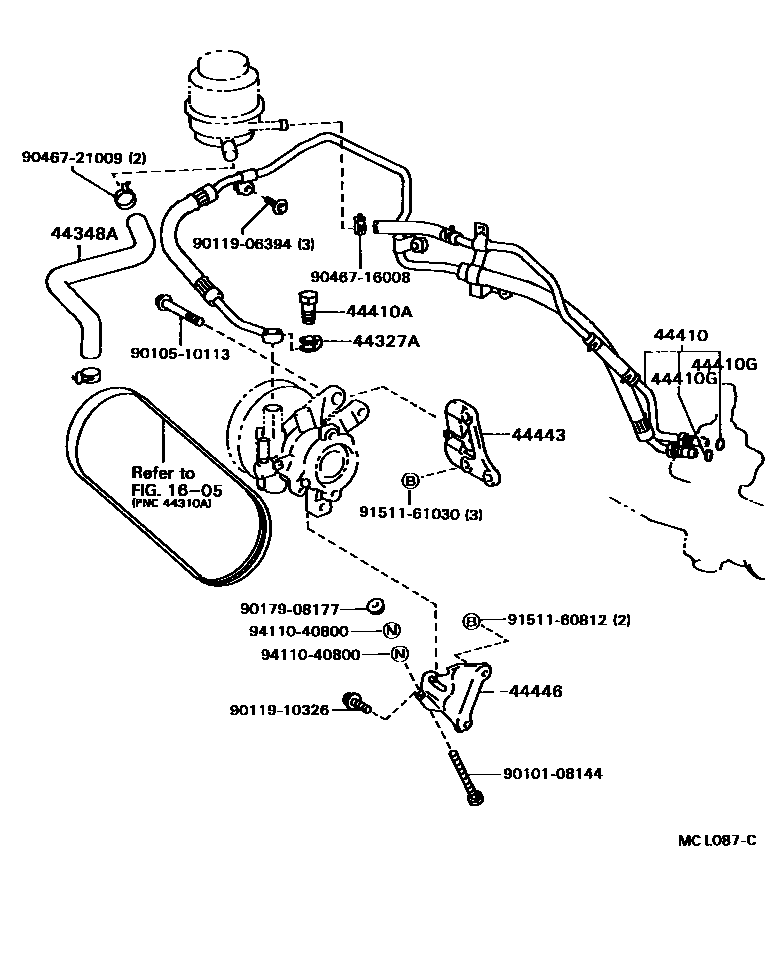

POWER STEERING TUBE

0001 1 0002 1

1605

44327AGASKET, PRESSURE PORT, NO.1

main44327-12010iEL40199009-199409

44348AHOSE, OIL RESERVOIR TO PUMP, NO.1

main44348-16080iEL40..RHD199009-199208

main44348-16081iEL40..RHD199208-199409

main44348-16100iEL40..LHD199009-199208

main44348-16140iEL40..LHD199208-199409

sub44348-16160

44410TUBE ASSY, PRESSURE FEED

main44410-16170iEL40..RHD199009-199110

main44410-16171iEL40..RHD199201-199409

main44410-16200iEL40..LHD199009-199104

main44410-16201iEL40..LHD199104-199208

main44410-16202iEL40..LHD199208-199405

main44410-16203iEL40..LHD199405-199409

44410ABOLT, UNION(FOR PRESSURE FEED TUBE)

main90401-16008iEL40199208-199212

main90401-16012iEL40199212-199409

main90401-16017iEL40199009-199208

44410GRING, O(FOR PRESSURE FEED TUBE)

main90301-07009×2iEL40..RHD199009-199409

44443BRACKET, PUMP

main44443-12070iEL40199009-199409

44446STRUT, ADJUSTING

main44446-16060iEL40199009-199012

main44446-16061iEL40199012-199409

9010108144

main90101-08144

9010510113

main90105-10113

9011906394

main90119-06394

9011910326

main90119-10326

9017908177

main90179-08177

9046716008

main90467-16008

9046721009

main90467-21009

9151160812

main91511-60812

9151161030

main91511-61030

9411040800

main94110-40800

18 parts on this diagram · 2 diagrams in section
